Operating Instructions ACU
79
X210B.7
Ground 10 V

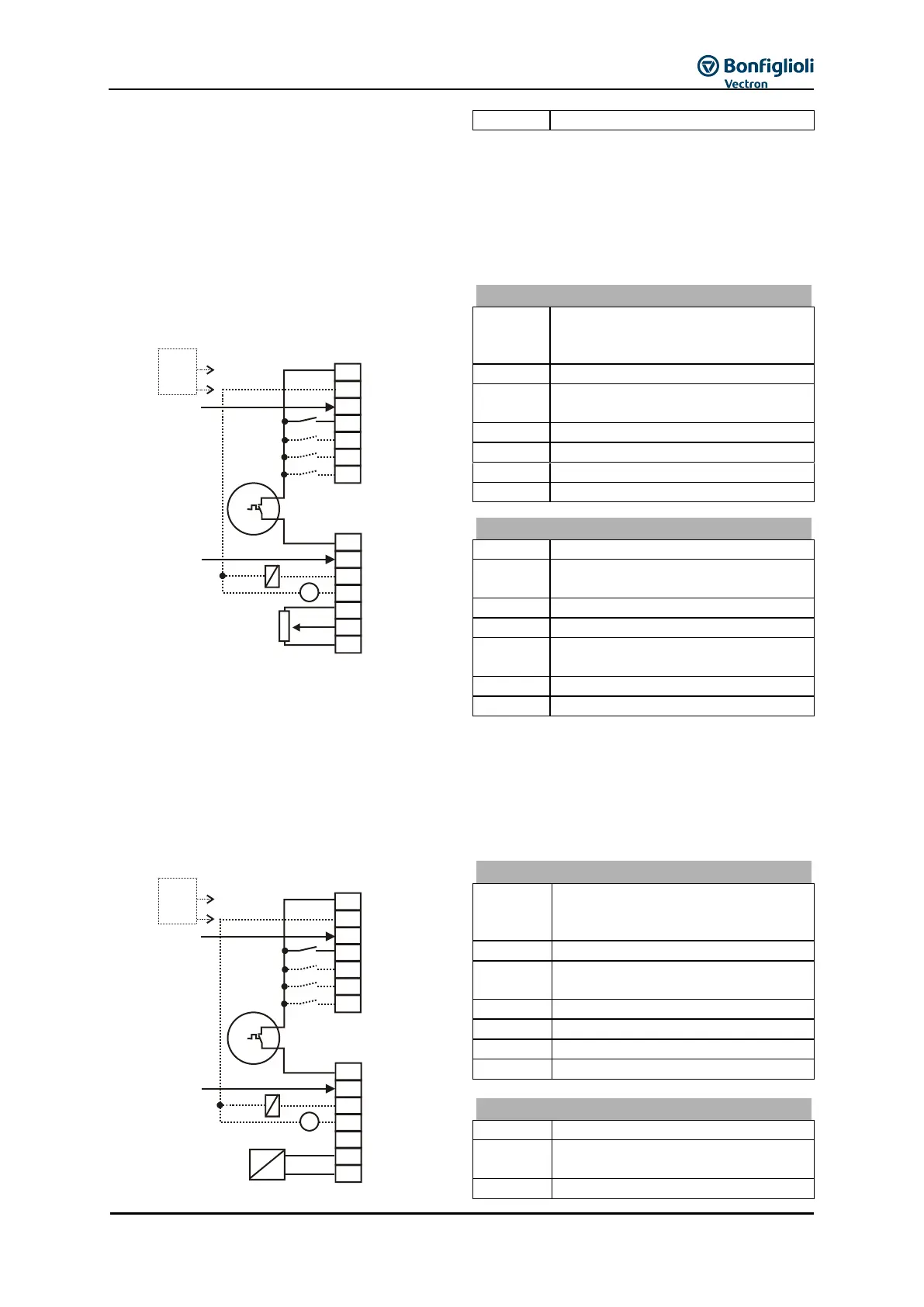

7.8.3 Configuration 410 – Sensorless Field-Oriented
Control
Configuration 410 contains the functions for sensorless, field-oriented control of an asynchronous
machine. The current motor speed is determined from the present currents and voltages in
combination with the machine parameters. Separate control of torque and flux-forming current
enables a high drive dynamism at a high load moment.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Start of clockwise operation
X210A.5
Start of anticlockwise operation
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10 V for reference
value potentiometer
X210B.6
Reference speed 0 ...+10 V
X210B.7
Ground 10 V
7.8.4 Configuration 411 –Sensorless Field-Oriented 󳮁 Control with
Technology Controller
Configuration 411 extends the functionality of the sensorless field-oriented control of Configuration
410 by a Technology Controller. The Technology Controller enables a control based on parameters
such as flow rate, pressure, filling level or speed.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shut-down
path of STO safety function)
X210A.4
Fixed Percent Change-Over 1
X210A.5
no function assigned
X210A.6
Data Set Change-Over 1
X210A.7
Data Set Change-Over 2
Control terminal X210B
X210B.1
Motor therm. contact
X210B.2
Digital input STOB (2nd shut-down
path of STO safety function)
X210B.3
Run Signal
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
STOA
STOB
24 V
ext.
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
-
+
STOA
STOB
24 V
ext.
