BONFIGLIOLI active cube 201 User Manual

198
Operating Instructions ACU
12/16

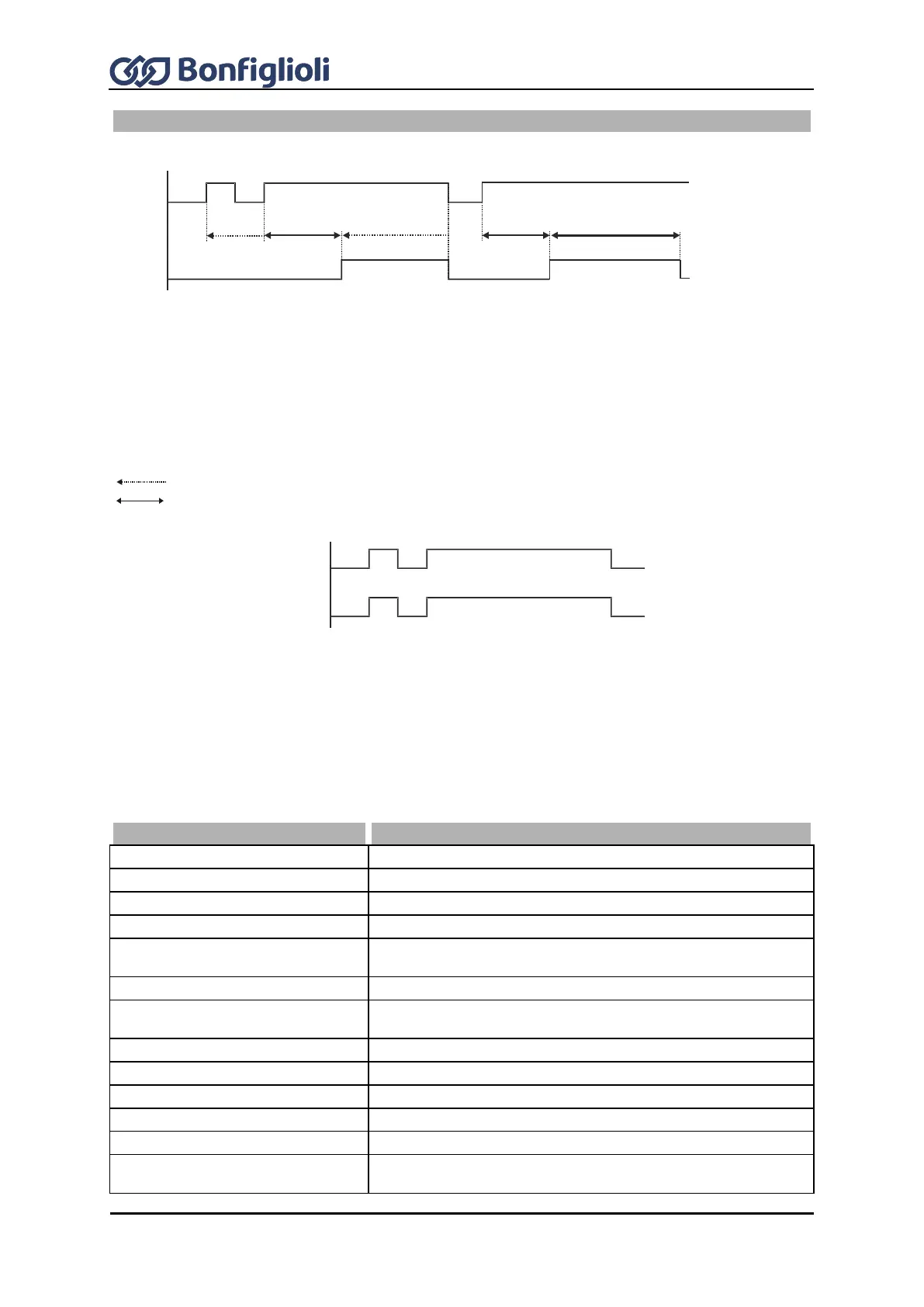

AND connection, positive edge
Parameter Operation Mode Timer 1 790 or Operation Mode Timer 2 793= 3
1)
As soon as the positive signal edge is received at the input, time 1 is started.
2)
If a positive signal edge is detected within the signal delay (Time 1), Time 1 will start again
(Retrigger).
3)
Once the Time 1 (signal delay) has elapsed, the output signal will be switched for Time 2 (signal
duration).
4)
Within the signal duration time 2, the output is switched off by the input signal (AND
connection).
5)
If the input signal is present during the whole signal duration (Time 2), the output signal
remains on in this time.
: Time not run out completely
: Time run out completely
Factory settings: Time 1 = 0, Time 2 = 0
In the default settings, the output signal will follow the input signal.
16.5.2 Comparator
With the help of software functions Comparator 1 and 2, various comparisons of actual values with
percentage-adjustable fixed values can be done.
The actual values to be compared can be selected from the following table with the parameters Op.
Mode Comparator 1 540 and Op. Mode Comparator 2 543.
If an extension module is connected, further operation modes are available.
Operation mode 540, 543
Function
0 -
off
Comparator is switched off.
1 -
Absolute current
R.m.s Current 211 > Rated Current 371v
2 -
Abs. Active Current
Active Current 214 > Rated Current 371.
3 -
Abs. Stator Frequency
Stator Frequency 210 > Maximum Frequency 419.
4 -
Abs. Actual Speed 1
Encoder 1 Speed 218 > max. speed (calculated from Maximum
Frequency 419 and No. of Pole Pairs 373) .
5 -
Abs. Actual Repetition Freq.
Repetition Frequency Input 252 > Maximum Frequency 419.
6 -
Winding Temperature,
Temp. Follow-Up
Winding Temperature 226 > Temperature 100 °C.
7 -
Abs. Actual Frequency
Actual Frequency 241 > Maximum Frequency 419.
9 -
DC-Link Voltage
DC-Link Voltage 222 > direct voltage 1000 V.
10 -
Abs. Isq
Isq 216 > Rated Current 371.
11 -
Abs Filtered Active Current
Active Current 214 > Rated Current 371.
12 -
Abs. Internal Ref. Frequency
Internal Reference Frequency 228 > Maximum Frequency 419.
13 -
Abs. Ref. Percentage Value
Reference Percentage Value 229 > Maximum Reference
Percentage 519.
Input
Output
Time 2Time 1Time 1 Time 1 Time 2
1) 2) 3) 4) 5)
Input
Output
