Operating Instructions ACU
27
4 Scope of supply
Due to modular hardware components, the frequency inverters can be integrated in the automation
concept easily. The scope of delivery described can be supplemented by optional components and
adapted to the customer-specific requirements. The plug-in type connection terminals enable a safe
function and quick and easy assembly.

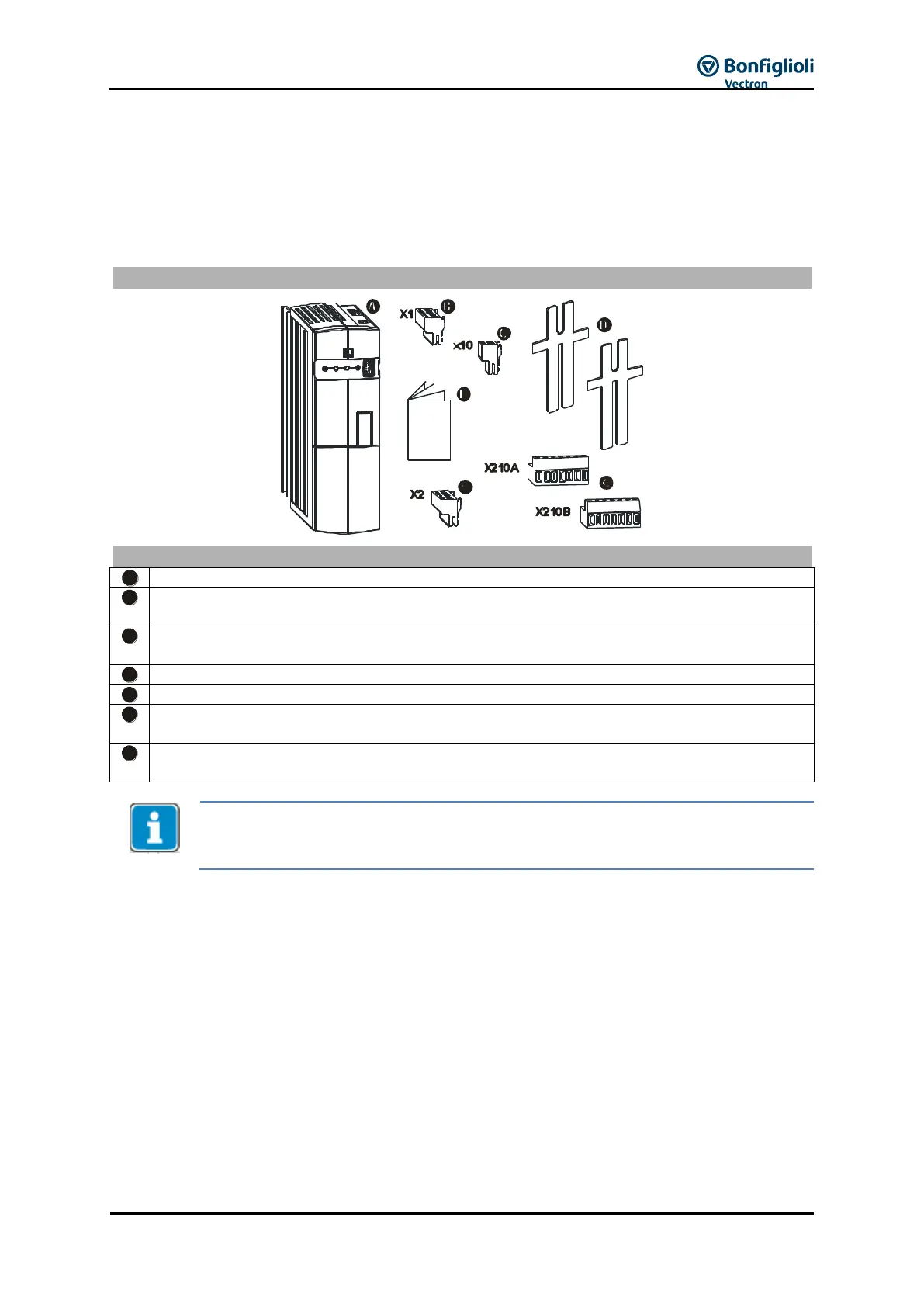

4.1 Sizes 1 and 2: ACU 201 (up to 3.0 kW) and 401 (up to 4.0 kW)
Scope of supply
Scope of supply
A
Frequency inverter
B
Terminal strip X1 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminals for mains connection and DC linking
C
Terminal strip X10 (Phoenix ZEC 1.5/3ST5.0)
Plug-in terminals for the relay output
D
Standard fixtures for vertical assembly
E
Quick Start Guide and Operating Instructions
F
Terminal strip X2 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminal for braking resistor and motor connection
G
Control terminals X210A / X210B (Wieland DST85 / RM3.5)
Plug-in terminal for connection of the control signals
Please check incoming goods for quality, quantity and nature without delay. Obvious
defects such as exterior damage of the packing and/or the unit must be notified to the
sender within seven days for insurance reasons.
