Operating Instructions ACU

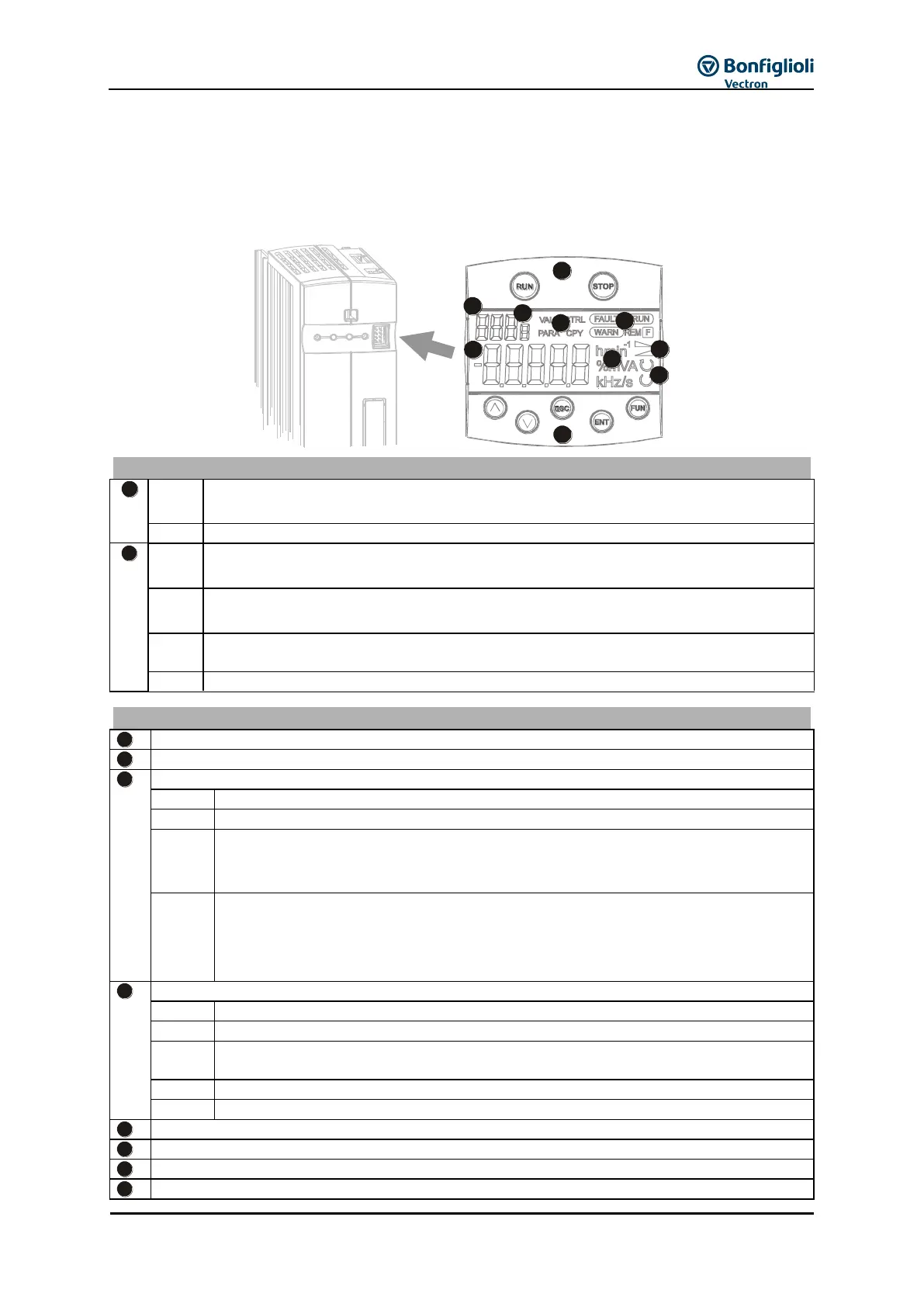

8 Control unit KP500
The optional KP500 control unit is a practical tool for controlling the frequency inverter and setting
and displaying the frequency inverter parameters.
The control unit is not absolutely necessary for the operation of the frequency inverter and can be
plugged on when required.
Used for starting the drive and opening the CTRL menu.
Press the RUN key to open the motor potentiometer function.
Used for opening the CTRL menu, stopping the drive and acknowledging faults
Navigate in menu structure and select parameters.
Increase or reduce parameter values.
Open parameters or switch within the menu structure.
Confirm the selected function or parameter.
Used for aborting parameters or switching back to the previous menu within the menu
structure. Cancel the function or reset parameter value.
Used for switching over the key function, access to special functions.
Three-digit 7-segment display to show the parameter number.
One-digit 7-segment display for display of the active data record, direction of rotation etc.
Display selected menu branch:
Select parameters and adjust parameter values.
Select a function for adjustment and/or display via the operating unit:
SEtUP Guided commissioning.
CtrL motor potentiometer and jog function.
Copy parameters via the control unit:
ALL All parameter values are copied.
Act Active parameter values are copied only.
FOr Control unit memory is formatted and deleted.
Status and operating messages:
Warning about a critical operating behavior.
Message indicating that the unit was switched off due to a fault.
Flashing: signalizes readiness for operation
Lighting signalizes operation and release of the power part
Active remote control via interface connection.
Function switch-over with the FUN key.
Five-digit 7-segment display for display of parameter value and sign.
Physical unit of parameter value displayed.
Active acceleration or deceleration ramp.
Current direction of rotation of the drive.
