Via parameter Technology Controller Release 58 , you can stop the technology controller. The
current P and D portions are kept at the last value before shutdown. The output value and the I
portion will be deleted when Technology Controller Release 58 is turned off.
Note the default link of parameter Start Clockwise 68 to the logic signal of the
technology controller:
Start Clockwise 68 = "13 – Technology Controller Start".
This link must not be changed. The technology controller becomes active with the
controller release at digital input S1IND/STOA.

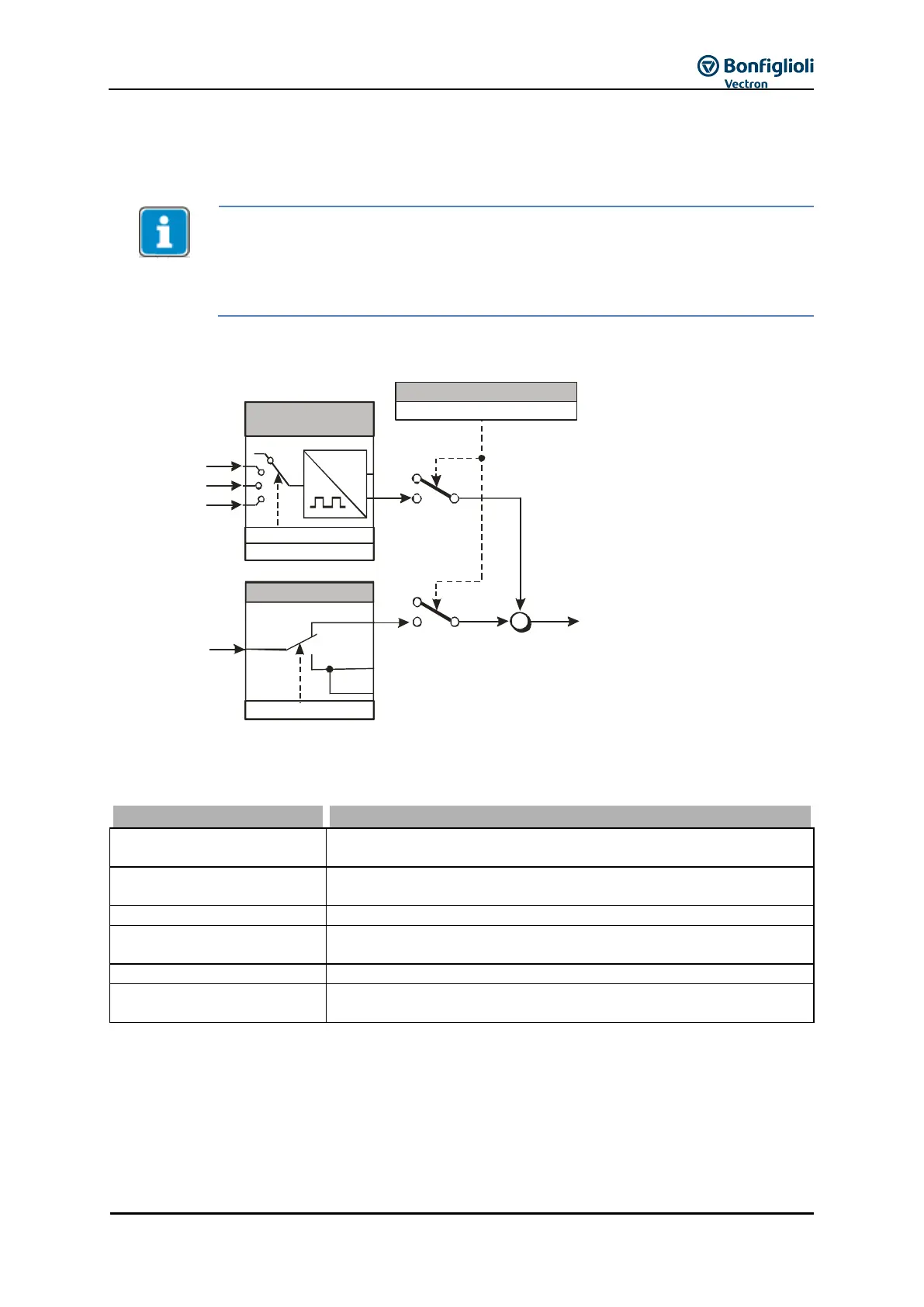

Structural image: Inputs for reference percentage source
+
0
1
F3
analog
digital
MFI1
0
1
MFI1A
Multifunctional Input
Operation mode 452
Repetition Frequency
Input
Operation mode 496
Devider 497
S2IND
S3IND
S6IND
0
%
f
Technology Controller
Actual Percentage Source 478
Istwerte:
Actual Percentage Value 230
The function selected via the parameter Operation Mode 440 defines the behavior of the
technology controller.
The technology controller is switched off, the reference value
specification is done via the reference percentage channel.
For pressure and volume flow control with linear operating behavior
and actual value monitoring
Liquid Level control at defined motor speed with actual value missing
Liquid Level control at defined motor speed with actual value missing
or high control deviation
Speed control with analog feedback of the actual speed
Indirect
Volume Flow Control
Volume flow control with square rooted actual value.
