12/16

Operating Instructions ACU

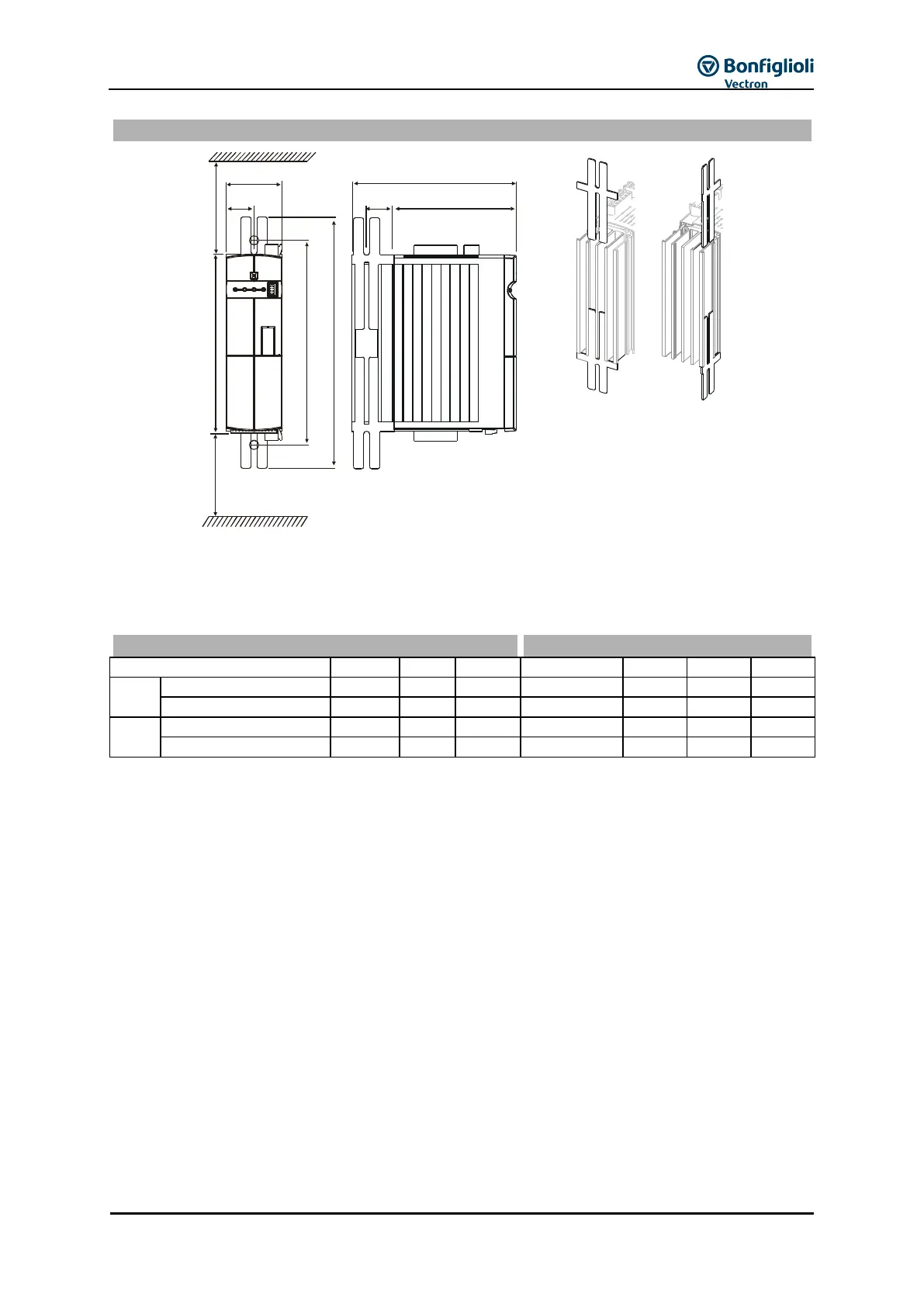

Standard installation

a a2

x 100 mm

For assembly the long side of the fixing plate is inserted in the heat sink and screwed to the assembly

panel.

The dimensions of the device and the installation dimensions are those of the standard device without

optional components and are given in millimeters.

Dimensions [mm]

Assembly dimensions [mm]

ACU

201

0.25 kW ... 1.1 kW

190

178

210 ... 230

260

133

1.5 kW ... 3.0 kW

250

178

270 ... 290

315

133

401

0.25 kW ... 1.5 kW

190

178

210 ... 230

260

133

1.85 kW ... 4.0 kW

250

178

270 ... 290

315

133
