Operating Instructions ACU

12/16

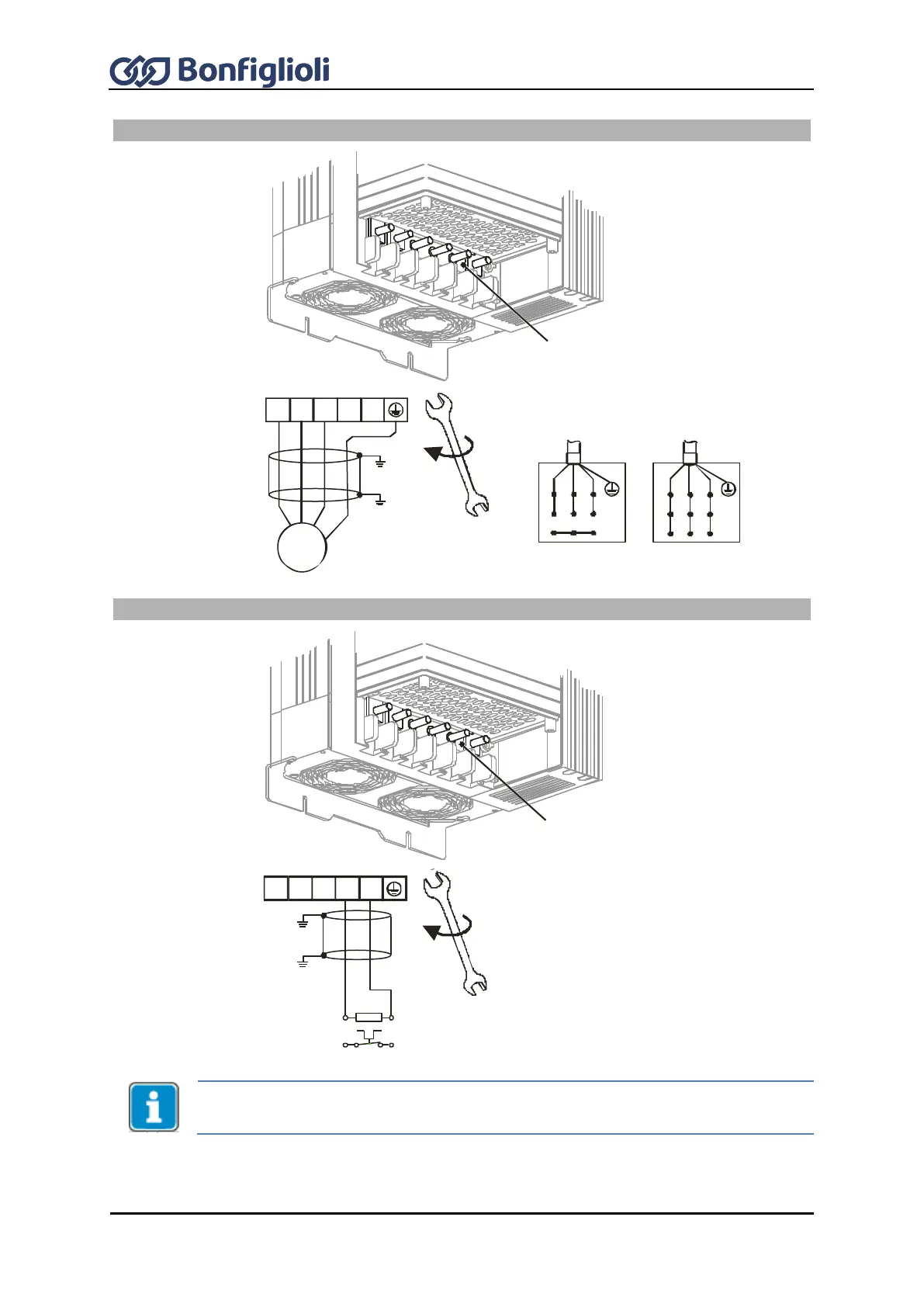

Motor connection ACU 401 (37.0 to 65.0 kW)

Star connection

V WU

Delta connection

V WU

wire cross section up to 70 mm

37.0 kW … 65.0 kW

threaded bolt M8x25

V WU

Rb2Rb1

8 Nm

70.8 lb-in

Connection of brake resistor with temperature switch

Wire cross section up to 70 mm

37.0 kW … 65.0 kW

threaded bolt M8x25

8 Nm

70.8 lb-in

Rb1 Rb2

V WU

Rb2Rb1

Optionally, devices of this size are available without brake chopper. These devices are

designed without connecting terminals for the braking resistor.

Default Chapter3
