40 en | IP communications Control Panels
2018.07 | 16 | F.01U.287.180 Installation Manual Bosch Security Systems, Inc.

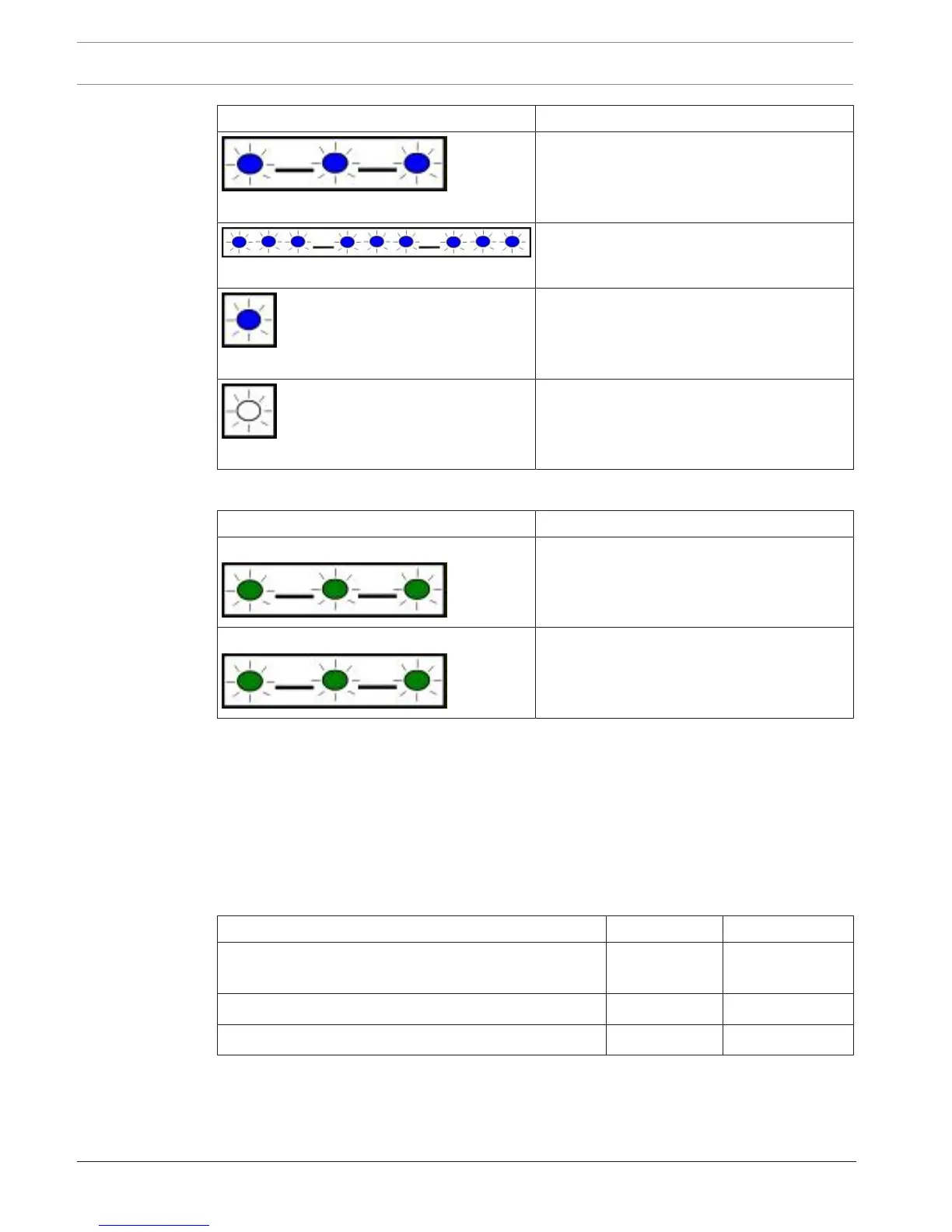

Flash pattern Indication
Flashes
once every 1 second
Normal state.
3 quick flashes every 1 second
Communication error state. Error on the bus
between the module and the control panel.
On Steady
Trouble state. Examine the other LEDs to
determine the trouble condition.
Off
LED trouble state. The module does not have
power, or the module failed. Check for
proper installation.
Tab.8.7: Heartbeat LED descriptions
Flash pattern Function
RX (Receive)
Flashing
Occurs every time a packet is received on-air.
TX (Transmit)
Flashing
Occurs every time a packet is transmitted on-
air.
Tab.8.8: RX and TX LED descriptions
Refer to the module’s Installation and Operation Guide for more information on the LEDs and
troubleshooting.
8.5 Compatible receivers for IP communication
When you configure the control panel to report in Modem4 format, the Conettix central
station receiver/gateway and the D6200 Receiver programming softwaremight require an
update. Review the following table to decide whether the Conettix needs an update.
Receiver/Gateway CPU version D6200 version
Conettix D6600 Communications Receiver/Gateway
(with D6641 line cards installed only)
01.10.00 2.10
Conettix D6100IPv6 Communications Receiver/Gateway 01.10.00 2.10
Conettix D6100i Communications Receiver/Gateway 01.10.00 2.10
When you configure the control panel to report in Contact ID format, the Conettix central
station receiver/gateway and the D6200 Receiver programming software might require an
update. Review the following table to decide whether the Conettix needs an update.
