Control Panels Off-board points | en 61
Bosch Security Systems, Inc. Installation Manual 2018.07 | 16 | F.01U.287.180

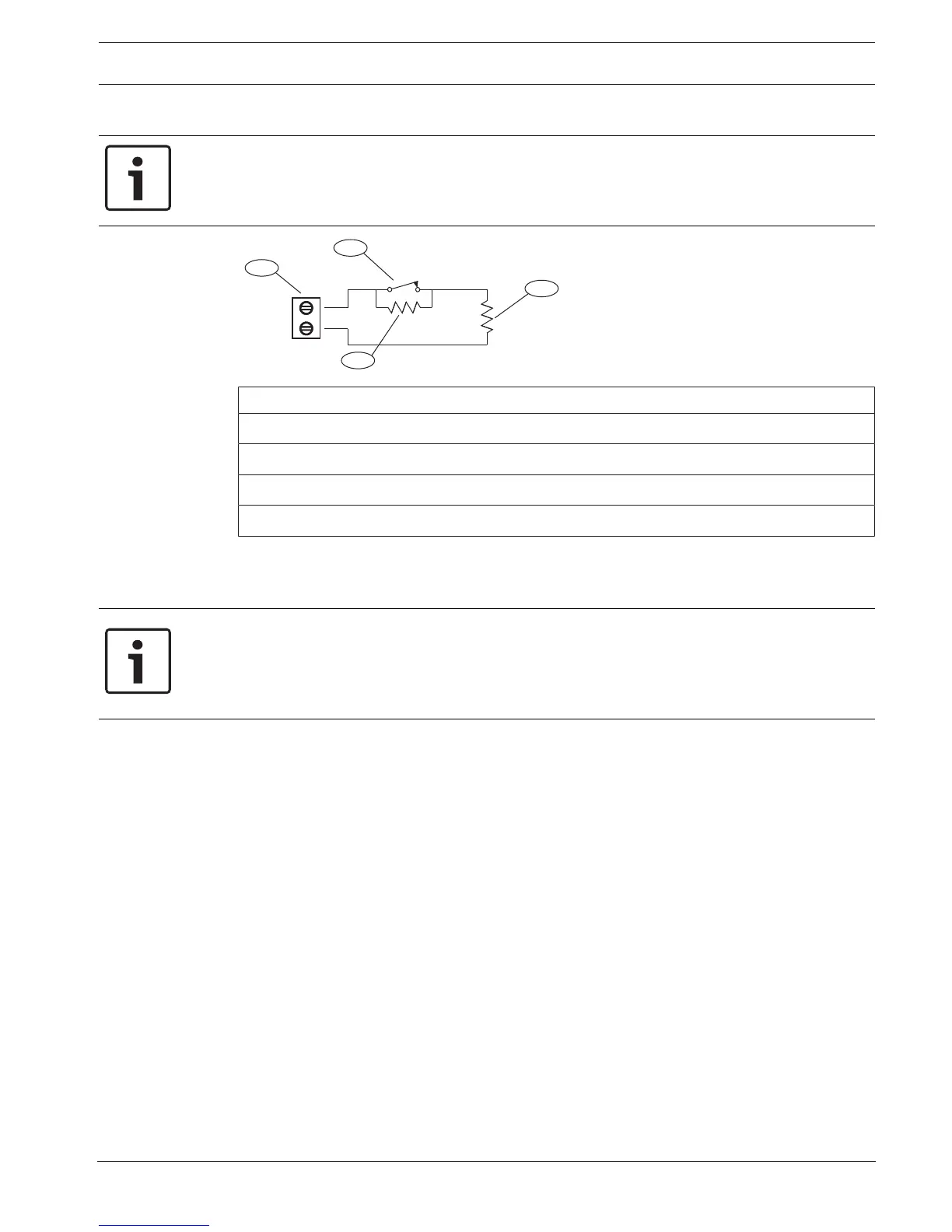

Dual EOL resistor circuit style
Notice!
EOL resistors
For the dual EOL resistor circuit style order ICP-1K22AWG-10, package of 10 1.0 kΩ EOL
resistors.
Callout - Description
1 - Point sensor loop terminals
2 - Normally closed device (contact)
3 - 1.0 kΩ resistor at device
4 - 1.0 kΩ resistor at EOL (end-of-line)
13.2 Off-board points test
Use the Service Walk Test to ensure that all off-board points operate properly.
Notice!
Walk test does not show extra points
If you set the address switches on off-board point modules, the control panel might create
missing and extra points. If the address switches on two or more modules are set to the same
address, the points associated with that address do not test correctly.
13.3 Extra Point events
The control panel generates Extra Point events when it detects a fault for an assigned point
with its Point Profile set to 0 (disabled).
A wired point is considered assigned when its Point Source is set to Octo-input (SDI2).
An SDI2 Wireless point is considered assigned when its Point Source is Wireless and it has an
RFID assigned.
On-board points cannot produce Extra Point events. Points that are Service Bypassed cannot
produce Extra Point events.
13.4 Missing point conditions
Point programming and the state of the area that the point is in sets how the control panel
operates. For example:
– An interior motion detector point is missing and the area is turned off (disarmed). The
control panel makes a Missing Trouble event.
– An interior motion detector point is missing and the area is turned on (armed). The
control panel makes a Missing Alarm event.
Non-fire, 24-hour points always make a Missing Alarm event. Fire points always make a Missing
Fire Trouble event.
