Control Panels System wiring diagrams | en 75
Bosch Security Systems, Inc. Installation Manual 2018.07 | 16 | F.01U.287.180

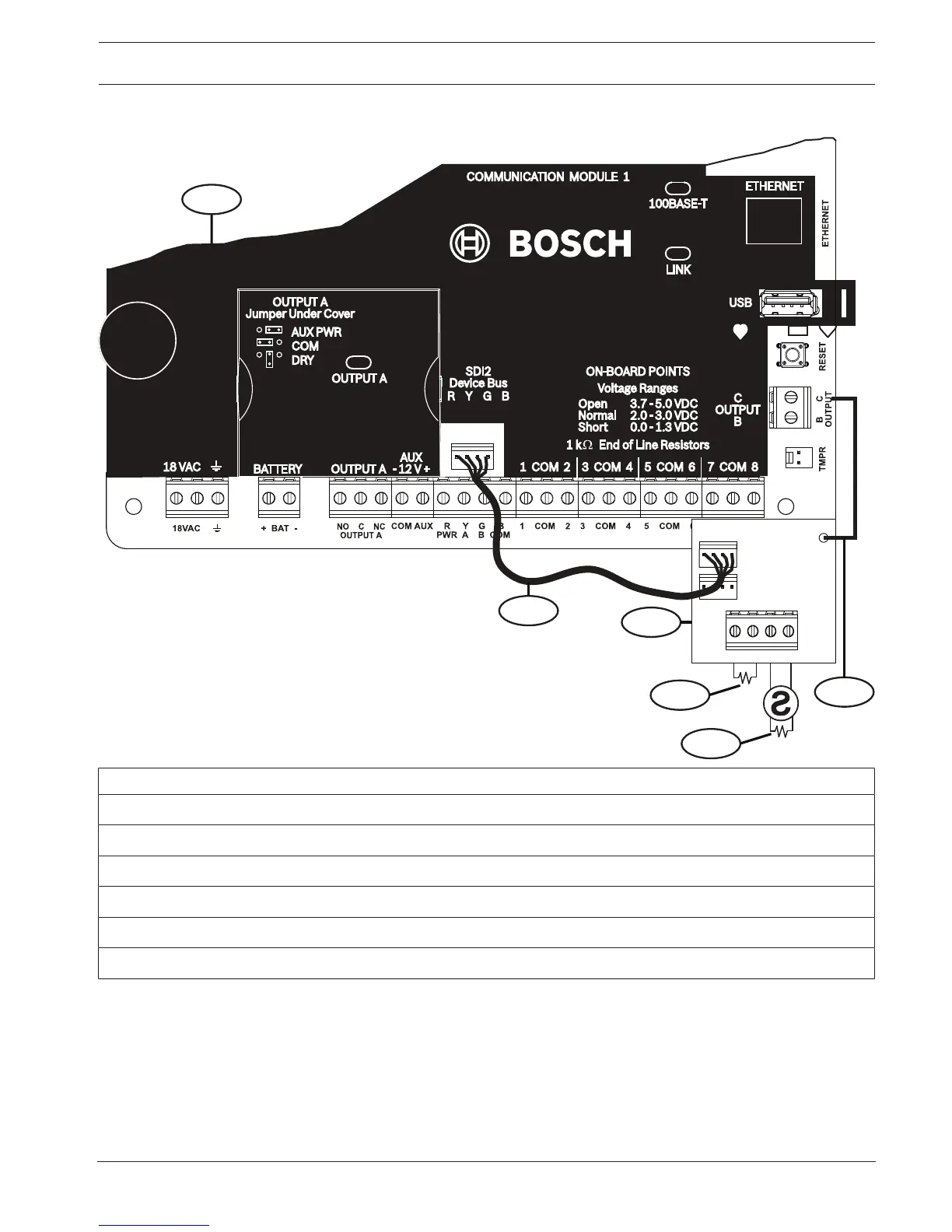

18.3 2-wire smoke wiring (B201)
o
SMOKE
RESET
SMOKE
B PWR
PASS-THRU
A COM
A COM B
1
2
3
5
4
6
Callout Description
1 Control panel
2 Interconnect wiring cable
3 B201
4 EOL resistor
5 1.8 kΩ EOL resistor (P/N: F01U009011) (included with the module)
6 Smoke reset wire
