Bosch B4512 Installation Manual

Control Panels Keypad Installer menu | en 95
Bosch Security Systems, Inc. Installation Manual 2018.07 | 16 | F.01U.287.180
7 COM 8
USB
ETHERNET
100BASE-T
LINK
1 k End of Line Resistors
Voltage Ranges
ON-BOARD POINTS
3.7 - 5.0 VDC
2.0 - 3.0 VDC
0.0 - 1.3 VDC
Open
Normal
Short
3 COM 4 5 COM 6
C
OUTPUT
B
TMPR
7 COM 83 COM 4 5 COM 6
RESET
ETHERNET
B C
OUTPUT
RESET

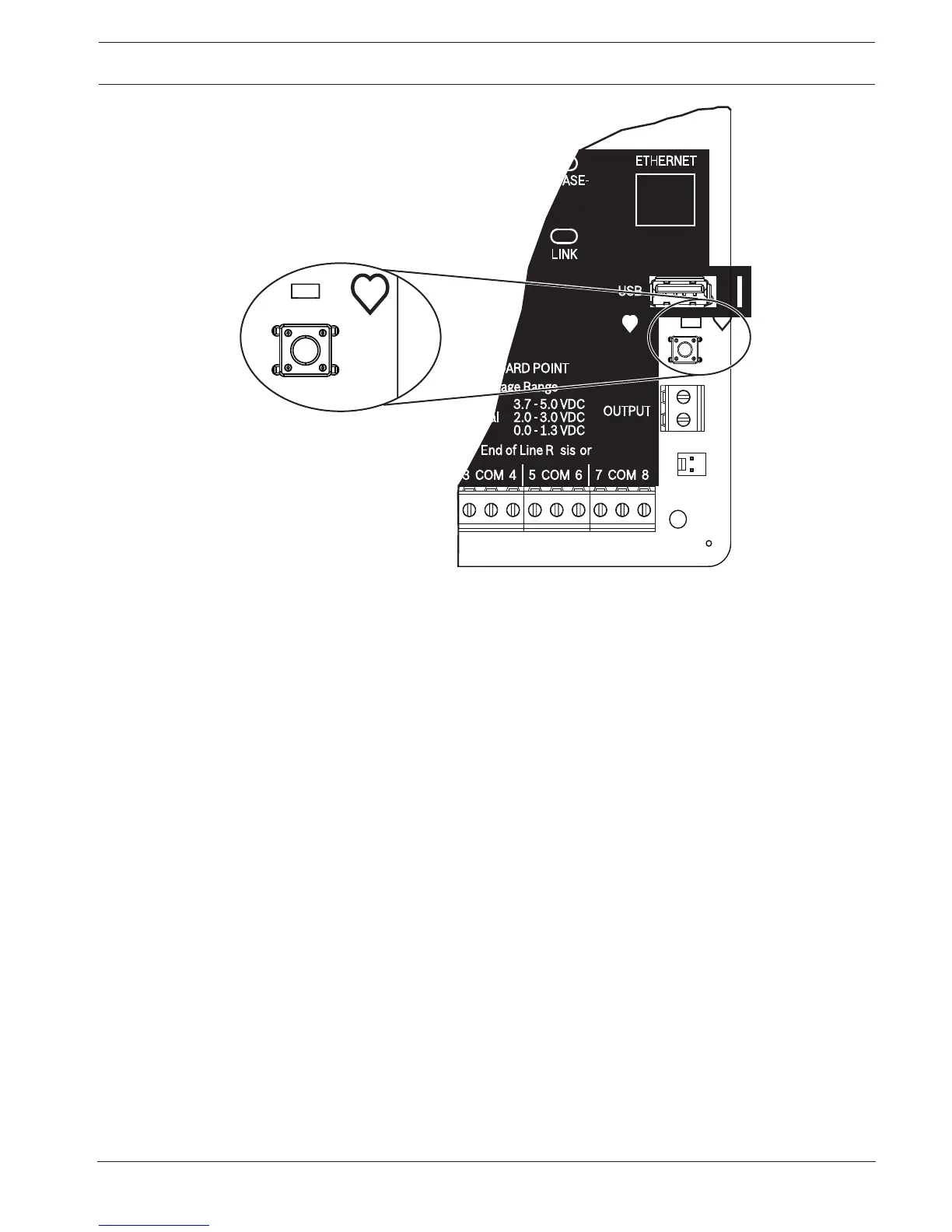

Exiting SERVICE MODE and returning to normal operation (slow pulsing Heartbeat LED)
4 Press and hold the control panel RESET button for approximately 5 seconds until the
Heartbeat LED turns off.
The control panel resets.
Conventions for this section
This guide to the keypad Installer menu provides instructions for using the keypad, based on
the following conventions:
– All instructions access the Installer menu from the Main Menu (Installer) option, not
while in SERVICE MODE.
– This section covers all compatible keypads. It provides specific steps for each keypad
style, when applicable.
– For simplicity, the keypad Installer menu tree and instructions combine the two-line
keypad number selections with the text and graphic steps of other keypads. For example,
this section does not have the B920 instructions of Press [2] for enhanced comm
parameters, and for the B930 instructions of Press [2] Enhanced Comm Parms. It has the
following more general instructions for all keypads: Press [2] Enhanced Comm Parms.
– Go to [1] Programming Menu > [1] Reporting > [2] Network > [2] Enhanced Comm
Parms.

Bosch B4512 Specifications

General

Control Panel Type	Hybrid
Wired Zones	8
Outputs	2
Programmable Outputs	2
Onboard Ethernet	Yes
Cellular Communication	Optional
Series	B Series
Partitions	2
Type	Control Panel
Model	B4512
Manufacturer	Bosch
Input Voltage	16.5 VAC
Communication Formats	Contact ID, SIA
Power Supply	16.5 VAC
Backup Battery	12 V, 7 Ah
Operating Temperature	0°C to +50°C
Weight	1.5 kg
Compatibility	Bosch accessories
