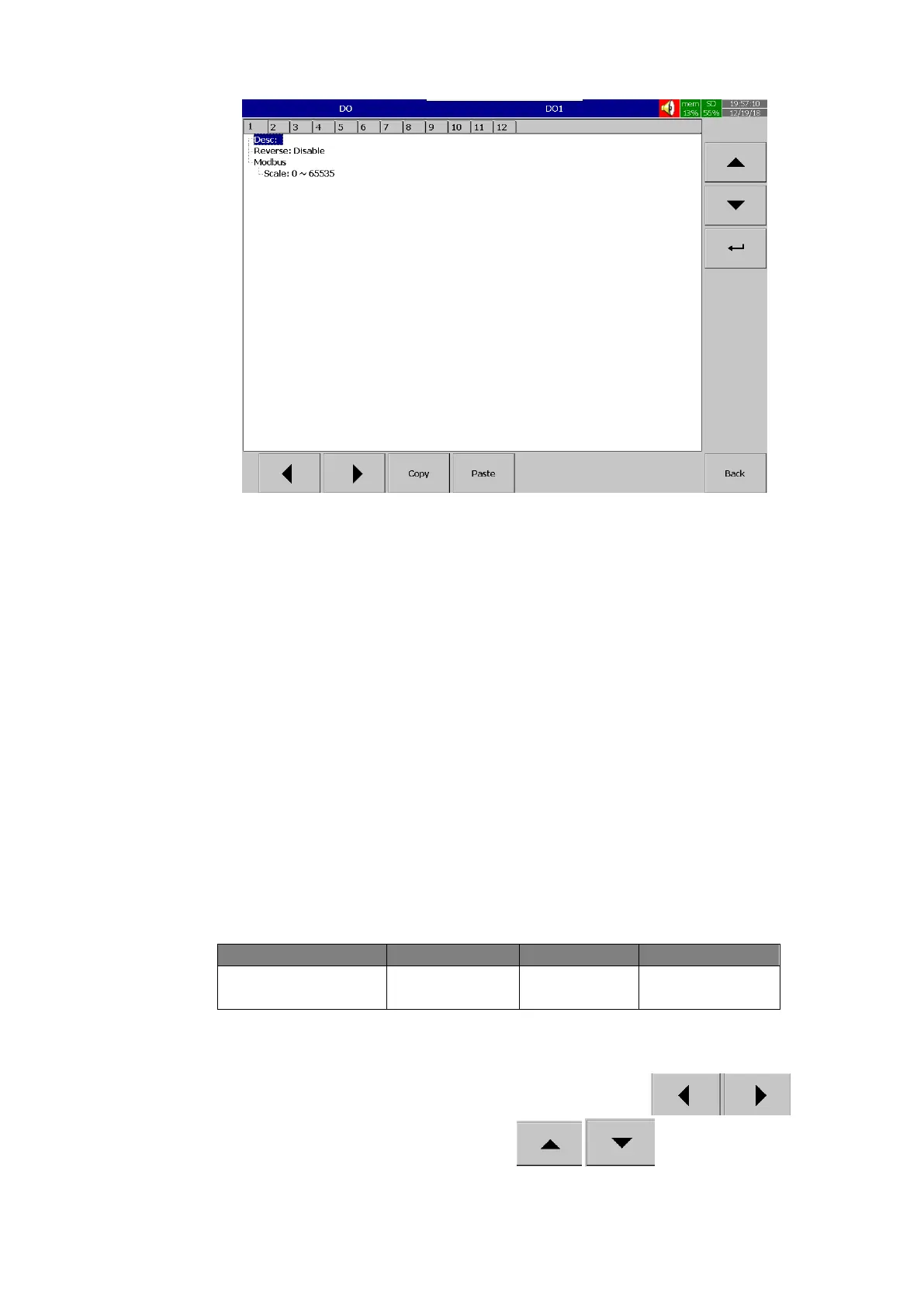

Copy: copy the channel configuration from one channel to another channel.
Paste: Paste the copied configuration to the channel.
Press Copy key in the source channel and press paste key in the destination channel.
5.1.5.1 Desc
The description about a specific channel on the recorder.
5.1.5.2 Reverse
The Reverse option is Enable or Disable. If it is enabled then the output state of DO will be
reversed.
For example, when reverse is disabled, the relay output is Normally Open (NO). If the
application requires that the output should be Normally Closed (NC) relay at Recorder, then enable
Reverse for the selected Digital Output. The Relay output will be normally closed.
5.1.6 External
The external channel is used to read the data from external devices with Modbus
communication. In this the recorder will be act as a Master and read the data from Modbus slaves. The data
will be logged and displayed by using External channels. The no of available External channels will be
varied depends on the recorder model. The available External channel on the different recorder models as
below.
PR Recorder
PR10
PR20
PR30
No of External
Channels
24
48
96
After entering the Configuration menu, in the Channel, select External then Press the “Enter”
soft key to get into External Channel configuration menu. It displays the External channel External 1 as the
first External channel configuration page. Press directional navigation keys at the
bottom to select other channels. Press directional keys on the right hand side to select
