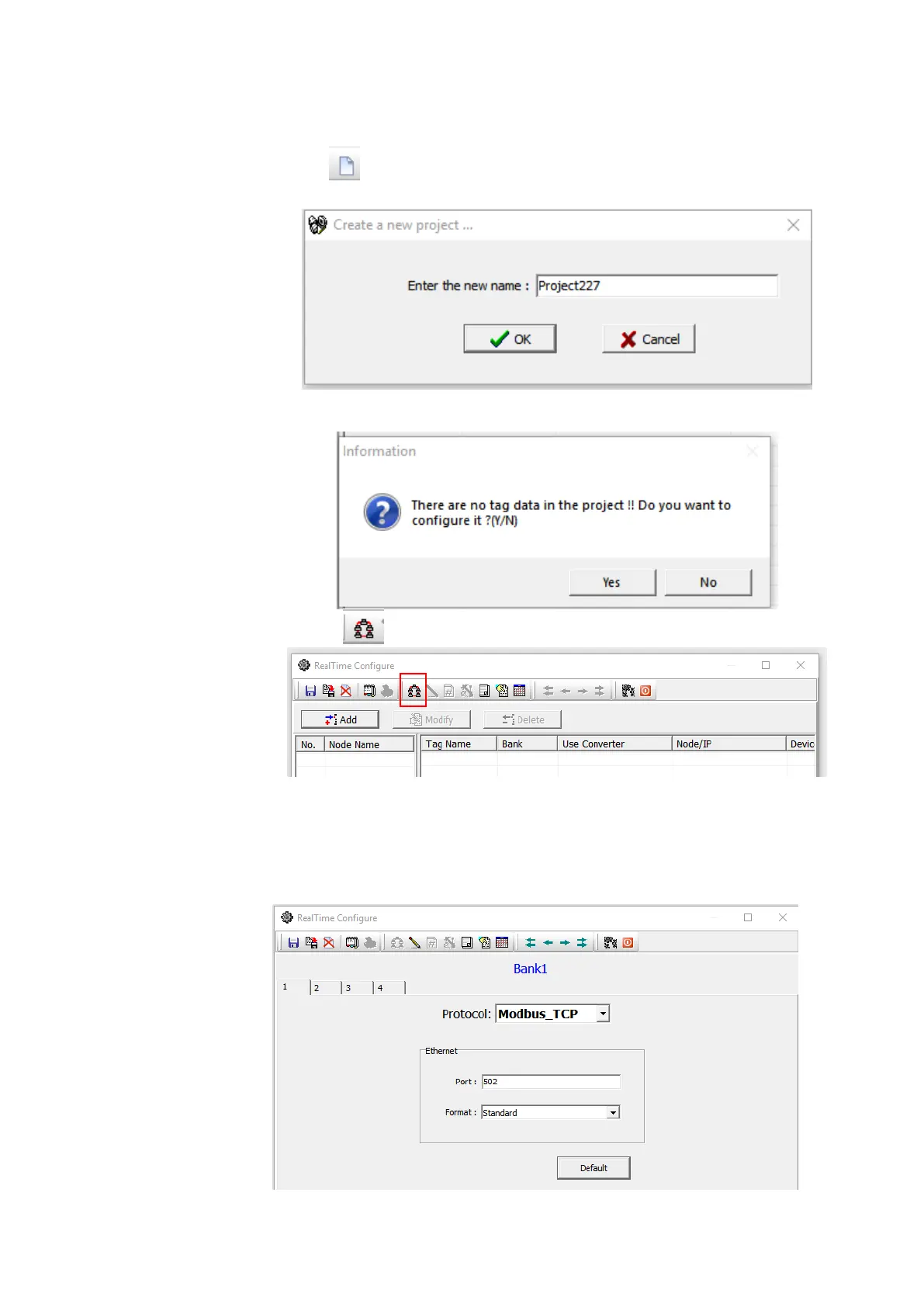

6.2.3.4 Create a New Project
To create a new project follow the below steps.
1. Click the icon or select New from File Menu.
2. Set a name for the project
3. The Software requests the user for auto configuration. Press No to configure the
communication Banks.
4. Click Bank icon to configure communication bank.
5. There are 4 different banks are available for the user to configure. It will allow the software to
read the data from different communication networks like RS232, RS485, and Ethernet.
5.1. If the device is connected to PC via Ethernet port then configure the bank with Protocol
as Modbus_TCP and port no as 502.
