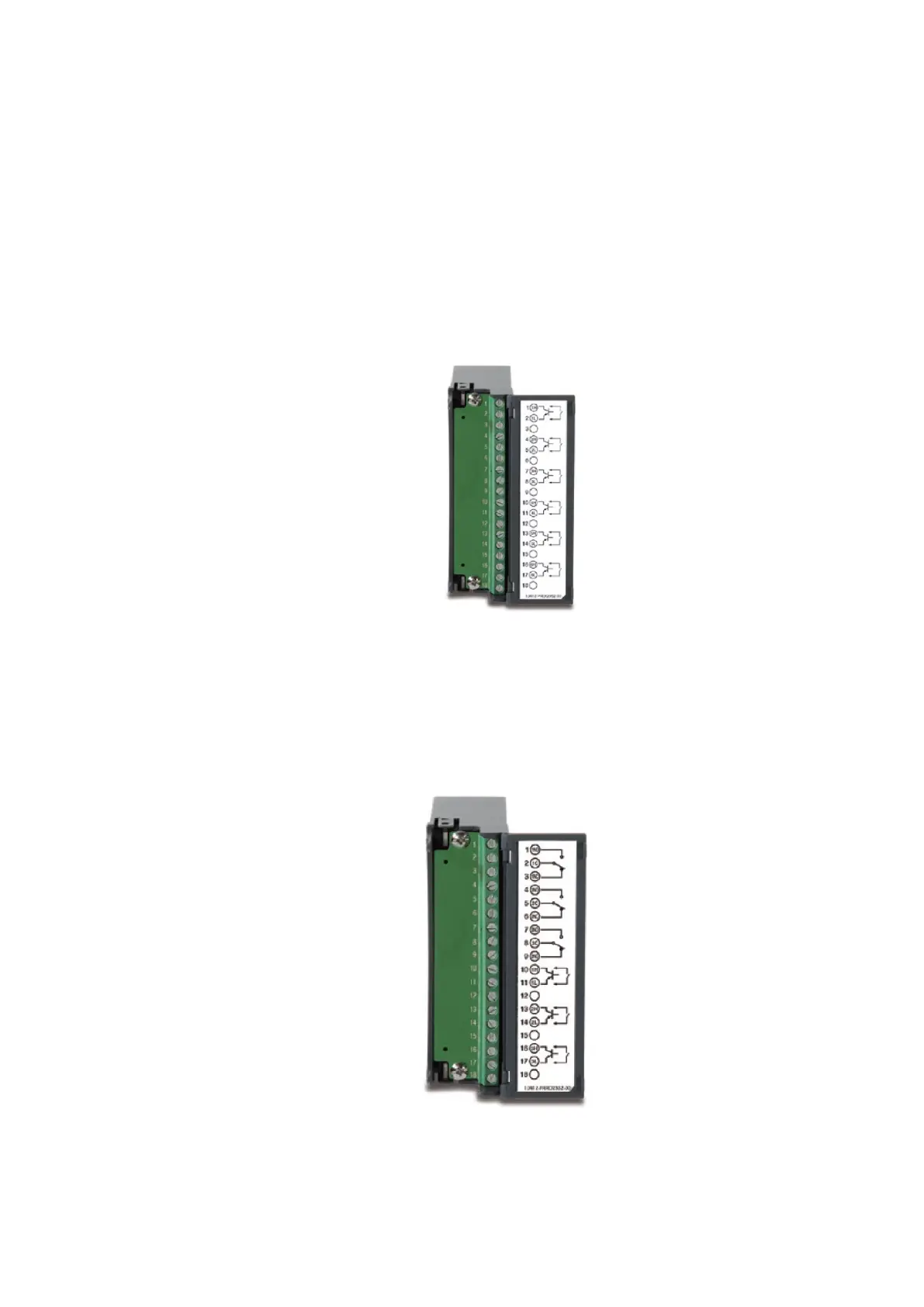

2.3.3 Digital Input card (DI206)
This card includes 6 channels of event inputs. As above, plug the card into rear slot and power
on the recorder. The recorder will automatically detect it, and then display the input type and its location in a
specific slot in System Information mode while doing the configuration.
The configuration Menu can be reached by pressing Menu and then pressing more and then
pressing Config key. It will display a tree type configuration layout for easy user configuration. By using
Up/Down Key and Enter Key, DI configuration window can be reached. In this window the user can
configure the DI parameters. The user can select the desired input type and other parameters for digital
input in this window. The item "Type" is for the user to decide if this channel will have a logic level or Pulse
Counter input. If you select Pulse Counter, the item "Frequency" will appear for you to select input
frequency (100Hz). The item "Events" can be added to do further control.
2.3.4 Combination Digital Input and Output card (RD233)
This card includes 3 relays rated 5 Amp/240VAC each and 3 Channels of Digital Inputs. As
above, plug the card into rear slot and power on the recorder. The recorder will automatically detect it, and
then display the input type and the output type on its location in a specific slot in System Information mode
while doing the configuration. The first 3 channels are for relays (Terminal 1 to 9) and last 3 channels are for
Digital inputs (Terminals 10 to 18). The setup is similar to relay output card and digital input card.
