Copy: copy the channel configuration from one channel to another channel.
Paste: Paste the copied configuration to the channel.
Press Copy key in the source channel and press paste key in the destination channel.
5.1.1.1.1 Name
Enables the User to define the name for each channel with a maximum of 18 characters.

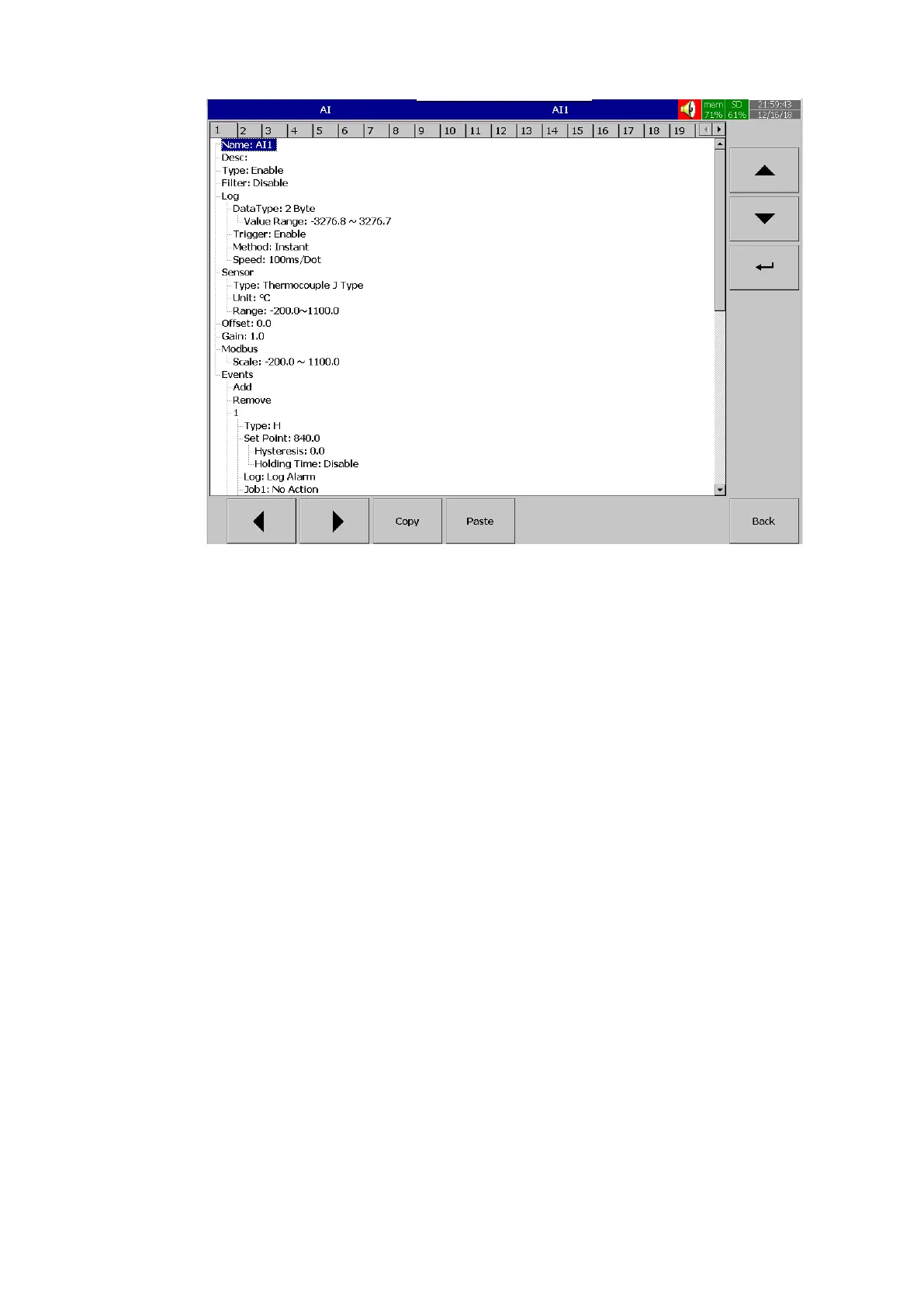

Select “Name”, then Press “Enter”, soft key, a keyboard with several keys will appear. Press “Shift” to
select special characters. Press “Caps” to select capital letters. Press soft key “OK” after entering a new
channel name.
5.1.1.2 Desc
The description about a specific channel on the recorder.
5.1.1.3 Type
Option available to enable or disable the channel
5.1.1.4 Filter
It is to reduce the noise of input signal before logging. The filter can be set from 1 second to 16
seconds. It is a soft filter available to reduce fast variation of analog inputs. There are two types of filters
available for the users to select. They are moving average and difference.
5.1.1.4.1 Moving Average
This will log average of the values sampled in the configured Buffer Time.
For example, if the filter value is set as 5 sec for AI1, it means all the samples collected in the
last 5 sec shall be averaged, and the averaged value is available to record as per Log method.
