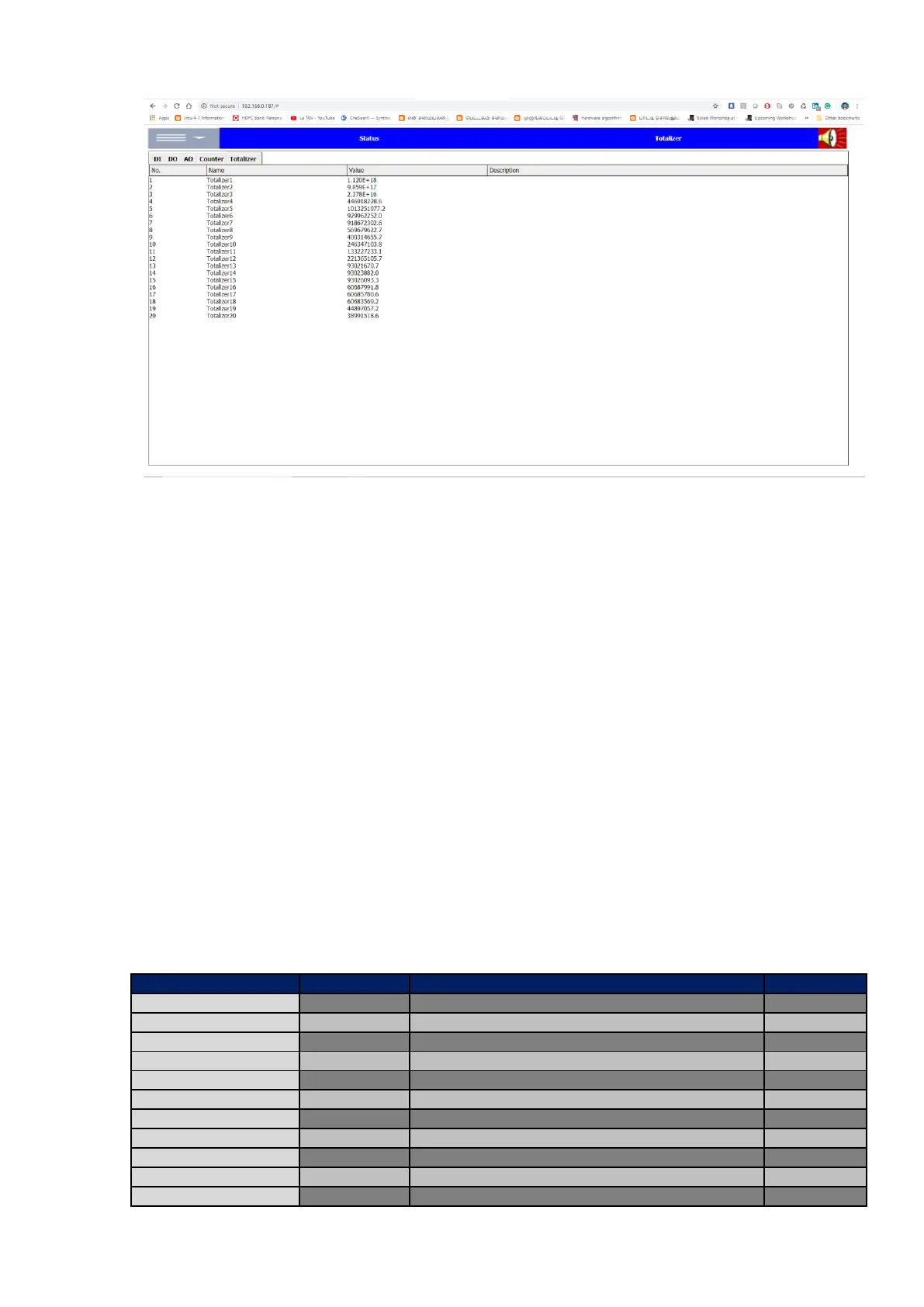

8. Modbus Communication
8.1 Modbus Address Mapping
8.1.1 Input Register (3xxxxx) Parameter Table for Modbus RTU Slave / TCP Server
8.1.1.1 AI / DI / DO / AO Channel Data (Integer Type)
Modbus Address
Notation
Register Name
Access
1
Reserve
Reserve
R
2
AI1
AI 1 process value
R
3
AI2
AI 2 process value
R
4
AI3
AI 3 process value
R
5
AI4
AI 4 process value
R
6
AI5
AI 5 process value
R
7
AI6
AI 6 process value
R
8
AI7
AI 7 process value
R
9
AI8
AI 8 process value
R
10
AI9
AI 9 process value
R
11
AI10
AI 10 process value
R
