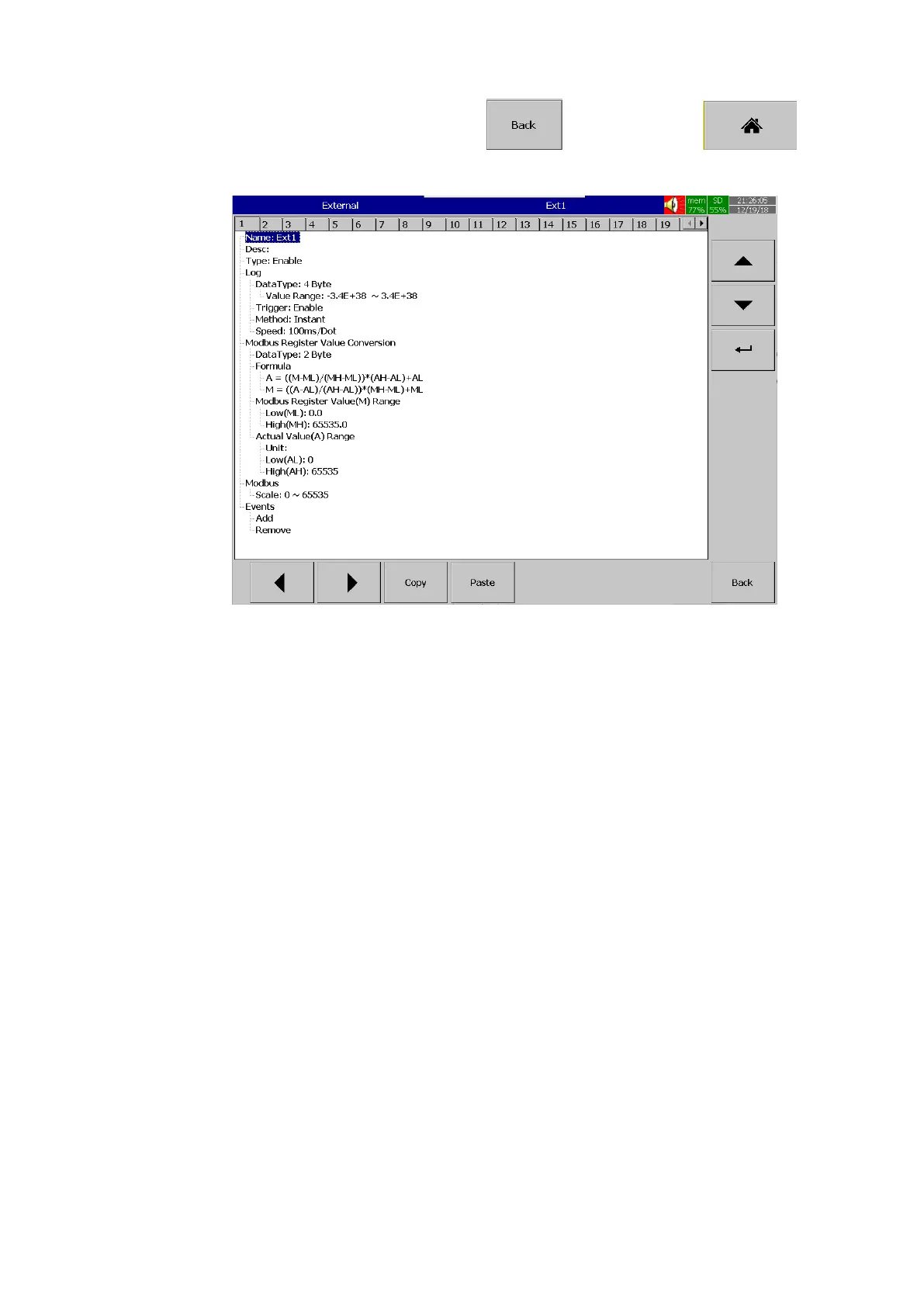

the column. After completing Configuration, press soft key, then press soft key
to return to main display. All configurations will be saved automatically.
Copy: copy the channel configuration from one channel to another channel.
Paste: Paste the copied configuration to the channel.
Press Copy key in the source channel and press paste key in the destination channel.
5.1.6.1 Name
Enables the User to define the name for each channel with a maximum of 18 characters.
Select “Name”, then Press “Enter”, soft key, a keyboard with several keys will appear. Press “Shift” to
select special characters. Press “Caps” to select capital letters. Press soft key “OK” after entering a new
channel name.
5.1.6.2 Desc
The description about a specific channel on the recorder.
5.1.6.3 Type
Option available to enable or disable the channel
5.1.6.4 Log
5.1.6.4.1 Data Type
The data type for logging is 2 byte.
2 byte range: -32767 to +32767
5.1.6.4.2 Trigger
Two options are available for the user to select.
1. Disable: Select disable while the recording of a specific channel is not required at this time
2. Enable: Select enable while the recording of a specific channel is required at this time
