5-38 Unit Determination of AOLO & AOHI
*E5: Unit is the same as unit of PV1 (IN1)
*E6: Unit is the same as unit of PV2 (IN2)
5.2.2.1.1 Default
This will allows the user to load the default values of the Process Control Card Parameters
5.2.3 Channel
The Channel will allow the user to configure the channels to be logged in the recorder from PID
process control card. Press Channel and then press Enter Soft key to access the Channel parameter of
Process Control Card.

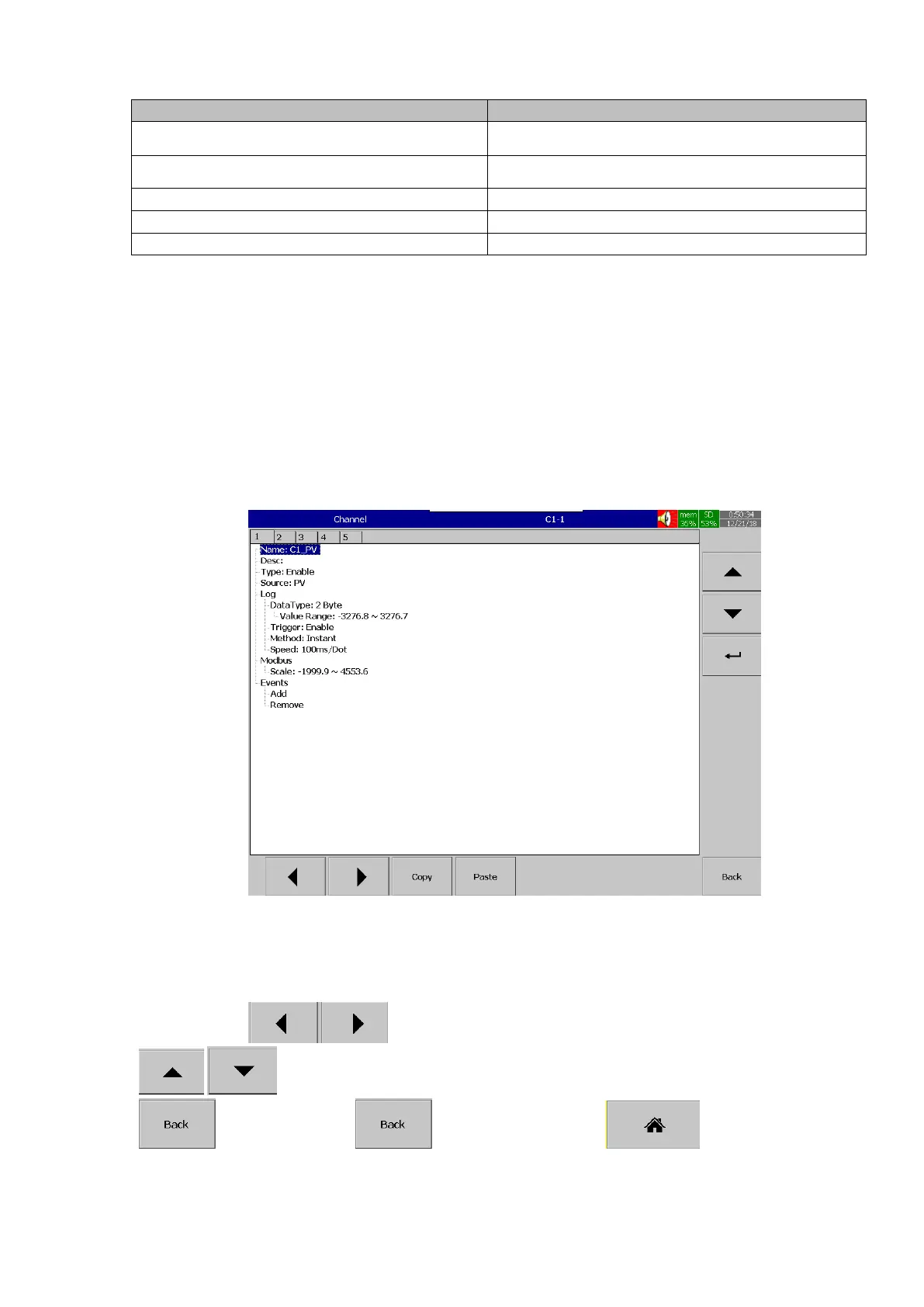

After entering the Configuration menu, in the Channel, select Controller then Press the Enter
soft key to get into Controller Channel configuration menu. After entering particular controller configuration
menu then selects channel then press Enter to enter in to controller channel configuration menu. It displays
the Controller C1 channel C1-1(C1_PV) as the first Controller channel configuration page. Press directional
navigation keys at the bottom to select other channels. Press directional keys
on the right hand side to select the column. After completing Configuration, press
soft key, then press soft key and then press soft key to return to
main display. All configurations will be saved automatically.
