Page 174 of 479
Event2
Type: L
Job1: DO Latch Off, Target: DO1
Job2: No Action
Timer1
Type: Countdown, Action: Disable
Time – Hour: 0 Min: 0 Sec: 10
Job1: DO Latch On, Target: DO1
Job2: No Action
5.7.5.1 Timer Example-3
The user requires to get a daily report from the recorder about the minimum, maximum and
average values of the process every day. After production has finished, the user can press Menu, then
Event, then selects Report and presses the Mode key to select the Daily mode. It will show the report on
daily basis.
Timer1
Type: Daily
Action: Enable
Time – Hour: 17 Min: 01
Job1: Log Report Target: ALL CH MinMaxAve
Job2: Reset Min/Max/Ave Target: ALL CH
(Reset historical data in order to logging new data for the next day.)
5.8 Clock
This will allow the user to configure the clock and related configuration including summer saving
time adjustment. After entering the Configuration menu, select Clock then Press the Enter key to get into

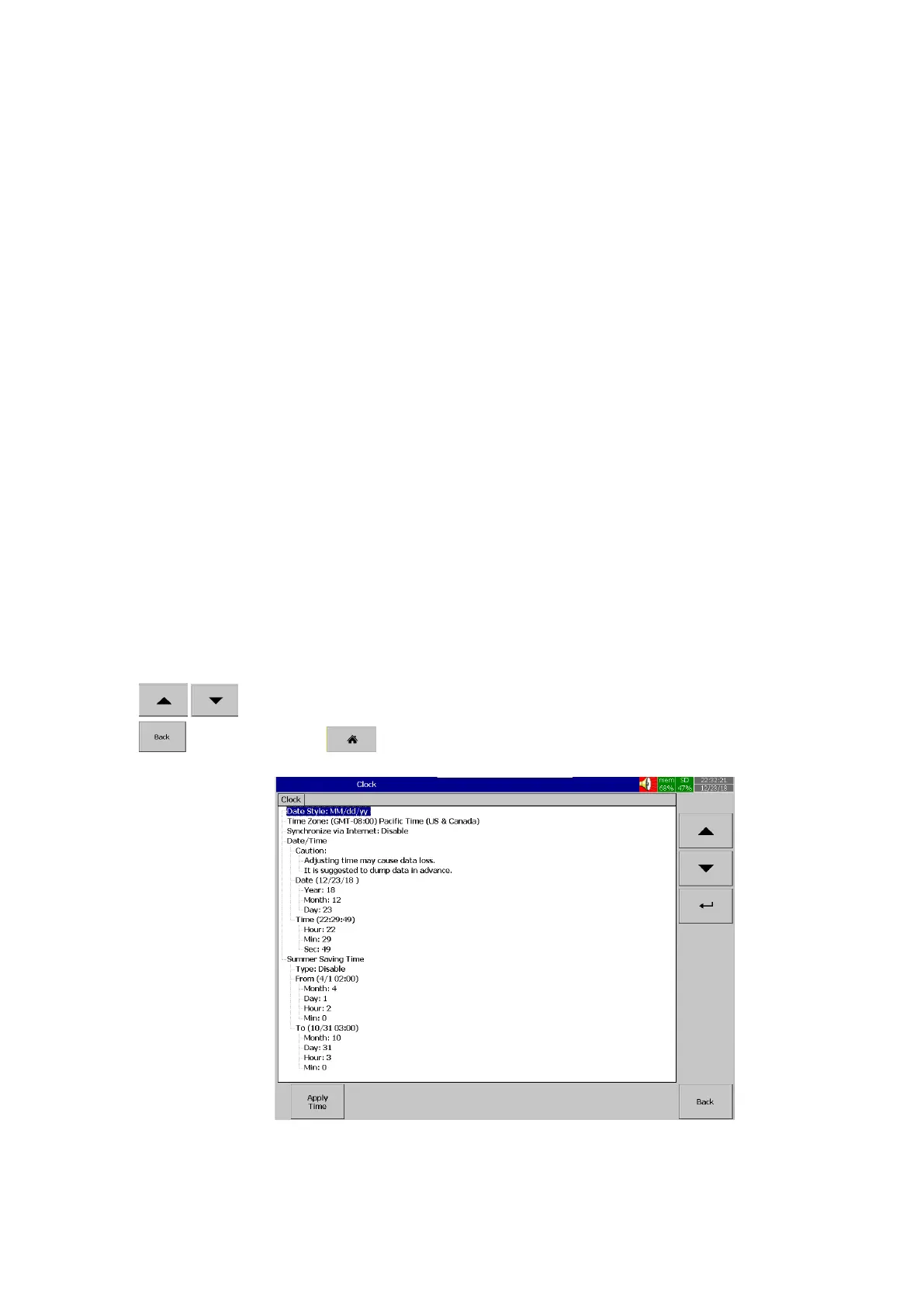

Clock configuration menu. It displays the clock configuration menu to configure. Press directional keys
on the right hand side to select the menu column. After completing Configuration, press
soft key, then press soft key to return to main display. All configurations will be saved
automatically.
5.8.1 Date Style
Selects the Date style format for the recorder. The available options are MM/dd/yy and
dd/MM/yy.
