Page 299 of 479

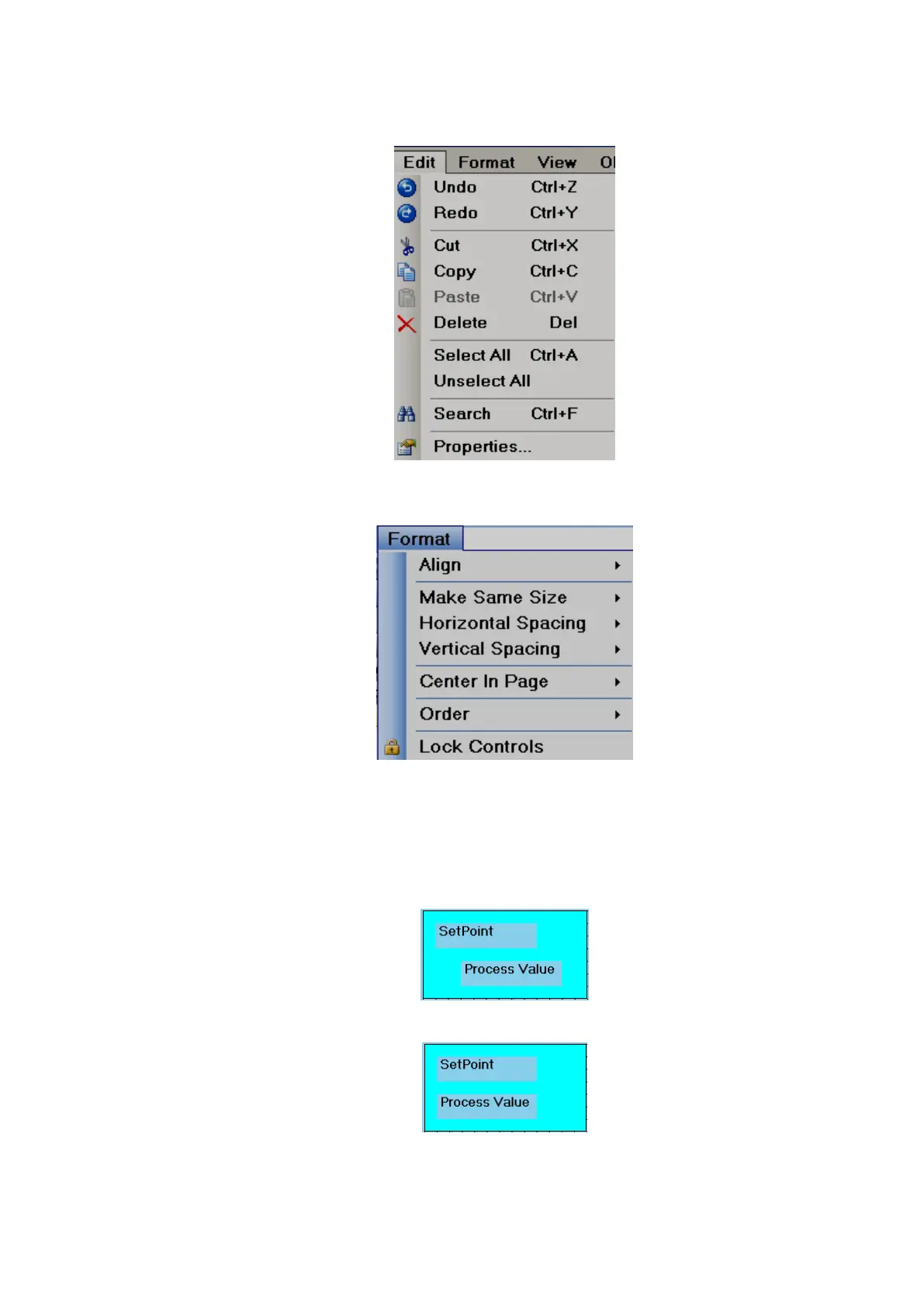

6.3.5.2 Edit
6.3.5.3 Format
1. Align: Used to align selected components, objects etc. for adjusting their position precisely in the
screen layout. Available options for selection are Center, Right, Left, Tops, middle & Bottom.
Example: Align two Labels to the left in Recorder screen.
Assume both labels are created in Screen1. Select both labels first using mouse. Alternatively,
select first label by left clicking the mouse, then press “Ctrl” on the keyboard and select the second label by
left clicking the mouse. Now, in Menu, click “Format”, then select “Align”, then select “Left”.
Before Align adjustment
After Left Align adjustment
