5.5.3 Example for Batch Application
The operator wants to start a batch every day at 8.00am and stop the batch at 12.00am.
Configuration
Timer1
Type: Daily
Action: Enable
Time – Hour: 8 Min: 0 Sec: 1
Job1: Start
Job2: No Action
Timer2
Type: Daily
Action: Enable
Time – Hour: 12 Min: 0 Sec: 1
Job1: Pause
Job2: No Action

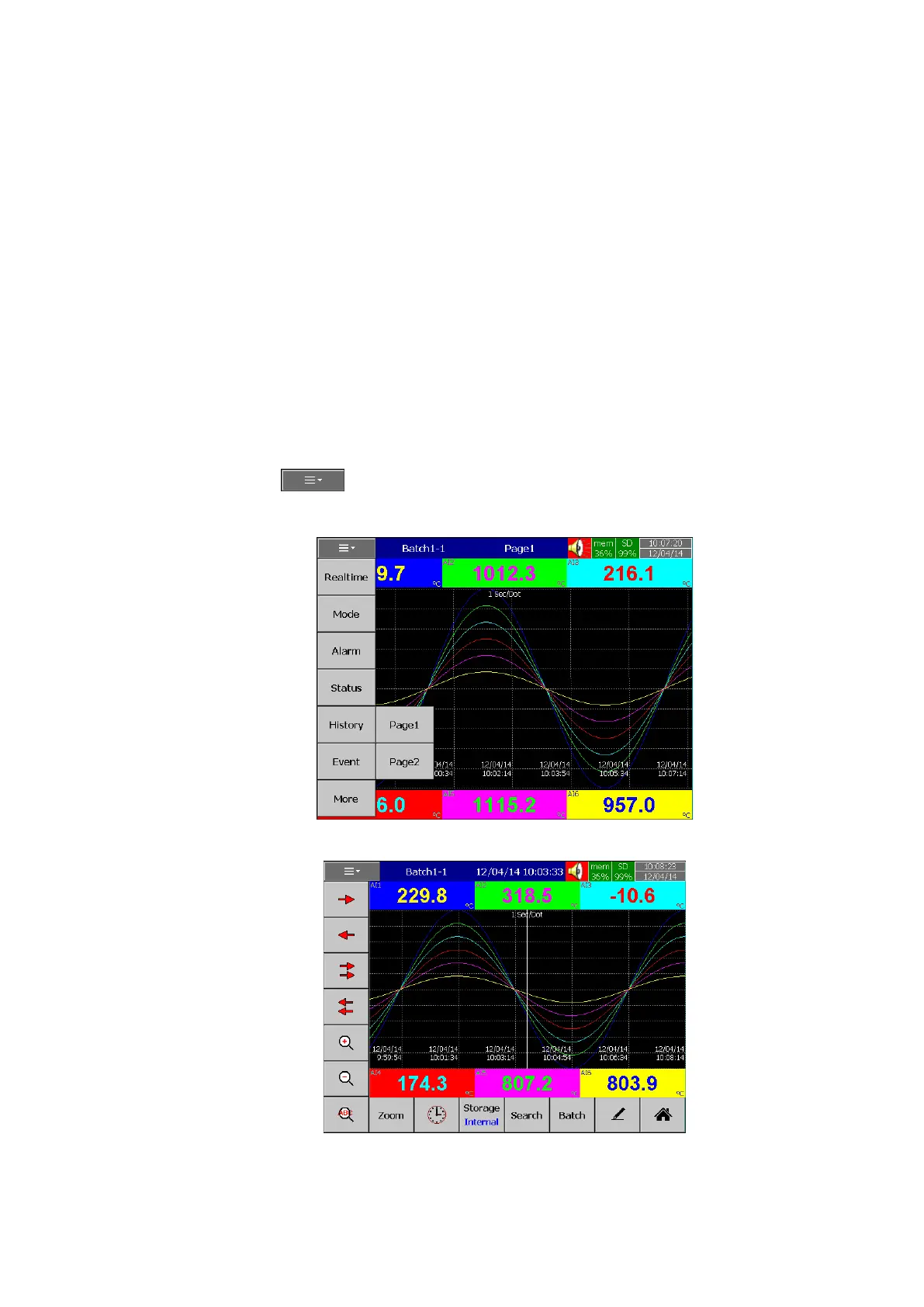

5.5.4 How to view batch data in Recorder
1. Press on (Menu)-History-Page1
2. Press “Search”, select required Batch and press “Ok”
3. Batch details including lot number can be archived by pressing soft key “Batch”
