3. BASIC FUNCTIONS OF RECORDERS
3.1 Configuration

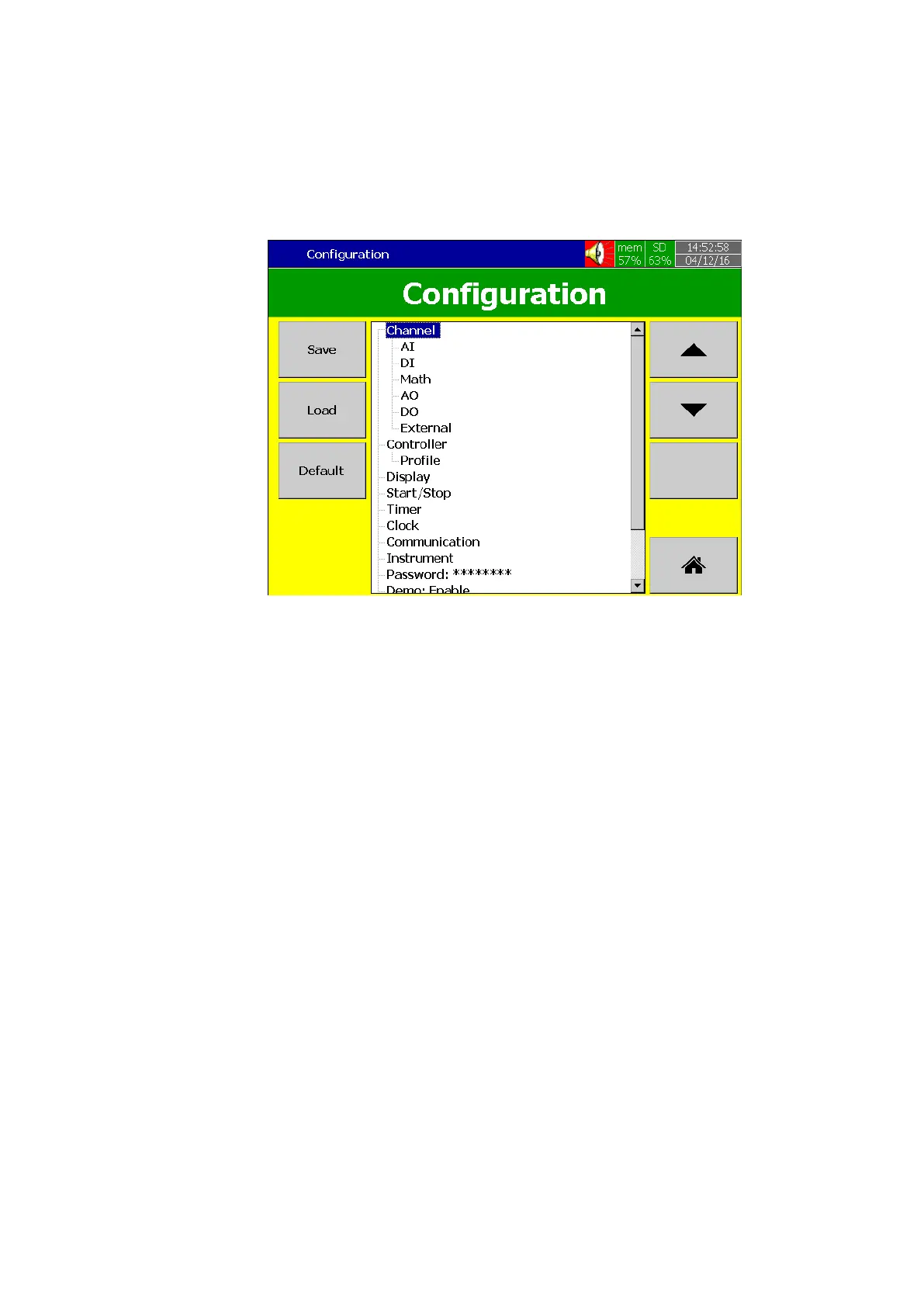

The configuration of the recorder follows a tree type layout. This makes it easy for the users to
go through the different sub menus easily and do not miss any configuration.
3.2 Firmware
The PR series recorder has 4 different versions of firmware for the user to select as per the
application requirement.
1. Standard Firmware
2. Plus 1 Firmware
3. Plus 2 Firmware
4. Plus 3 Firmware
3.2.1 Standard Firmware
The standard version of firmware have Input and output configuration, Math functions (Counter,
Totalizer),PID Controller function with PID Process control card. This firmware does not include External
channels, Custom Edited Display, Batch, or FDA 21 CFR part11 functions.
3.2.2 Plus 1 Firmware
The plus 1 firmware have external channel, Batch, FDA 21CFR Part 11 functions along with the
functions available in standard version firmware. This firmware does not include custom display function.
3.2.3 Plus 2 Firmware
The plus 2 firmware version have custom display function similar to HMI along with the functions
available in standard version firmware. This firmware does not include external channel, Batch, FDA 21CFR
part11 functions.
3.2.4 Plus 3 Firmware
The plus 3 firmware have all the functions of standard, plus1, plus 2 version firmware.
