Brainchild PR10 - Portable Styles

Page 39 of 479

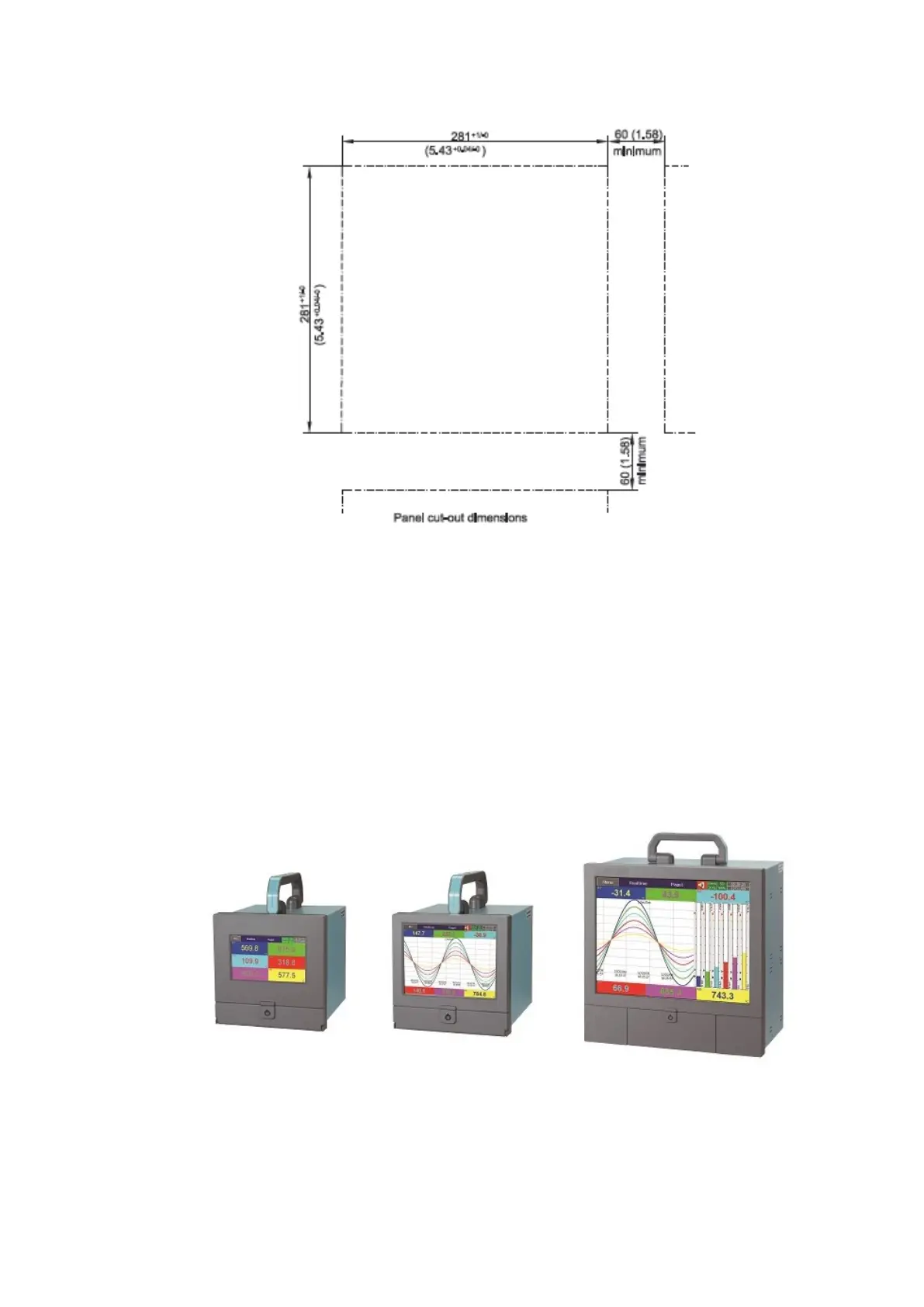

2-9 PR30 Cut-out Dimensions
Note:
❖ Do not over tighten mounting clamp screws that could result in distortion of the case.
❖ There is no mounting angle restriction.
❖ The mounting torque used for 4 sides of the housing should be 2.0 KgF-cm and not more than
2.5 KgF-cm
2.2.2 Portable styles
