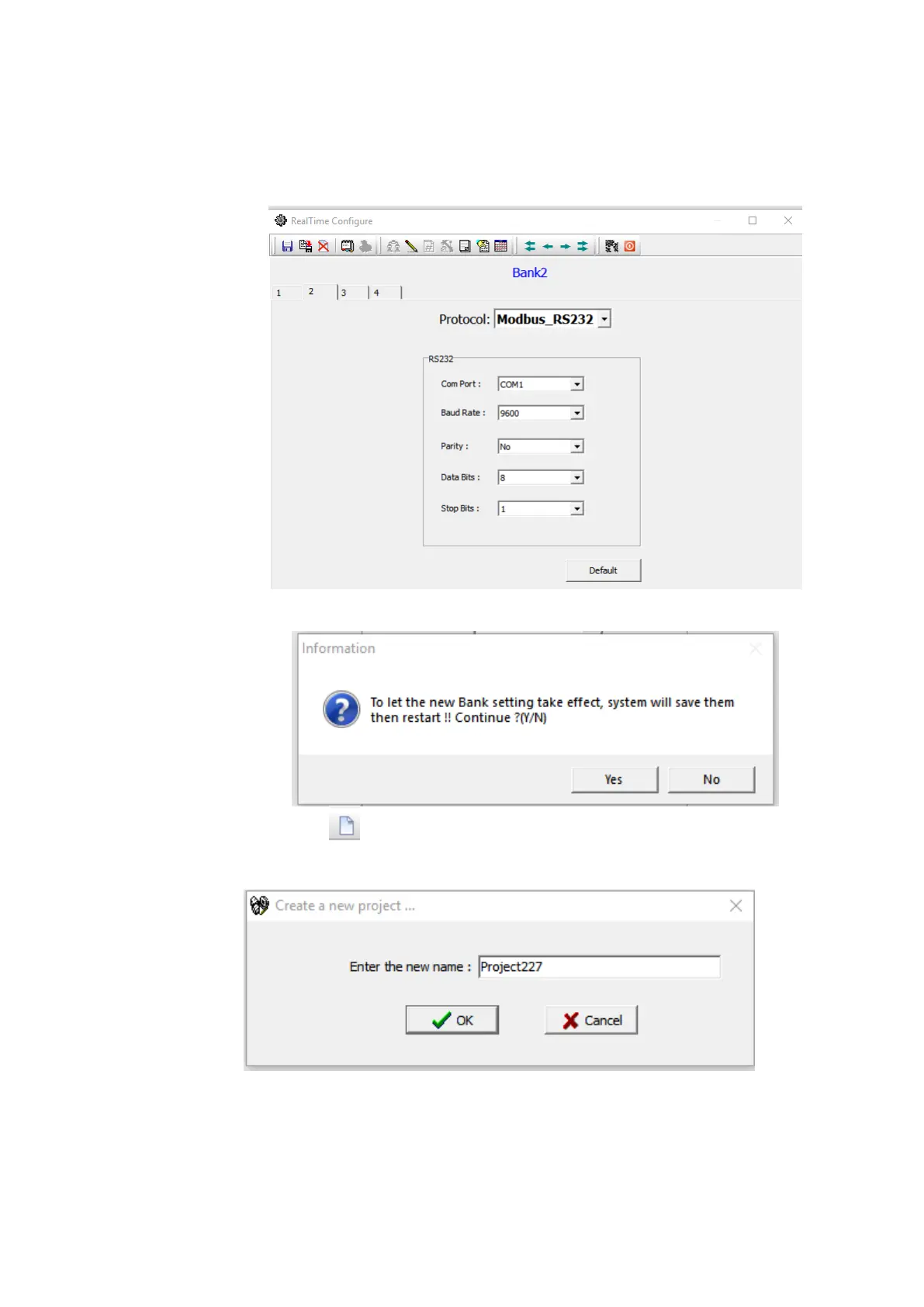

5.2. If the device is connected to PC via RS232 or RS485 port then configure the bank with
Protocol as Modbus_RS232 and other communication parameters such as com port no,
Baud Rate, Parity, Data Bits and Stop Bits as per the connection.
5.3. After configuring the banks close the configuration viewer and restart the program.
6. Click the icon or select New from File Menu.
7. Set a name for the project
8. The Software requests the user for auto configuration. Press yes to configure the tags of the
device automatically by the software.
