Page 142 of 479

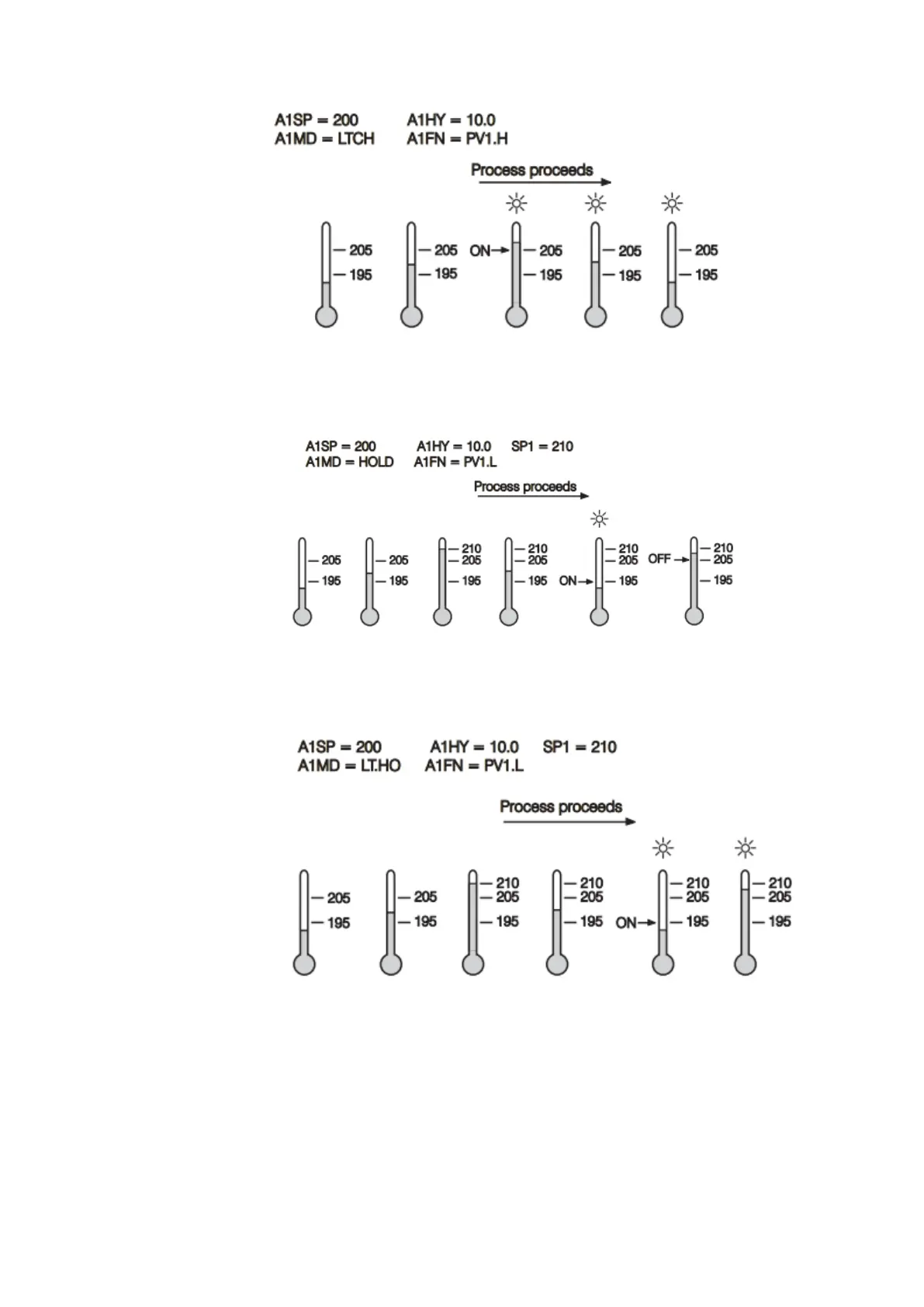

5-2 Latching Process Alarm
5-3 Holding Process Alarms
5-4 Latching/Holding Process Alarm
Although the above descriptions are based on alarm 1, the same conditions can be applied to alarm 2.
5.2.4.12.2 Alarm Types
5.2.4.12.2.1 Deviation Alarm
A deviation alarm alerts the user when the process deviates too far from set point. The user can
enter a positive or negative deviation value (A1DV, A2DV) for alarm 1 and alarm 2. A hysteresis value
