Page 239 of 479
input the IP address of the recorder then press ok.
❖ If the historical data is dumped to SD Card or USB Disk then remove the SD card or
USB disk from the recorder. Insert SD Card or USB disk to the PC then select
Storage Media in file path and then select the path then press ok. The same
procedure can be followed for the files copied from SD card USB disk on the PC by
selecting the file path on the PC.

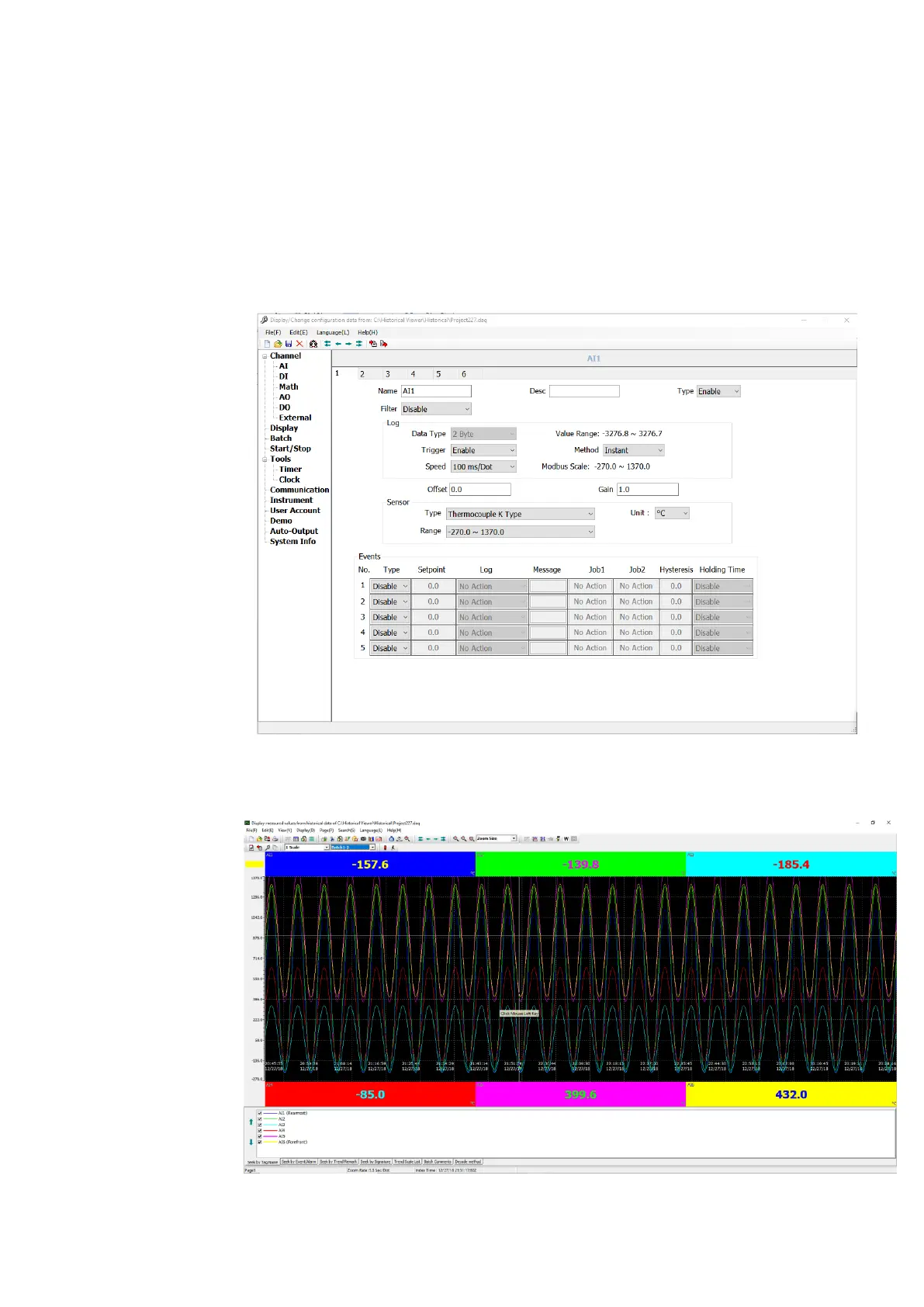

4. After the successful connection with the assigned path via Ethernet or Storage device the
software will display the configuration of the device on the project via configuration viewer. If
the security is set for CFR21 then the user login is required.
5. After receiving the configuration close the configuration viewer to automatically import and
view the historical trend of historical data. If the security is set for CFR21 then the user login
is required.
