Page 297 of 479
2. Open Project: To open existing project
3. Close Project: To close present project
4. Save Project: To save Project in default path
5. Save Project As: Saves project in selected path other than default path specified while
creating a new project settings.
6. Screen: Create a new screen on the project.
7. Upload: To upload project from Recorder back to PC
8. HMI Update: This function will allow the user to update the clock, firmware, language on the
HMI. This function is available only for HMI.
9. Environment: This will allow the user to modify the project environment configurations.
10. Recently: It is to open recently opened projects
11. Exit: To exit from current project

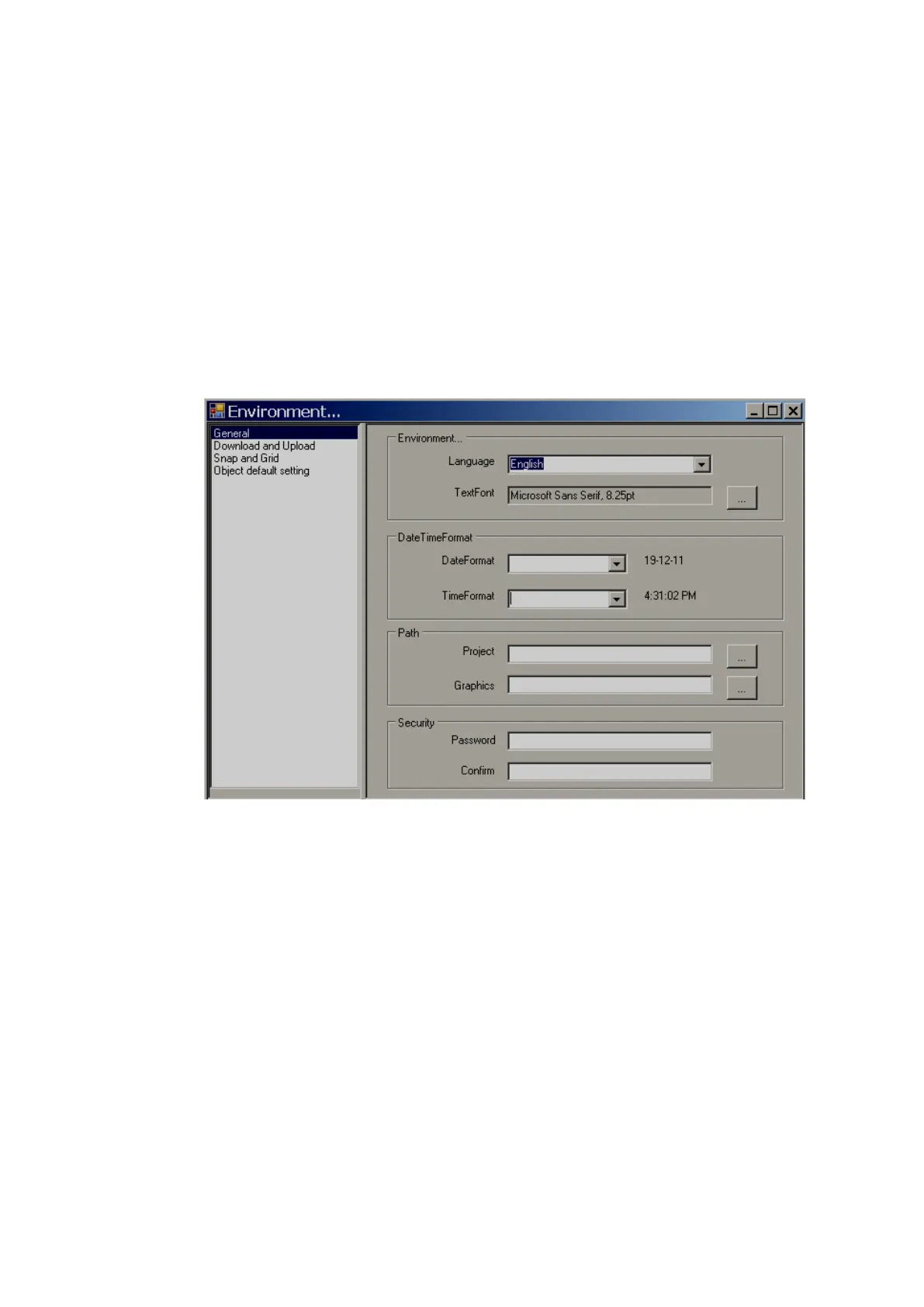

6.3.5.1.1 Environment
6.3.5.1.1.1 General
1. Language: Select the Language for project environment. 20 languages are supported by Panel
Studio Software including English, Simplified Chinese, Traditional Chinese,
Japanese, French, German, Italian, Polish, Spanish, Portuguese, Brazil Portuguese,
Russian, Thai, Czech, Danish, Dutch, Korean, Swedish, Turkish and Greek.
2. Environment font: Select font required for design time environment. Example: Menu, Tool
Box, Project explorer, function editor etc.
3. Project Path: Location to storage of project files. Default project path: C:\Program Files\Panel
Studio\Demo Project
4. Graphic Path: Location of default basic Symbols. Default graphic path: C:\Program
Files\Panel Studio\Panel Studio\Basic Symbols
5. Security: This is to protect opening the software in specific Personal computer (Not for
project). Once password is entered, it is required to enter password correctly to
open the software for the current session. This is useful in factory environment to
prevent un- authorized users to open the software.
