Band editor

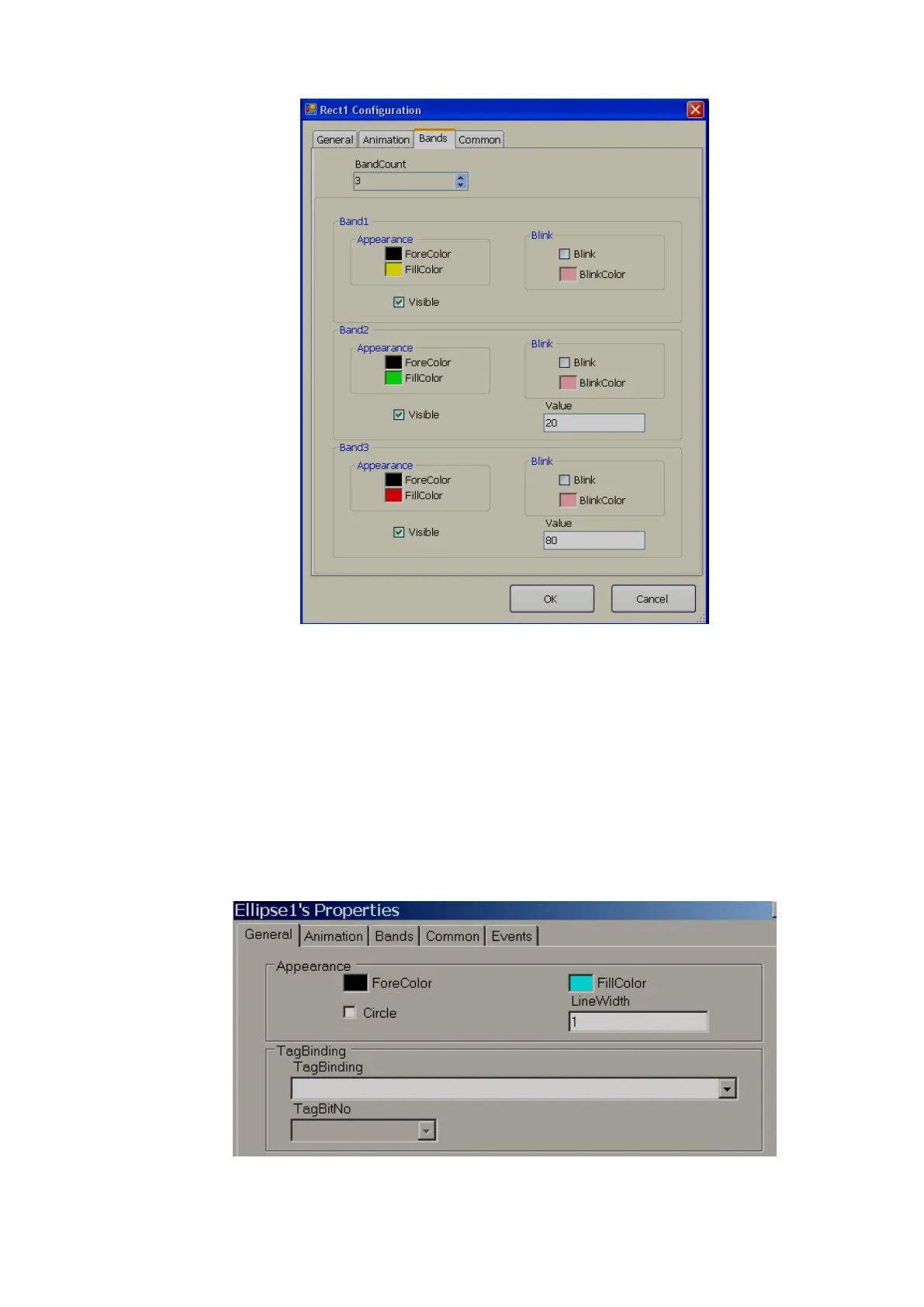

A maximum of 32 bands are available.
For example: In the above sample,
If the Tag value is 0 to 20, Rectangle fill color = Yellow
If the Tag value is 21 to 80, then, Rectangle fill color = Green
If the Tag value is above 80, Rectangle fill color = Red
If required, it is also possible to configure blink property and set blink color for any band.
6.3.9.1.6 Ellipse
Ellipse: Used to draw an Ellipse or a circle and do animation during Run time when linked with a Tag.
