Inactive Color: Defines color of inactive segments. In the seven-segment LED display, some
segments may be active and some other segments may be inactive depending
on numeric values.
Digit Height: Defines height of digits
Digit Width: Define width of digits
Digit Space: Defines the space between digits
Segment Space: Defines the space between segment to segment for digits
Segment Thickness: Defines thickness of segments for digits
Decimals: Defines the number of decimal points
Tag Binding: Selects the Analog Tag of process value
6.3.9.1.11 Digital Box

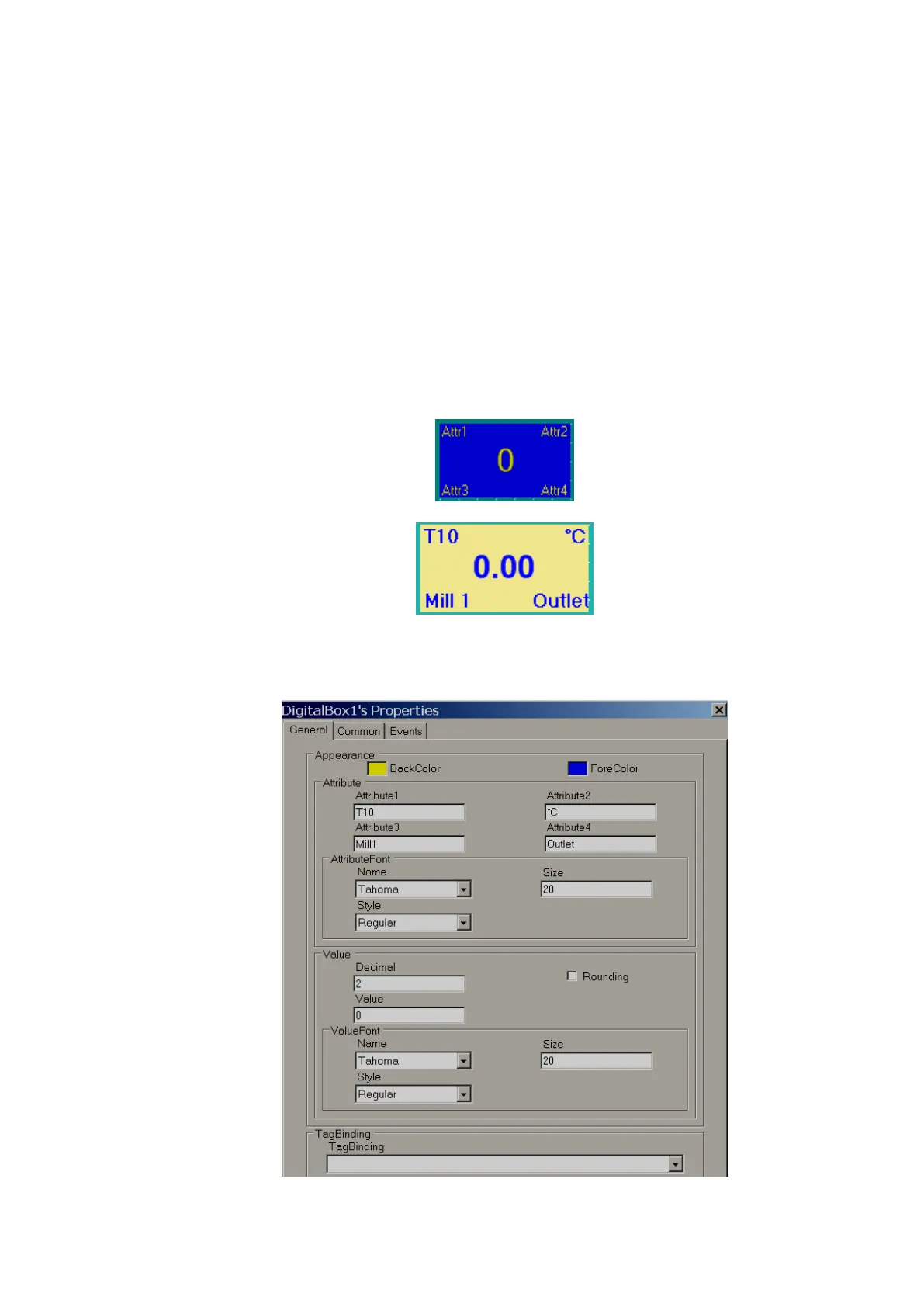

Digital Box is a Graphical User Interface widget that displays a digital tag value along with four
predefined labels as attributes for the process value in Run time.
Digital Boxes are normally used with Analog tags to display process values like Temperature,
Pressure, and Flow etc. They also allow 4 different labels as attributes for displaying tag related
information.
