Page 334 of 479

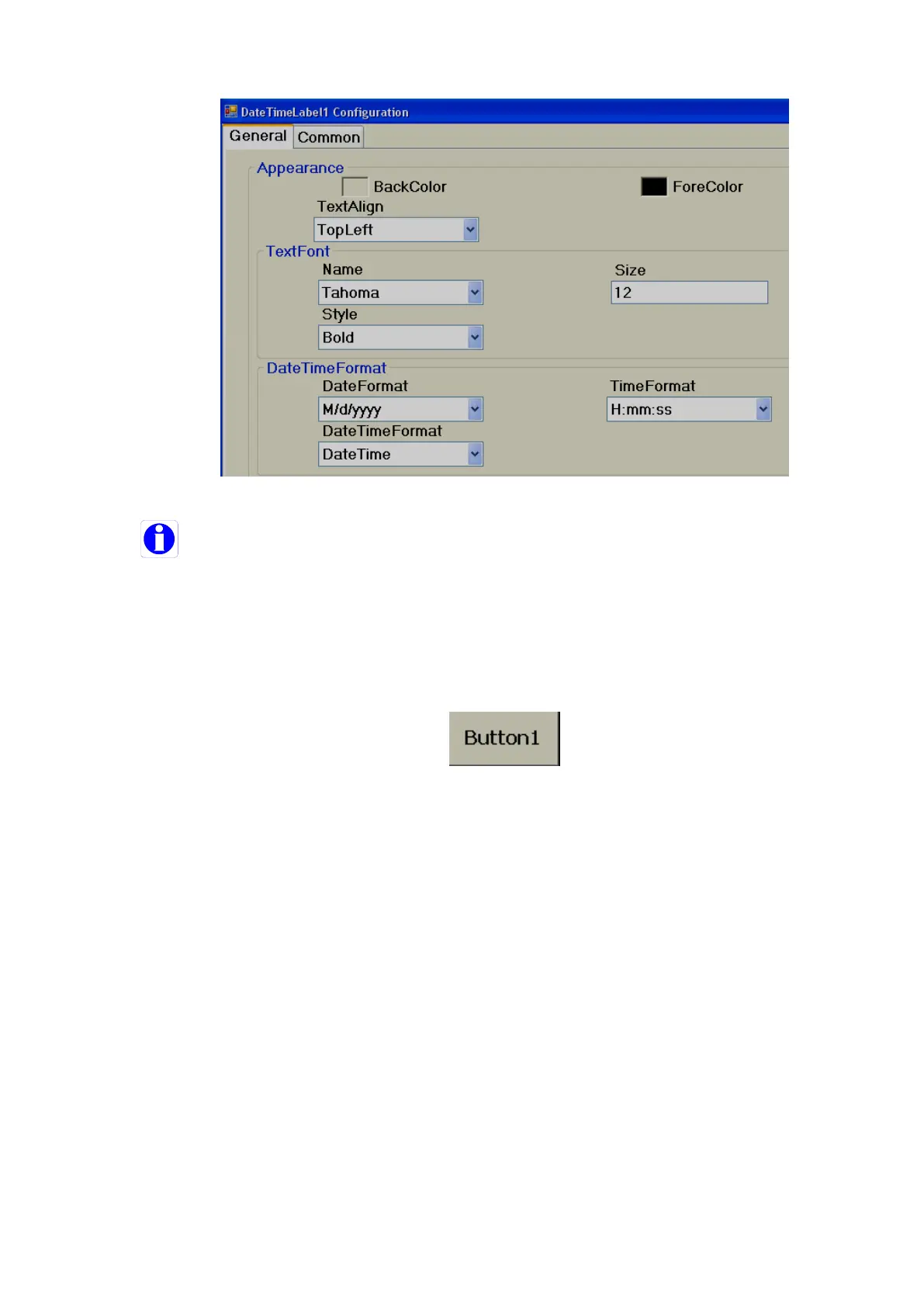

If date and time is required in more than one screen, it is better to create a screen and select the
screen type as “Template”, and then link this template to all other required screens to display Date and Time
automatically. This is more efficient than keeping Date and Time label in more than one screen, since it
uses less memory.
6.3.9.1.15 Button
A Button is commonly used to perform an action after operator presses it with their finger, or by
clicking using a mouse during Run time.
Generally, “Button” is used to turn ON a bit, Turn OFF a bit etc. when used with Digital type tags.
Example: Start Pump, Stop pump etc.
Three kinds of “Events” are supported for a button. Clicked, Pressed and Released. Several
functions are supported which can be configured from “Events” and all the functions are covered in next
section “Function editor”.
