3-99

Confidential

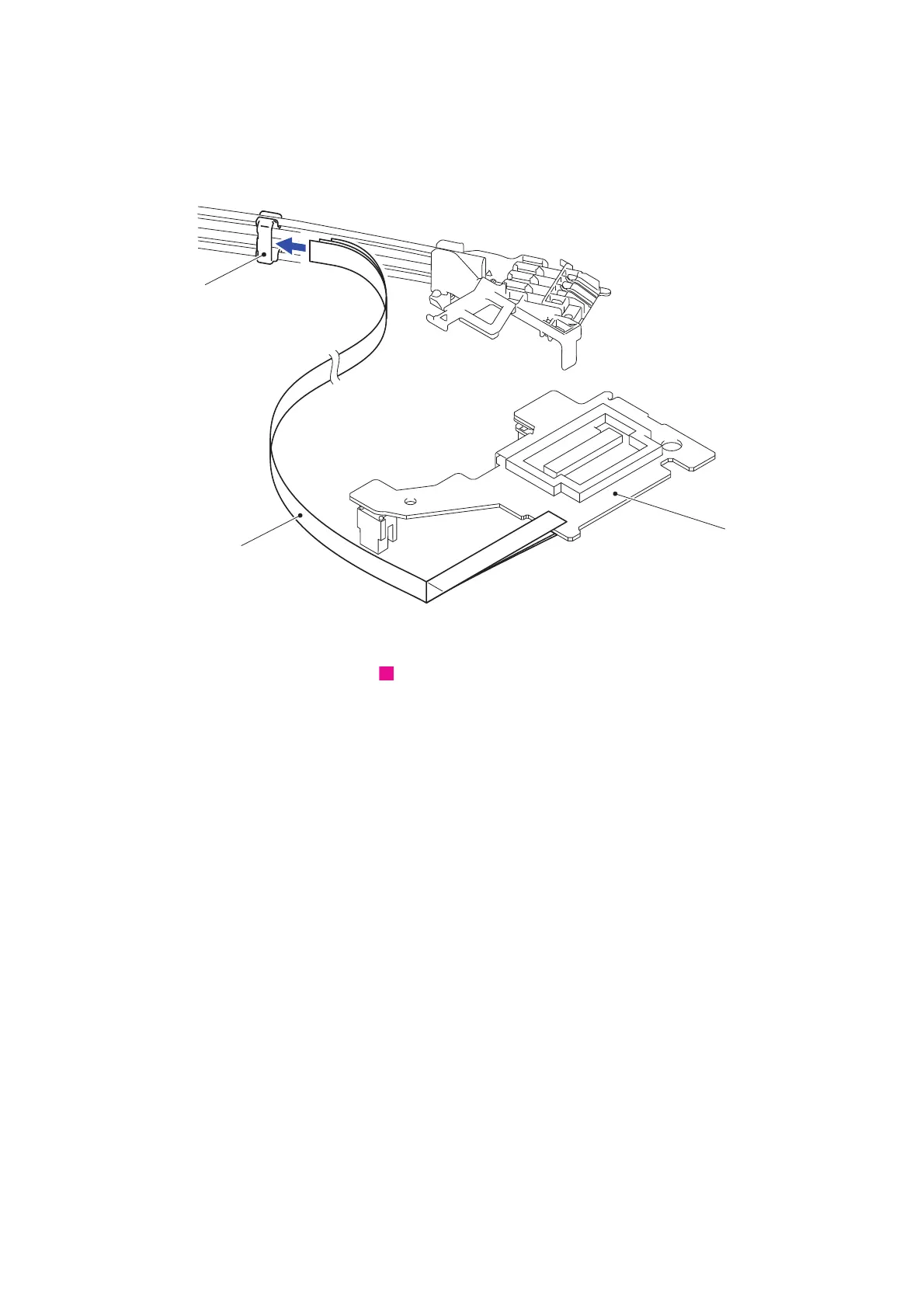

Assembling Note: Be careful with the second side and first side of the Flat cables

when inserting the three Flat cables of the Carriage PCB ASSY

into the Tube clamp.

Fig. 3-115

Harness routing: Refer to " Main PCB ASSY and MJ PCB ASSY"

Tube clamp

Carriage PCB

ASSY

Flat cable of the

Carriage PCB ASSY
