BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
28 V AC-DC CON-
VERTER ASSY.
916 i TYPE C24

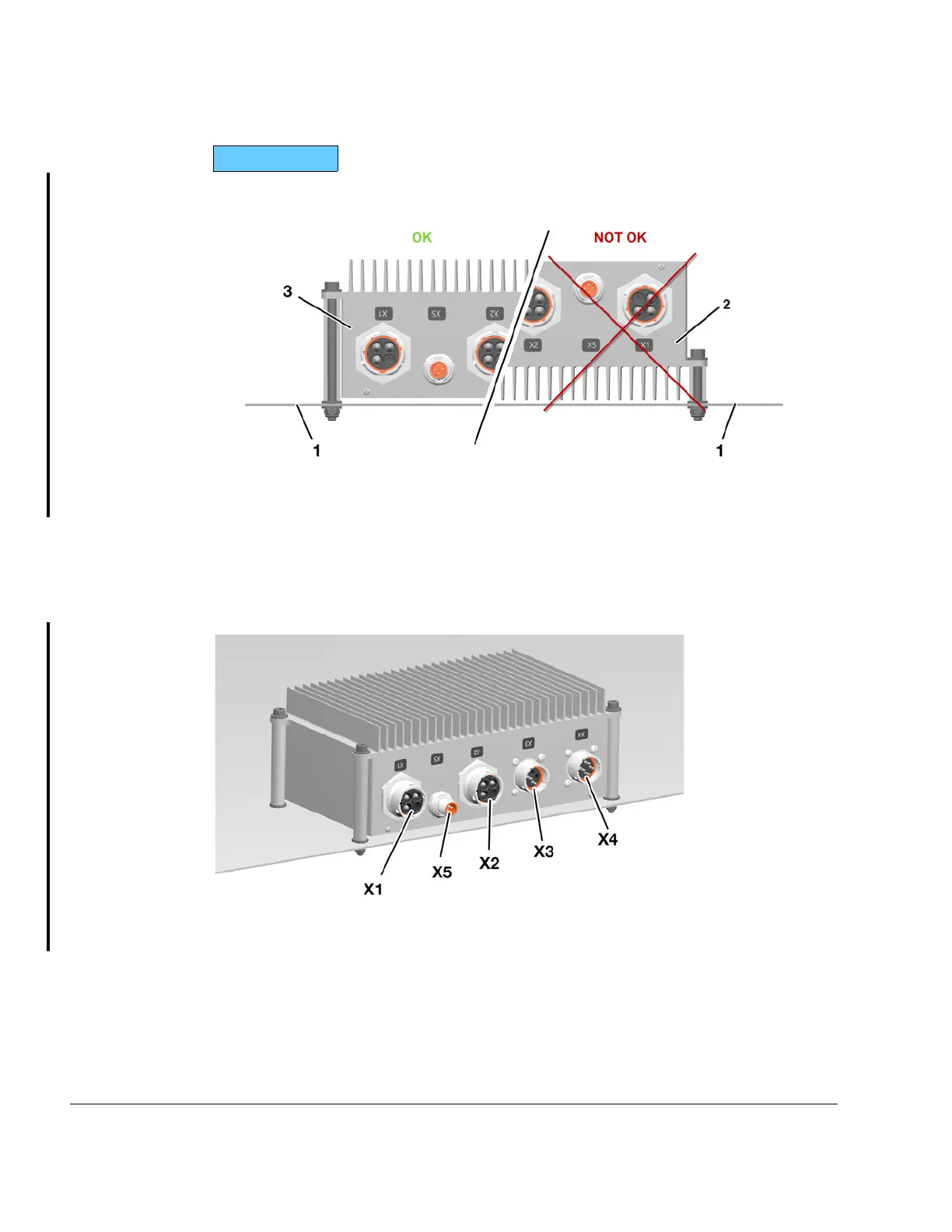

Figure 3.15: 28 V AC-DC Converter assy.
1 Firewall 2
Orientation of the heat sink NOT to the
firewall
3
Orientation of the heat sink to the
firewall
Figure 3.16: 28 V AC-DC Converter assy.
X1
Generator B (stator cable from ignition
housing)
X2
Aircraft 28 V Bus / Battery 24 V
X3
Generator B ( connector from Fusebox)
X4
Cockpit Airframe side
X5
See Chapter 77–00–00
24–00–00
Page 16
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
