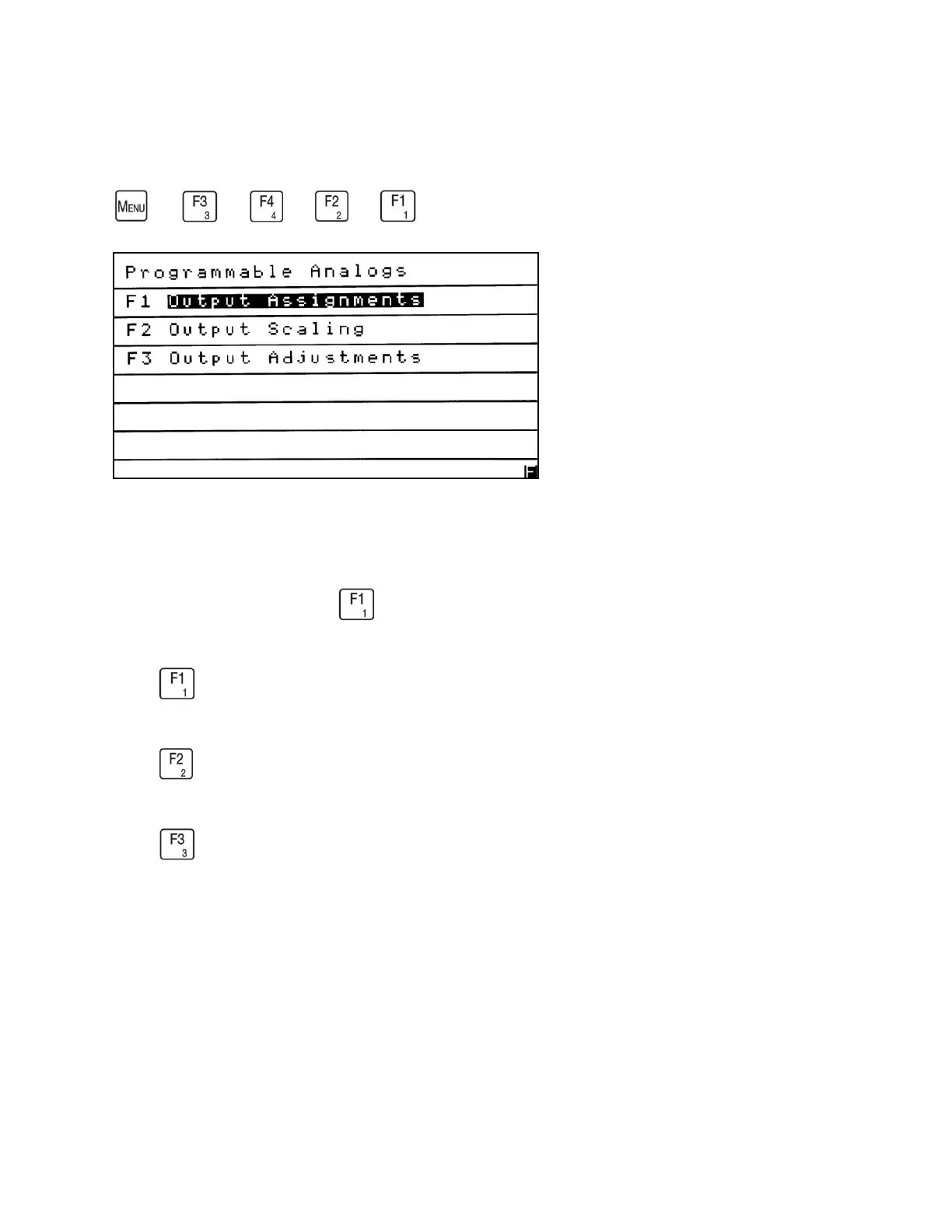

The Programmable Analogs menu provides access to the following Setup parameters:
Output Assignments, Output Scaling and Output Adjustments. The Programmable Analogs
menu is accessed by pressing from the Output Settings menu.
Press to view or reassign the four programmable analog output signals.
Press to view or set the output scaling of programmable analog output signals.
Press to set or adjust the analog outputs. The operator can set the output to either current or
voltage, and calibrate the outputs to exactly match the results obtained on a PLC or other remote
data-recording device.
