700M HFID 6-2-15
127

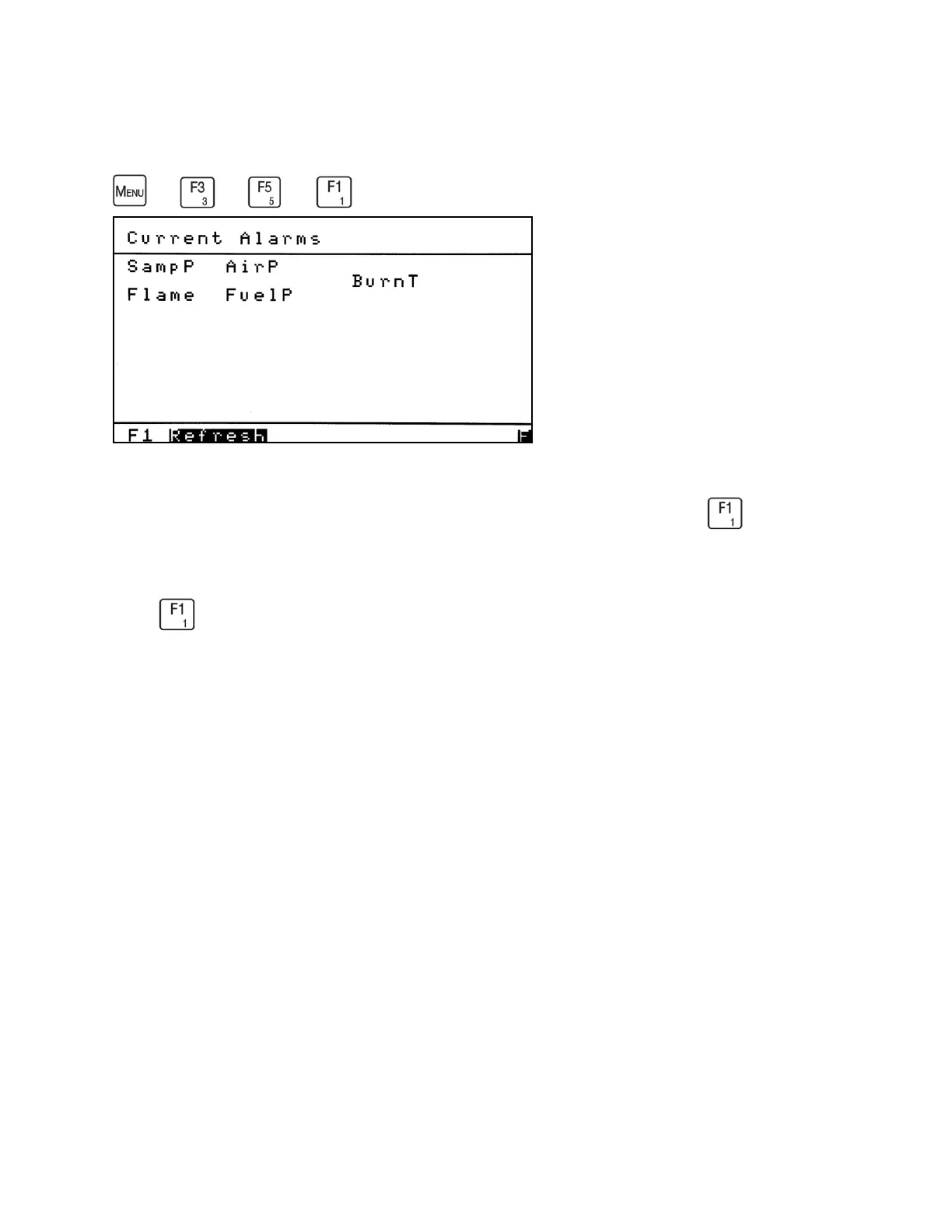

Current Alarms
→
→
→
The Current Alarms screen allows the operator to view the analyzer’s current alarms at
the time this screen was accessed. To access the Current Alarms screen press from the
Alarms menu.
Press to refresh this screen. (This screen does not auto refresh.)
Current Alarm Abbreviations
Flame: No Flame FEPC: Fuel EPC Voltage
SampP: Sample Pressure AIEPC: Air Inject EPC Voltage
AirP: Air Pressure FIEPC: Fuel Inject EPC Voltage
AInjP: Air Inject Pressure ROvr: Over Range
FuelP: Fuel Pressure AUnd: ADC Under Range
FInjP: Fuel Inject Pressure AOvr: ADC Over Range
OvenT: Oven Temperature R1NC: Range 1 not calibrated
PumpT: Pump Temperature R2NC: Range 2 not calibrated
BurnT: Burner Temperature R3NC: Range 3 not calibrated
FiltT: Filter Temperature R4NC: Range 4 not calibrated
CuttT: Cutter Temperature Conc1: Concentration Alarm 1
SEPC: Sample EPC Voltage Conc2: Concentration Alarm 2
AEPC: Air EPC Voltage
