Programmable Digital Outputs
→
→
→
→

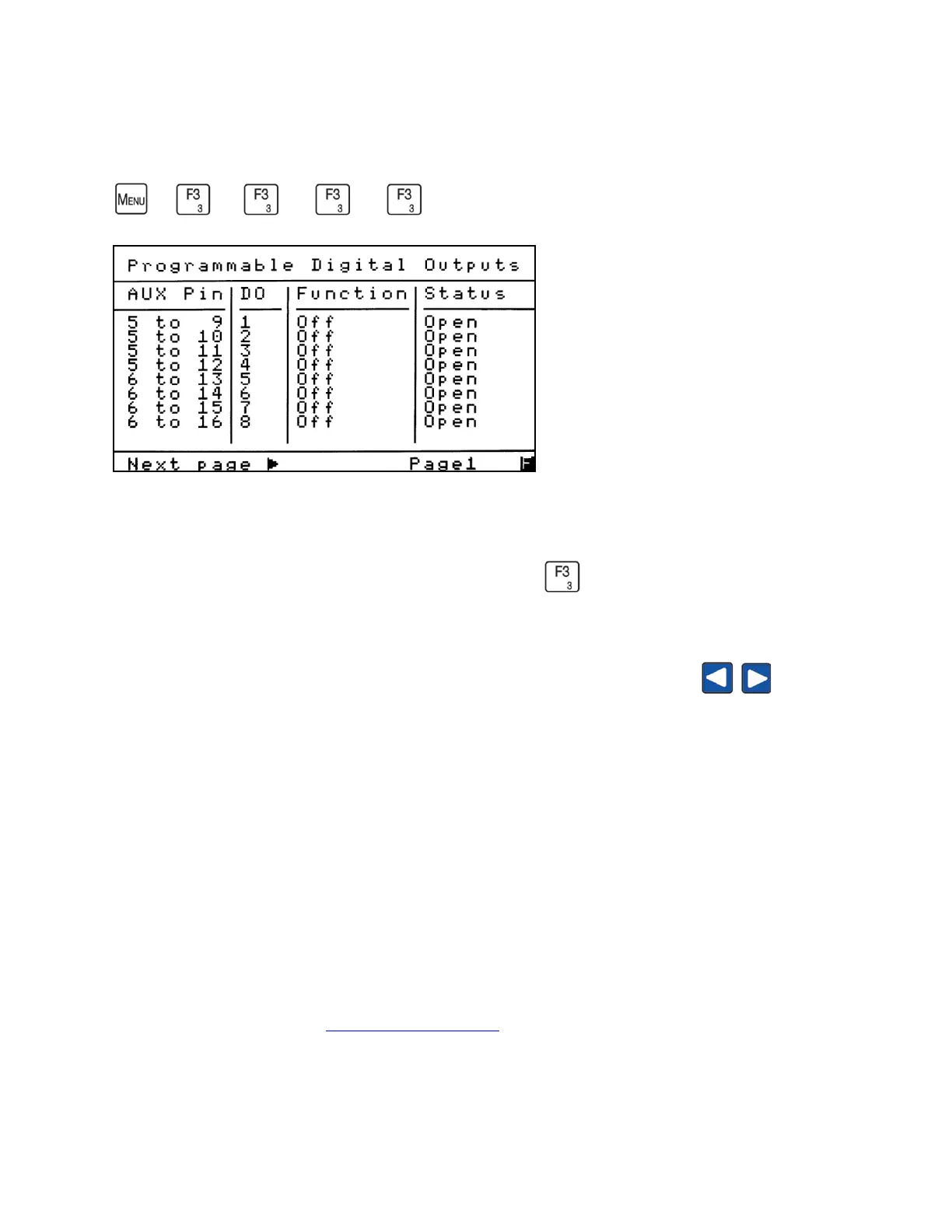

The Programmable Digital Outputs screen allows the operator to check the status of the
analyzer’s programmable digital outputs (Open or Closed) according to pin numbers and
programmed functions. From the I/O Status menu press to view Programmable Digital
Output statuses.
As indicated at the bottom of the screen, press the left and right arrow buttons to view
the next or previous page of Programmable Digital Output statuses.
The column key is as follows:
Aux Pin = Auxiliary connector on the back panel and pin number on the connector
DO = Programmable digital output number
Function = Operator-programmed function
Status = The state the programmed relay is in (open or closed)
NOTES:
• To set functions, see Programmable Digitals.
• Programmed statuses are closed when true.
• Programmed alarms are open when true.
