700M HFID 6-2-15
44

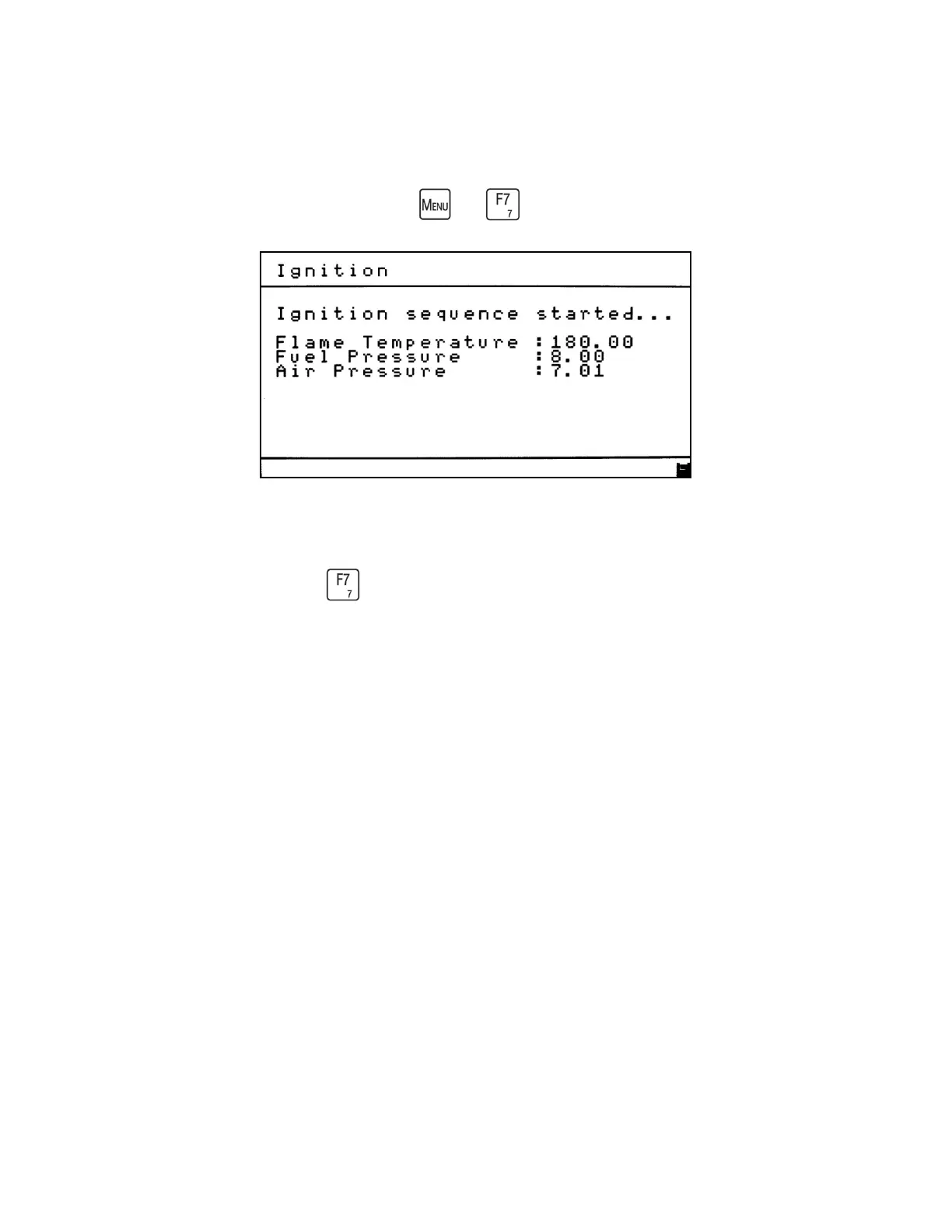

Ignition
→
Before Ignition is attempted the oven temperature should be a minimum of 120° C. To start
the ignition sequence, press from the Main Menu.
At the start of the ignition sequence the fuel valve will open five seconds before the air valve to
prime the burner. The analyzer will try to ignite up to five times (280 seconds). Once the flame
temperature reaches above 250° C, the analyzer is lit and will return to the Main Menu.
Notes:
• If the air pressure is not within the alarm limits, the fuel valve will close and the burner
will not ignite.
• If the analyzer fails to ignite, it will be indicated by a No Flame and Check Burner
Temperature alarm.
