Measure Screen
The Measure Screen provides a visual of the current concentration of the gas being
analyzed, along with other pertinent information. The Measure Screen is accessed by
pressing the key. To access the Measure Screen from the Main Menu, press .
Note: If the analyzer is equipped with a pump, the pump will not start until the oven, pump and
burner temperatures are within the alarm settings.

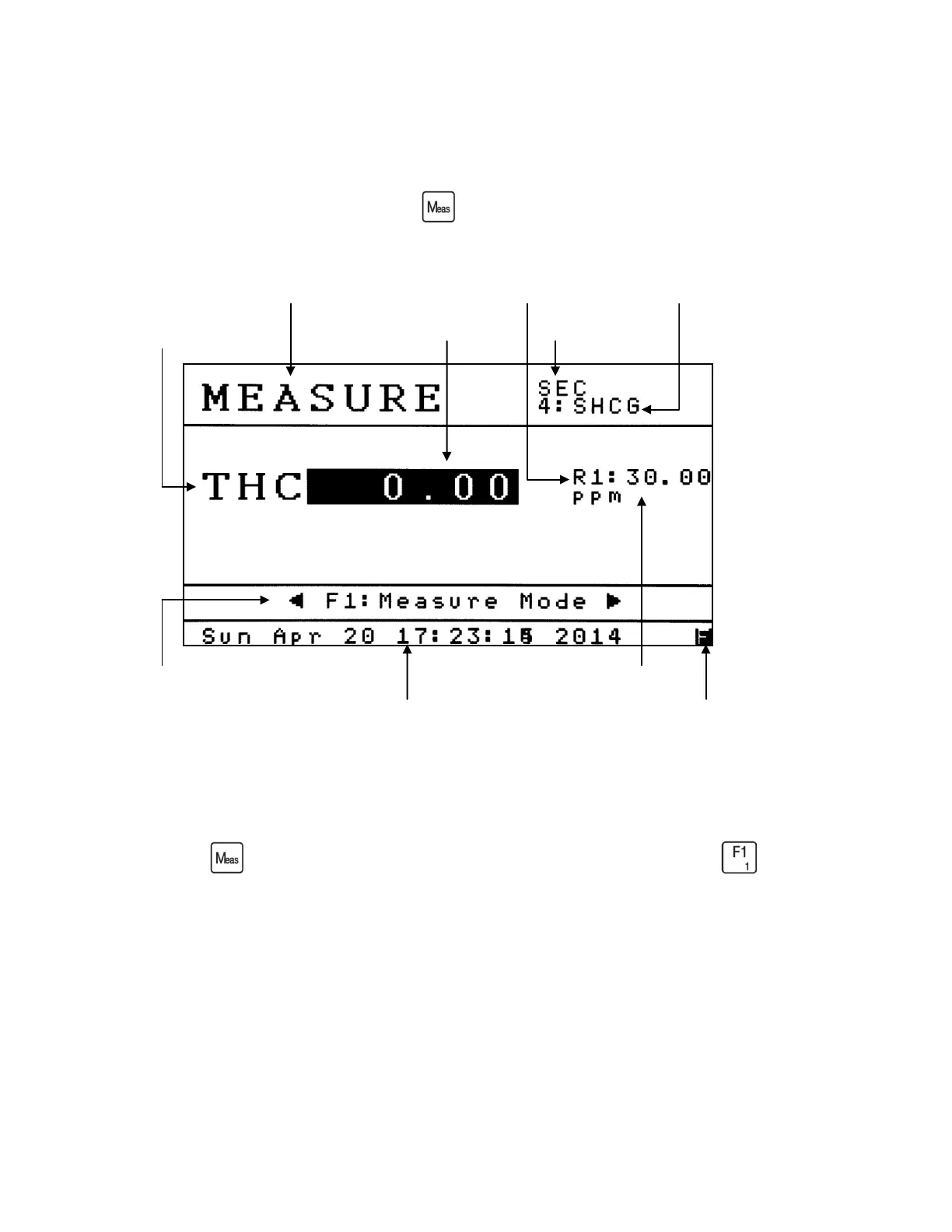

Please review the following descriptions (corresponding with the callouts on the illustration
above) to familiarize yourself with the Measure Screen.
Analyzer Mode
Screen Name
Measured Concentration
Current Range
Second Log On
AK Status Line
Shortcut Menu
Current Time & Active Alarms
Range Limit
Keypad Status
