700M HFID 6-2-15
121

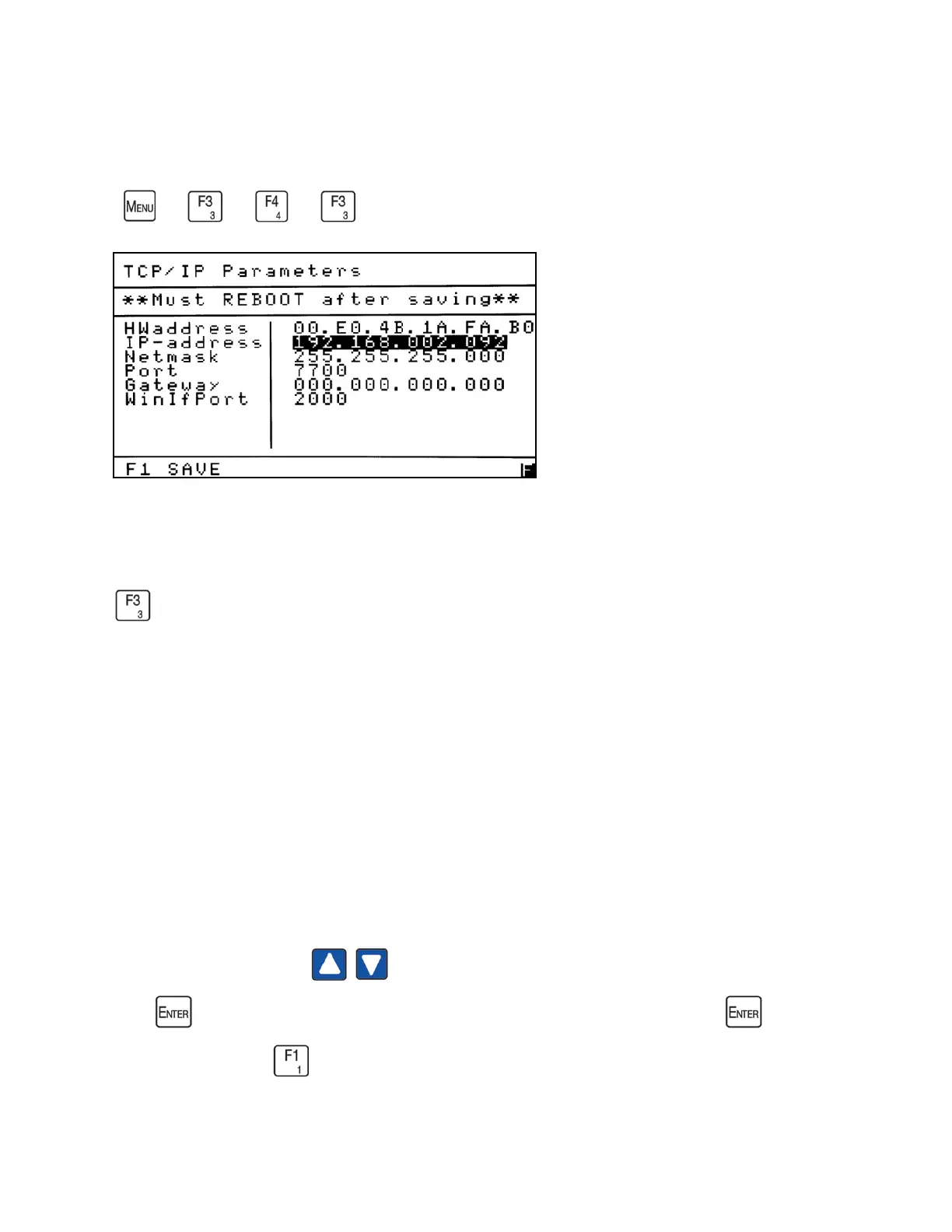

TCP/IP Parameters
→
→
→
The TCP/IP Parameters screen is used for setting up the parameters for communication
between an analyzer and computer. The TCP/IP Parameters screen is accessed by pressing
from the Setup menu.
TCP (Transmission Control Protocol) is a standard protocol for sending information between
devices connected to a computer network. It includes a format of packets, also called datagrams.
IP (Internet Protocol) specifies the addressing scheme. Most networks combine IP with TCP,
establishing a virtual connection between destination and source.
The IP-address, Netmask and Gateway may be defined by the user. The Port and WinIfPort are
assigned 7700 and 2000 by CAI and should not be changed unless required for a certain location.
Use the Up/Down arrows to move the highlight to the setting you wish to change.
Press to open the field to change the value. After making your change, press again to
close the field. Press to save your changes and return to the Setup menu. The new settings
will take effect after the analyzer is rebooted.
