Analyzer Digital Outputs
→
→
→
→

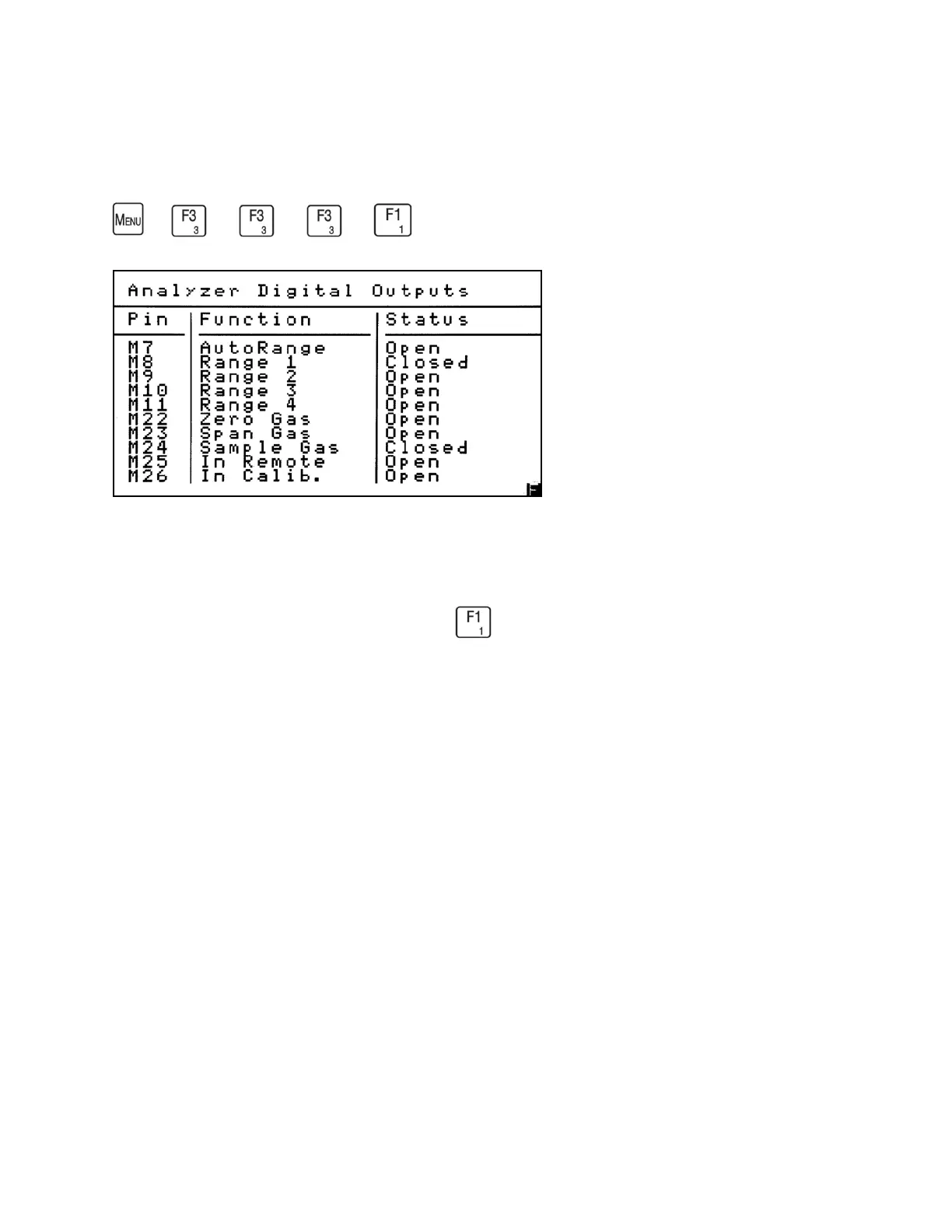

The Analyzer Digital Outputs screen allows the operator to view the status of an analyzer
output (Open or Closed) and where to find the corresponding pin number. To access the
Analyzer Digital Outputs status screen, press from the I/O Status menu.
The Pin column indicates the connector and the pin number that is used to control the digital
output function. In the example (M7), M is the Main Connector on the analyzer’s back panel,
and 7 is the Pin Number on that connector.
The Status becomes closed when the function is true. In the example above, the analyzer is in
Range 4. Range 4’s status is closed. This will result in a closed contact to digital ground. It can
be measured from the Main Connector Pin 6 (digital ground) to the Main Connector Pin 11.
NOTE: These analyzer functions are not user-changeable and have static pin outs. These screens
are for viewing only.
To Next Page
