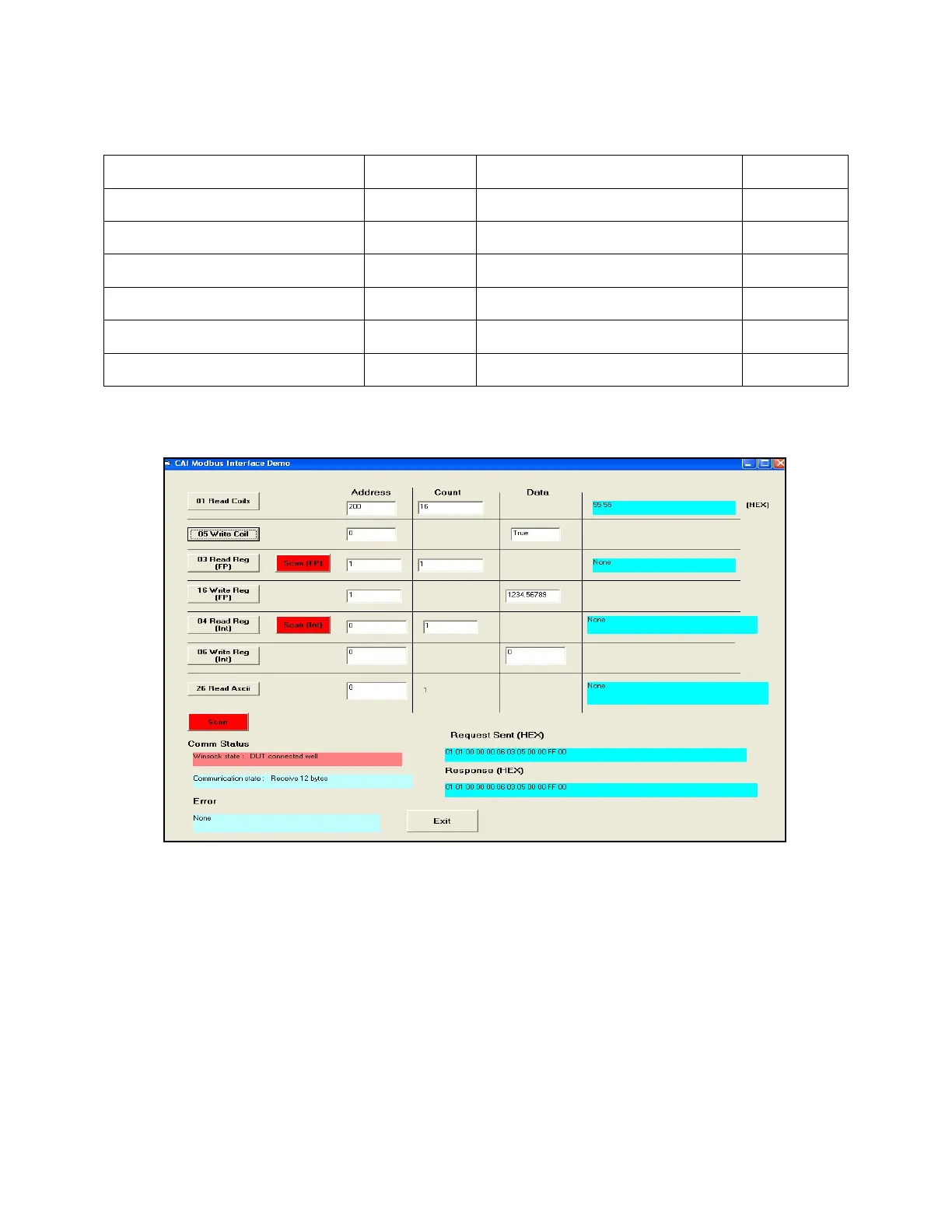

Here is an example of a request to write bit 173 ON:
Request
Response
Field Name
(Hex)
Field Name
(Hex)
Function
05
Function
05
Output Address Hi
00
Output Address Hi
00
Output Address Lo
AC
Output Address Lo
AC
Output Value Hi
FF
Output Value Hi
FF
Output Value Lo
00
Output Value Lo
00
Command 05, Write a single-bit value (true) to Address 0.
