CAI 700M - Page 193

700M HFID 6-2-15
193

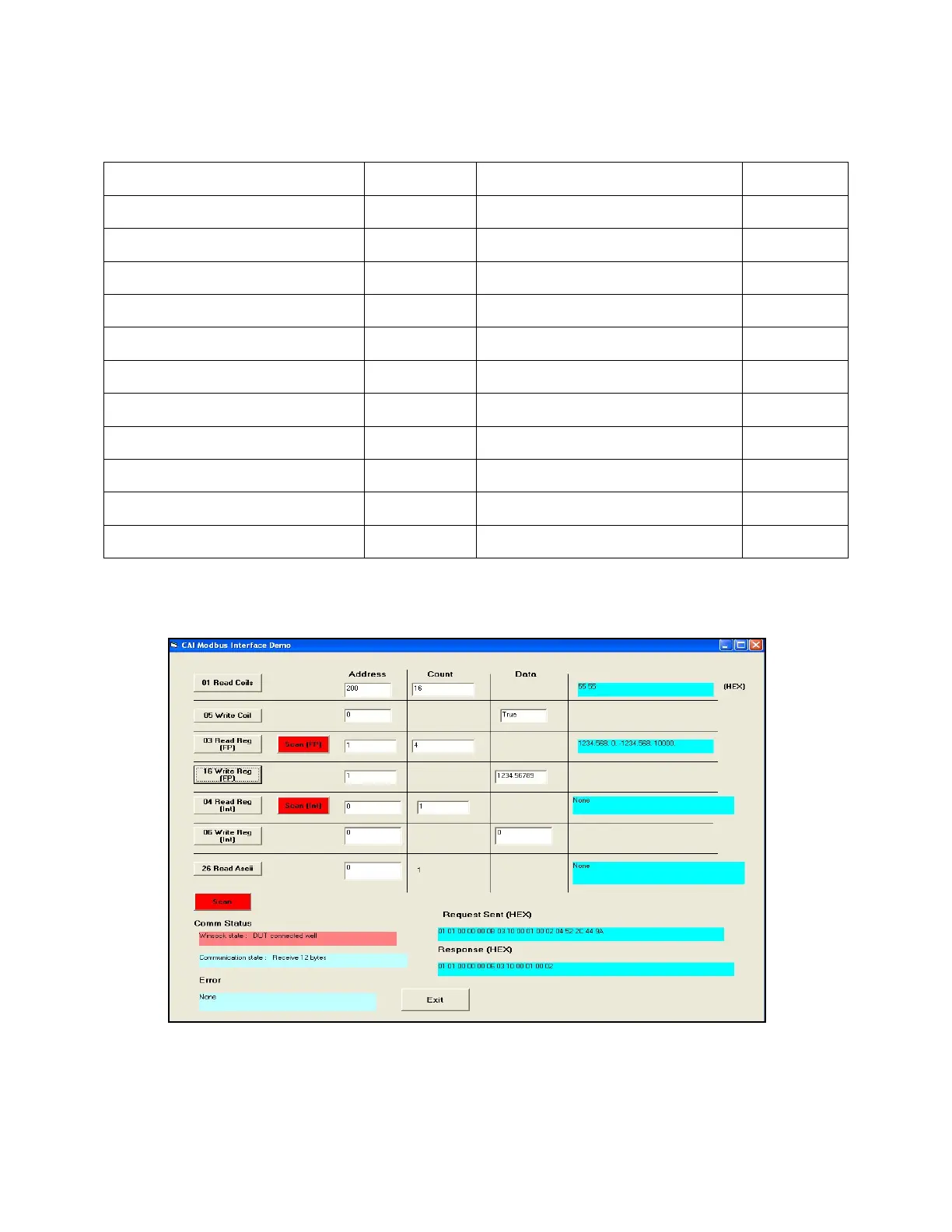

Here is an example of a request to write two registers starting at 2 to 00 0A and 01 02 hex:
Request
Response
Field Name
(Hex)
Field Name
(Hex)
Function
10
Function
10
Starting Address Hi
00
Starting Address Hi
00
Starting Address Lo
01
Starting Address Lo
01
Quantity of Registers Hi
00
Quantity of Registers Hi
00
Quantity of Registers Lo
02
Quantity of Registers Lo
02
Byte Count
04
Registers Value Hi
00
Registers Value Lo
0A
Registers Value Hi
01
Registers Value Lo
02
Command 16, Write one floating point register.
