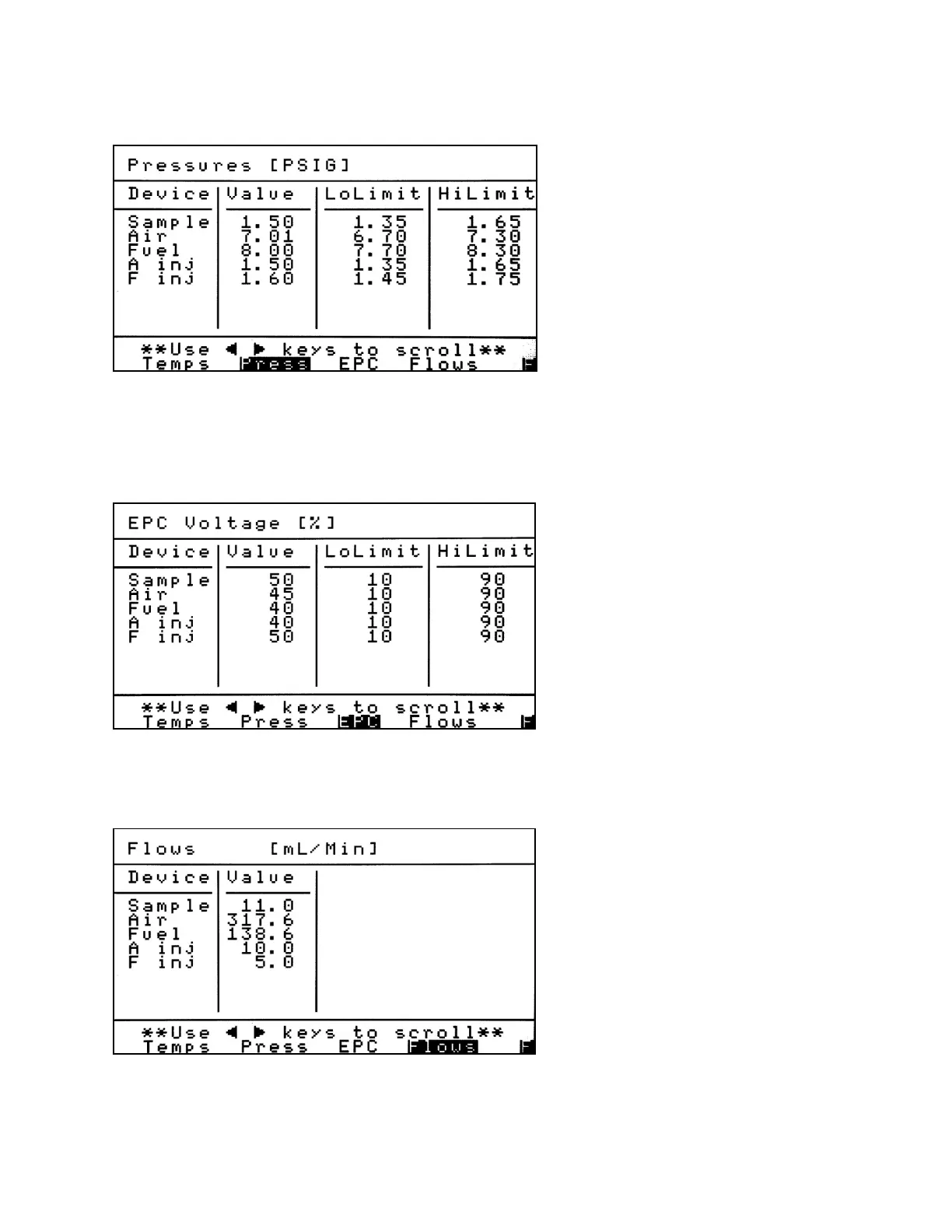

Pressures Screen
The Pressures screen displays current sample and air pressures and low and high alarm limits in
PSIG.
EPC Voltage Percent Screen
The EPC screen displays the percentage of EPC voltage being supplied to the EPC valve.
Flows Screen
The Flows screen displays the current flow of sample and air in mL/minute. It does not include
an alarm function because flows are calculated values based on the pressures.
