Canon imagePROGRAF iPF810 User Manual

Optional accessories

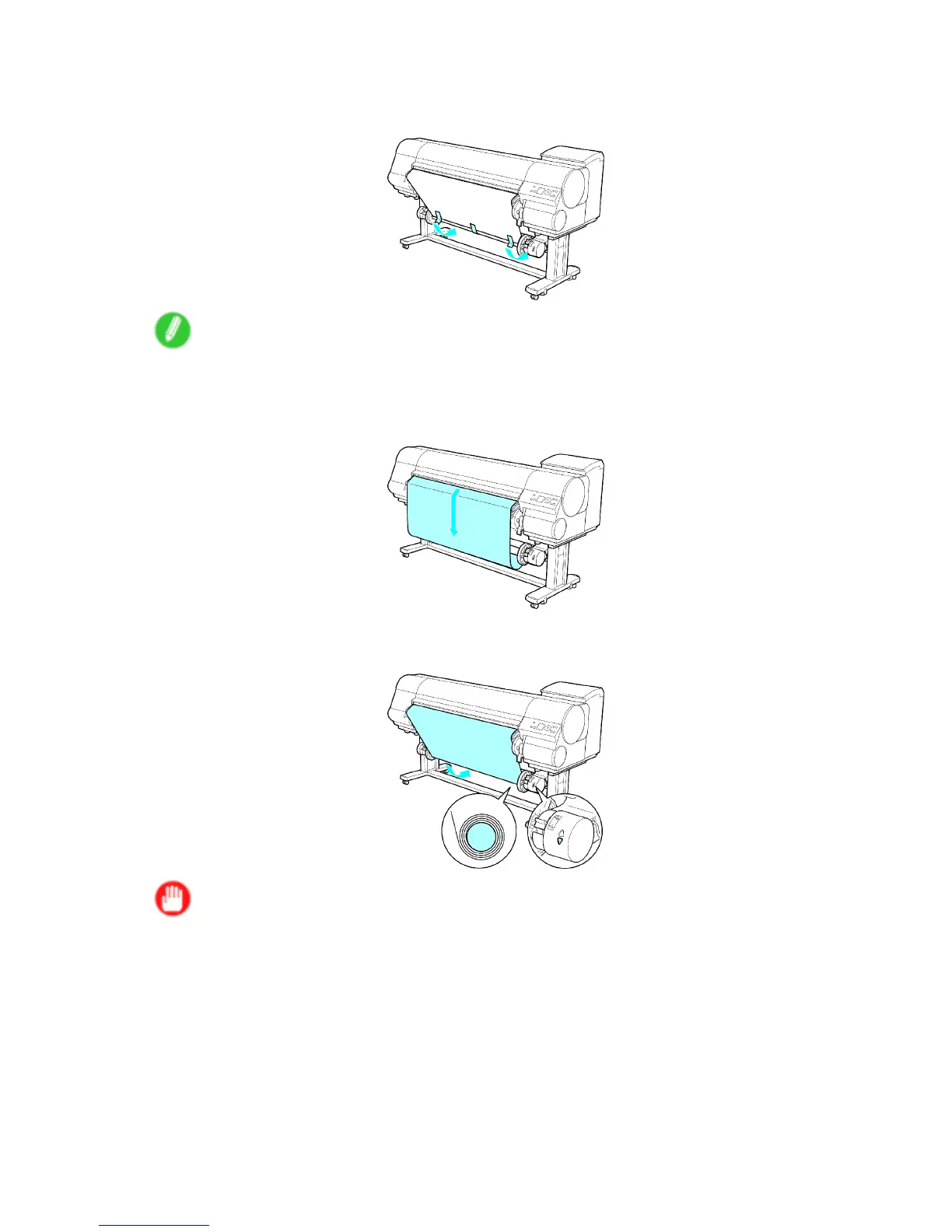

13. Making sure the roll paper is not slack, tape the left and right side of the leading edge to the
paper core.
Note
• When rewinding heavyweight paper , use strong adhesive tape to fasten it.
14. Press the Online button to bring the printer of ine, and then press ▼ on the Control Panel to
loosen the tension of the roll.
15. On the Right Media T ake-up Unit , pull the Rewind Mode Switch forward to turn it on. Press the
▼ button on the Media T ake-up Unit to rewind the roll so that it is nearly taut.
Important
• Rewind the paper so that the paper core makes at least two revolutions. If the paper is not rewound
two full revolutions, repeat steps 14 and 15.
• Do not manually force the Rewind Spool or paper core to rotate them. This may damage them. T o
rewind or unwind rolls, press ▲ or ▼ on the Media T ake-up Unit .
Printer Parts 89

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
