Canon imagePROGRAF iPF810 User Manual

Handling rolls

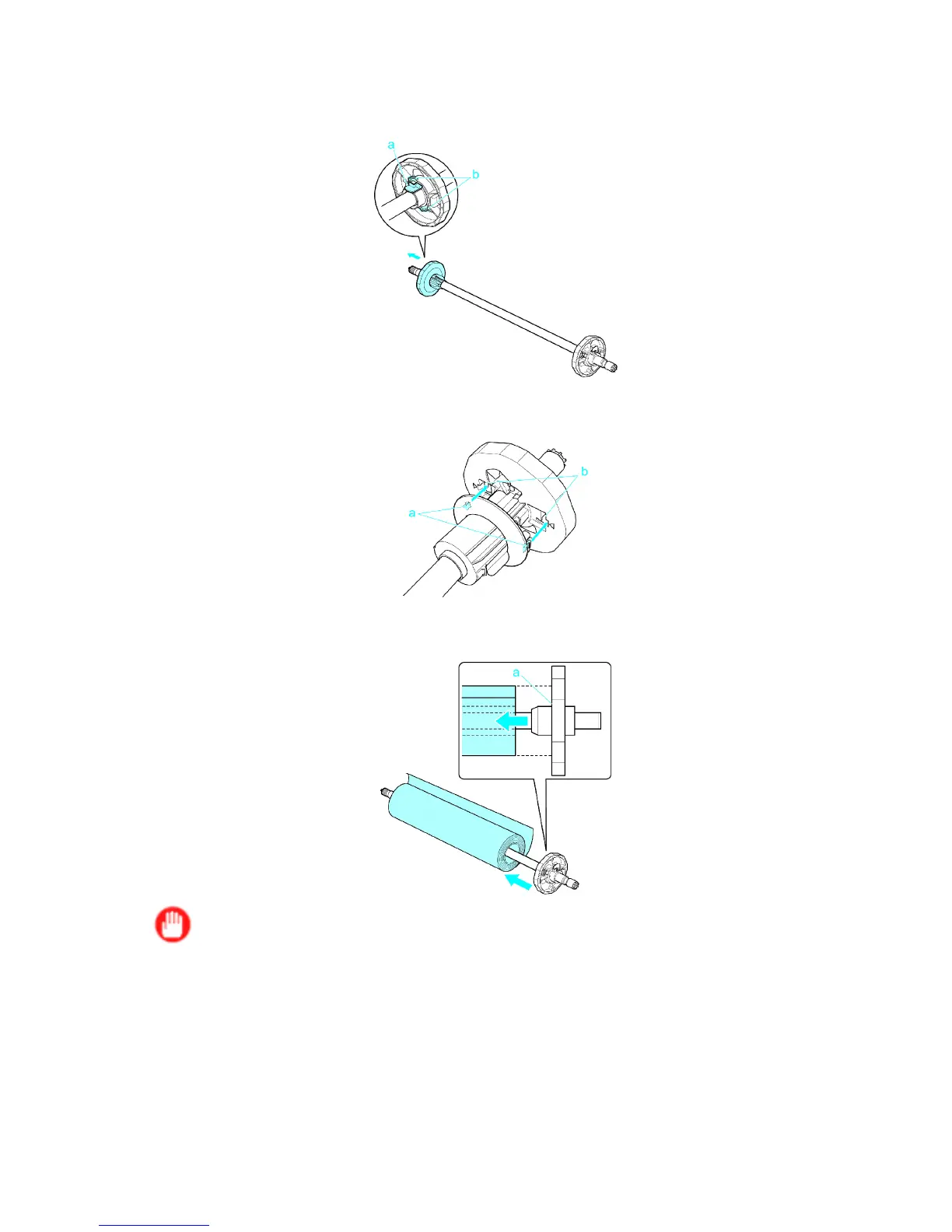

1. Lift the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at
the position indicated (b), remove it from the Roll Holder .
2. When using a 3-inch paper core, align the tips (a) of 3-Inch Paper Core Attachment #1 with the
holes (b) of the Roll Holder and insert it rmly .
3. With the edge of the roll paper facing forward as shown, insert the Roll Holder from the right of
the roll. Insert it rmly until the roll touches the ange (a) of the Roll Holder .
Important
• Insert it rmly so that there is no gap between the roll and the ange of the Roll Holder . If there is a
gap, it may cause feeding problems.
• When loading a roll, be careful to avoid hitting the printer hard with the roll. This may damage
the Roll Holder .
Handling Paper 137

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
