Handling rolls

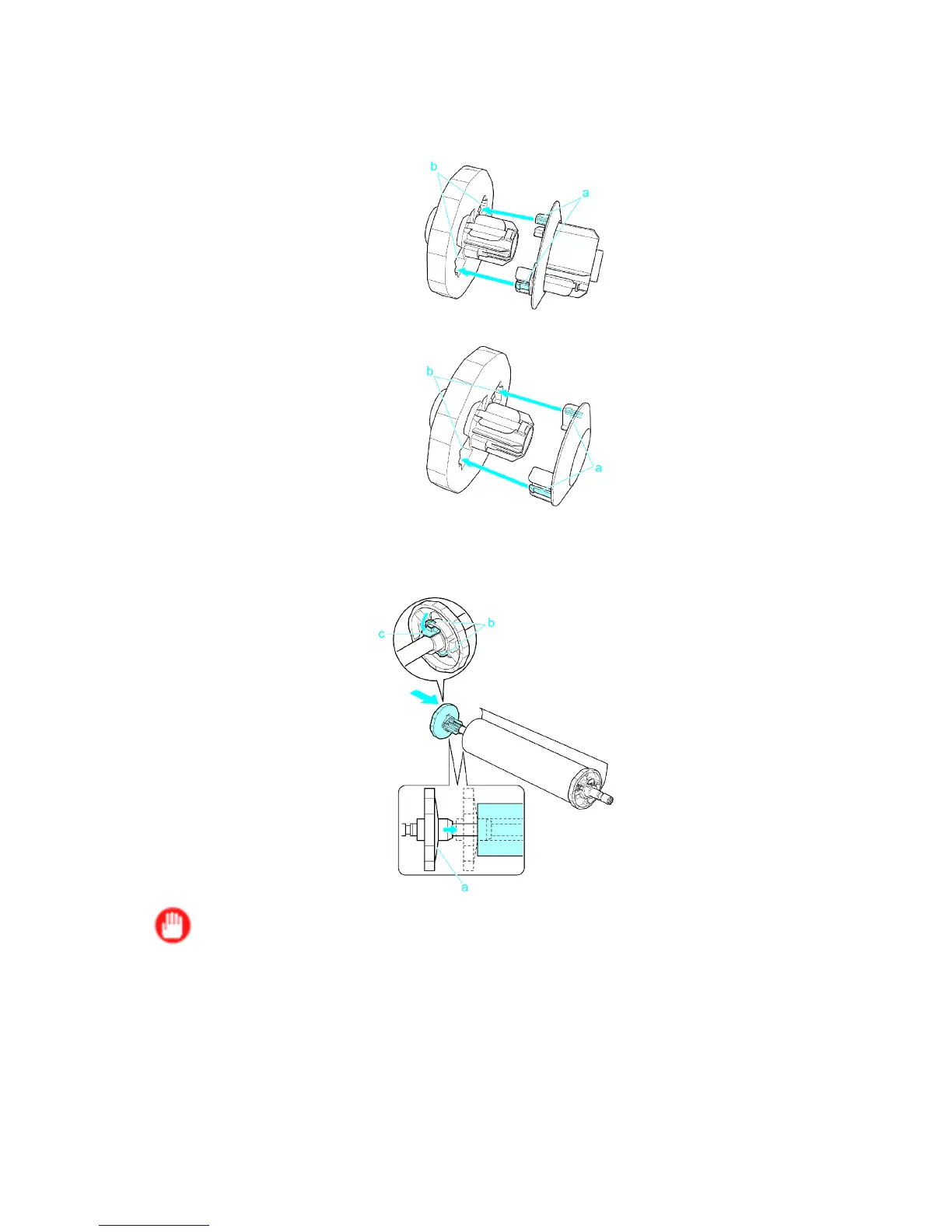

4. Insert the attachments for the roll paper core on the Holder Stopper .
Align the tips (a) of the attachment with the holes (b) of the Holder Stopper and insert it rmly .
3-Inch Paper Core Attachment #2
2-Inch Paper Core Attachment
5. Insert the Holder Stopper from the left in the Roll Holder as shown. Holding it at the position
shown (b), push it rmly in until the ange (a) of the Holder Stopper touches the roll. Lock the
Holder Stopper lever (c) by pushing it down toward the shaft side.
Important
Insert the Holder Stopper rmly onto the roll. Otherwise, it may cause feeding problems.
138 Handling Paper
