Handling rolls

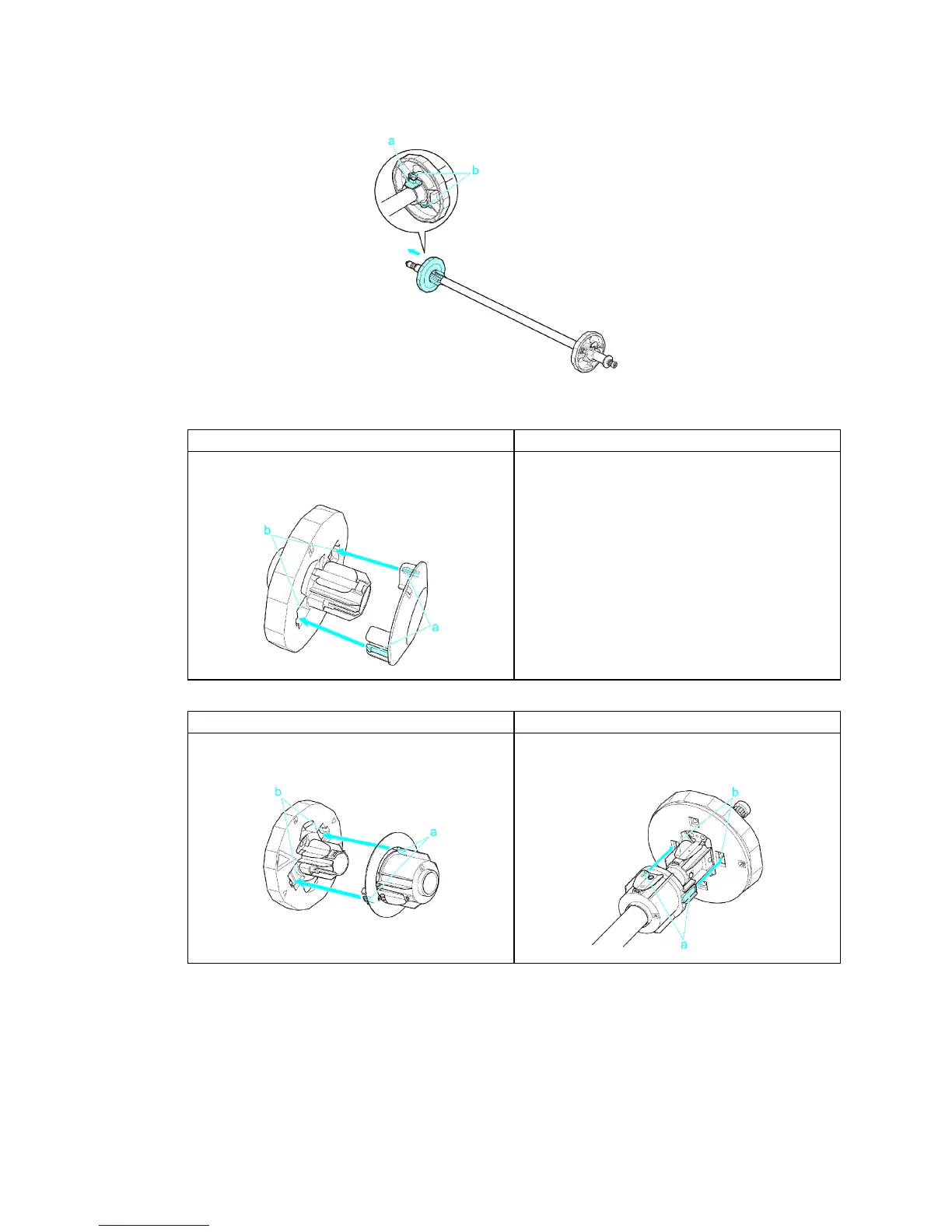

1. Lift the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at
the position indicated (b), remove it from the Roll Holder .
2. Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper .
• Using rolls with a 2-inch paper core
Holder Stopper (Left Side) Roll Holder (Right Side)
Align the tips (a) of the 2-Inch Paper Core
Attachment with the holes (b) of the Holder
Stopper and insert it rmly .
No attachment is needed.
• Using rolls with a 3-inch paper core
Holder Stopper (Left Side) Roll Holder (Right Side)
Align the tips (a) of the 3-Inch Paper Core
Attachment L with the holes (b) of the Holder
Stopper and insert it rmly .
Align the tips (a) of 3-Inch Paper Core
Attachment R with the holes (b) of the Roll
Holder and insert it rmly .
