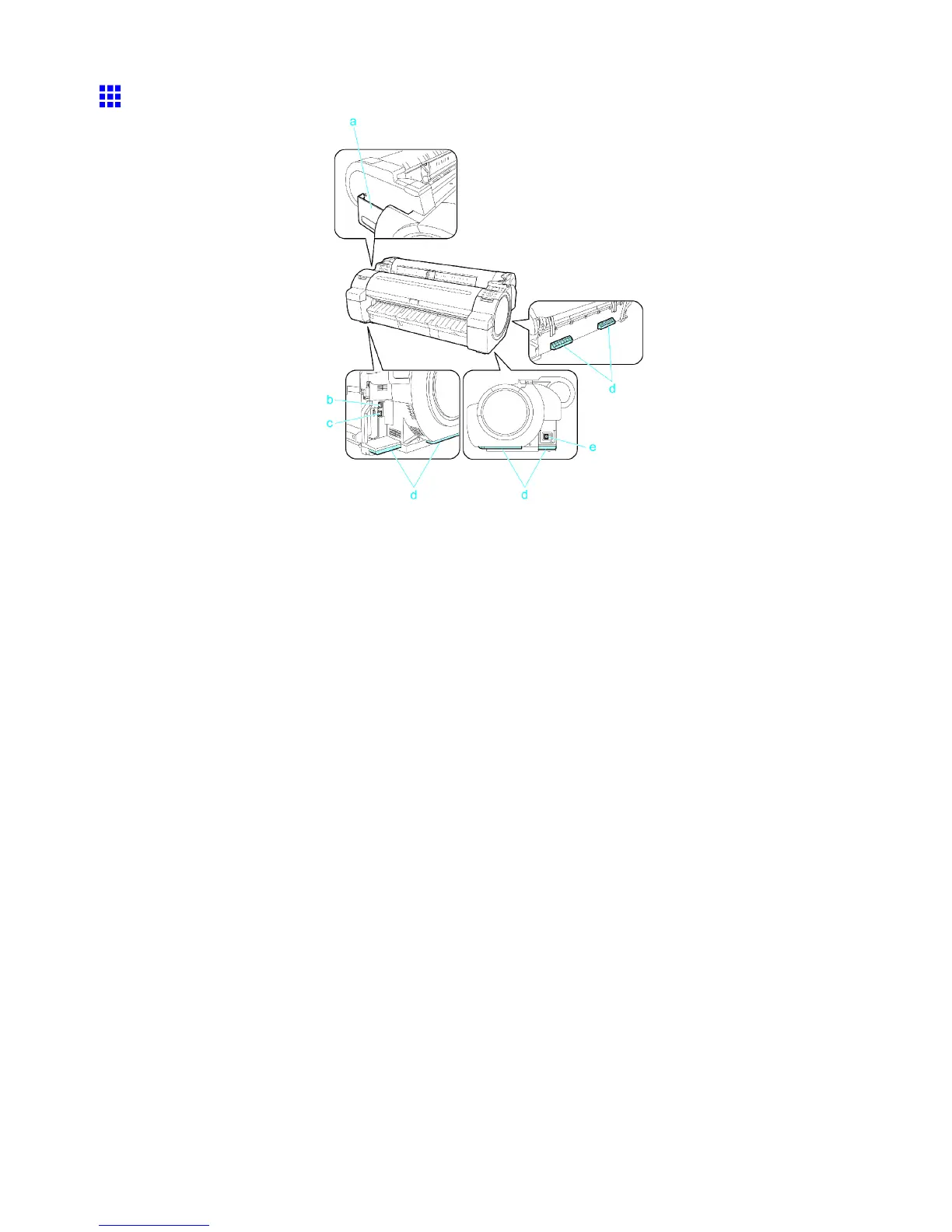

Printer parts
Side
a. Manual Pocket
Store printer manuals in this pocket.
b. Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly
and communication is possible between the computer and printer .
c. USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
d. Carrying Handles
When carrying the printer , have three people hold it by these handles on the back at both ends.
e. Power Supply Connector
Connect the power cord to this connector .
Printer Parts 15
