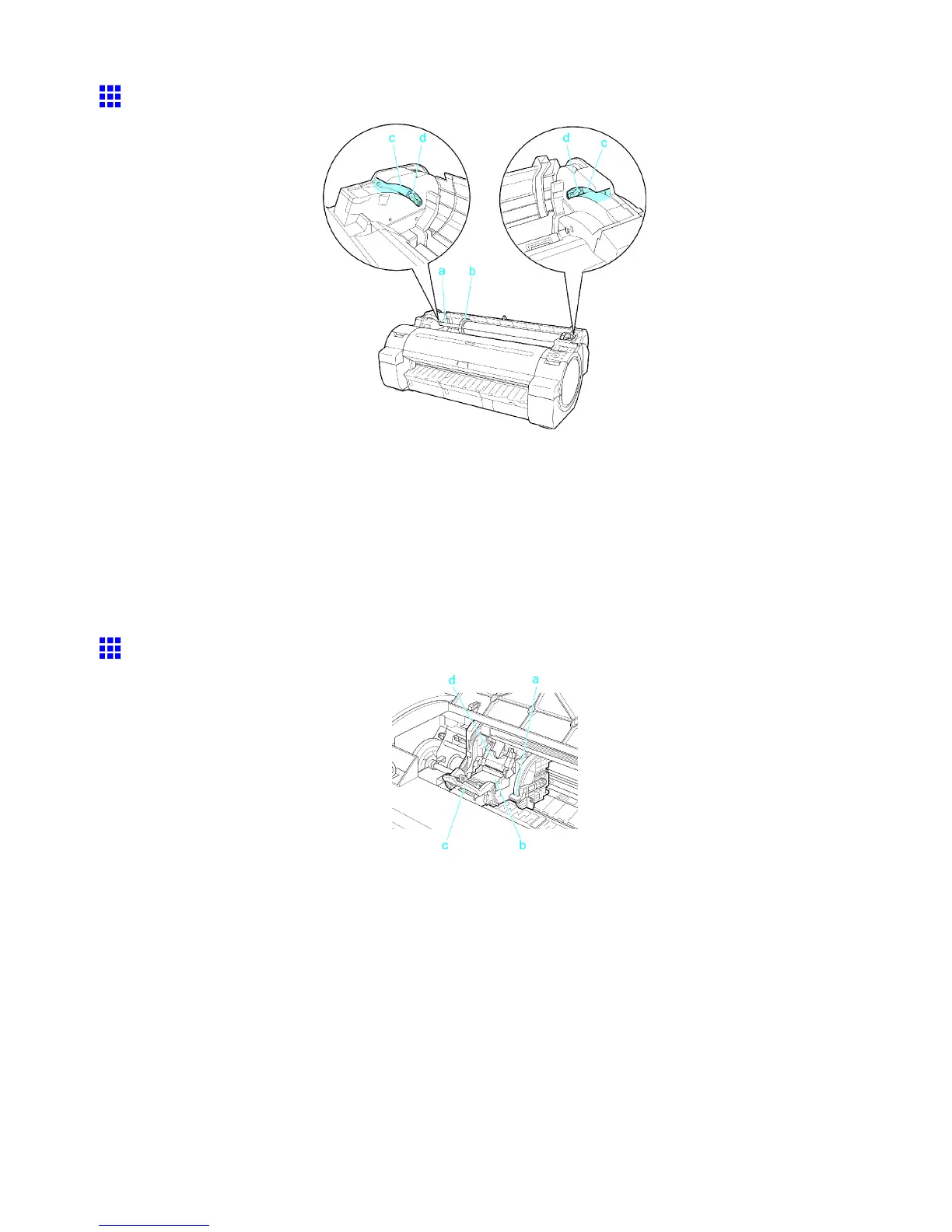

Printer parts
Roll Cover (Inside)
a. Roll Holder
Load the roll on this holder .
b. Holder Stopper
Secure rolls on the Roll Holder with this part.
c. Roll Loading Slots
Slide the Roll Holder along these slots.
d. Roll Holder Slot
Load the Roll Holder into this holder slot.
Carriage
a. Angle Adjustment Lever
Use this lever to ne-tune the printer to correct misalignment of printed lines.
b. Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c. Printhead Fixer Lever
Locks the Printhead Fixer Cover .
d. Printhead Fixer Cover
Holds the Printhead in place.
Printer Parts 17

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon iPF650 - imagePROGRAF Color Inkjet Printer and is the answer not in the manual?

Canon iPF650 - imagePROGRAF Color Inkjet Printer Specifications

General IconGeneral
Printer TypeLarge Format Printer
Print TechnologyInkjet
Maximum Print Resolution2400 x 1200 dpi
Number of Ink Colors5
Number of Nozzles15, 360
Ink Cartridge Capacity130 ml
Media Thickness0.07 - 0.8 mm
Memory256 MB
Operating SystemsWindows, Mac OS
Print Speed (Color)Approx. 1.5 minutes (A1)
Print Speed (Black & White)Approx. 1.5 minutes (A1)
Ink ColorsCyan, Magenta, Yellow, Black, Matte Black
Ink CartridgesPFI-102
Media SizeA4, A3, A2, A1
Media Width24 inches
Media SizesA1, A2, A3, A4, B1, B2, B3, B4, 24", 36", 44"
Media TypesPlain Paper, Coated Paper, Fine Art Paper
Media HandlingRoll Feed, Manual Feed
ConnectivityUSB, Ethernet
InterfaceUSB 2.0, Ethernet
Weight46 kg
Weight (Approx.)46 kg
