Printer parts

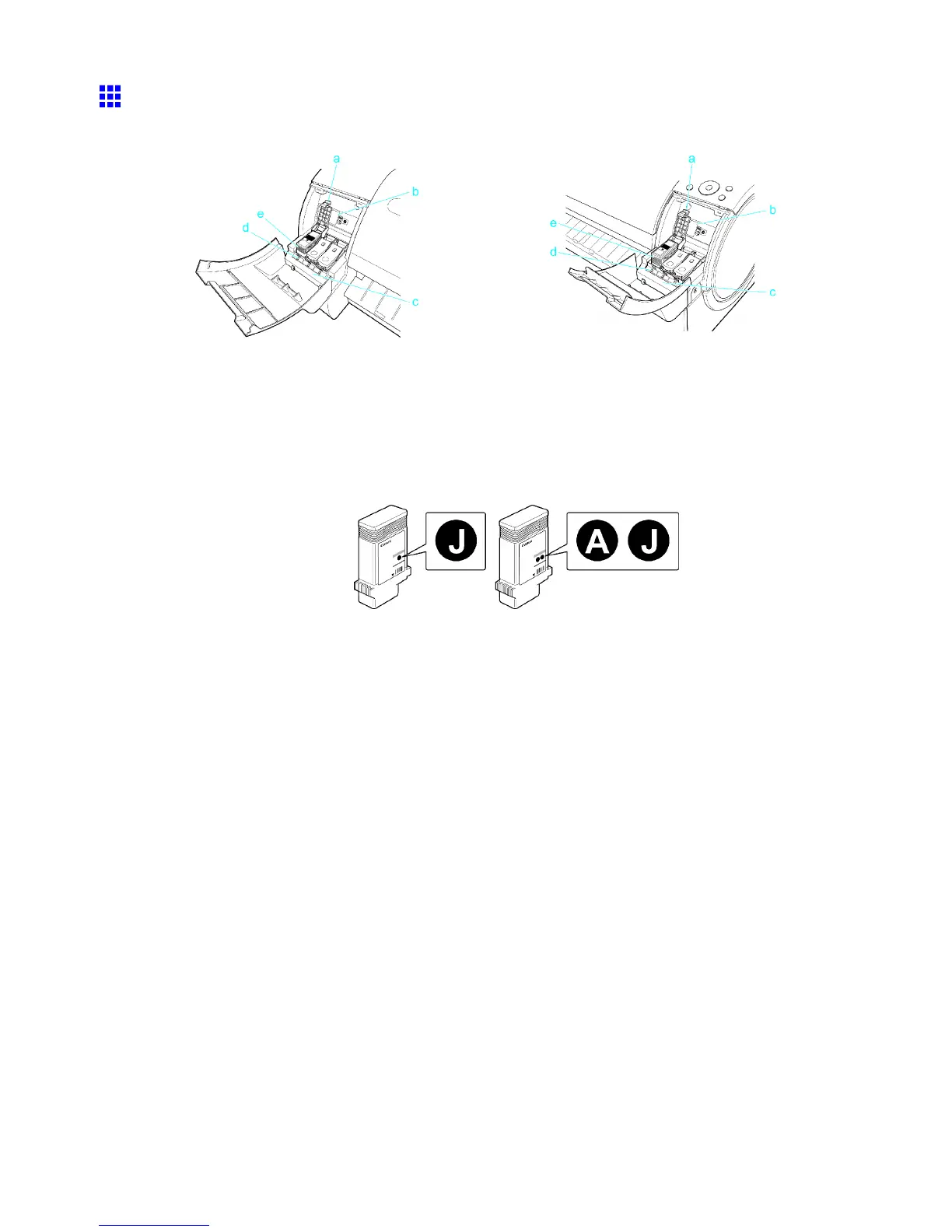

Ink T ank Cover (Inside)
Left Side
Right Side
a. Ink T ank Lock Lever
A lever that locks the Ink T ank in place and protects it. Lift and press down
the lever when replacing an Ink T ank .
b. Ink Set Label
An Ink T ank that can be used in the printer is labeled with a white letter “J” in a black circle on the
side. When purchasing an Ink T ank , make sure a “J” is printed on the label. ( → P .622)
c. Ink Color Label
Load an Ink T ank that matches the color and name on this label.
d. Ink Lamp (Red)
Indicates the state of the Ink T ank as follows when the Ink T ank Cover is opened.
• On
The Ink T ank is installed correctly .
• Of f
No Ink T ank is installed, or the ink level detection function has been released.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
There is no ink left.
e. Ink T ank
Cartridges of ink in various colors.
