Handling rolls

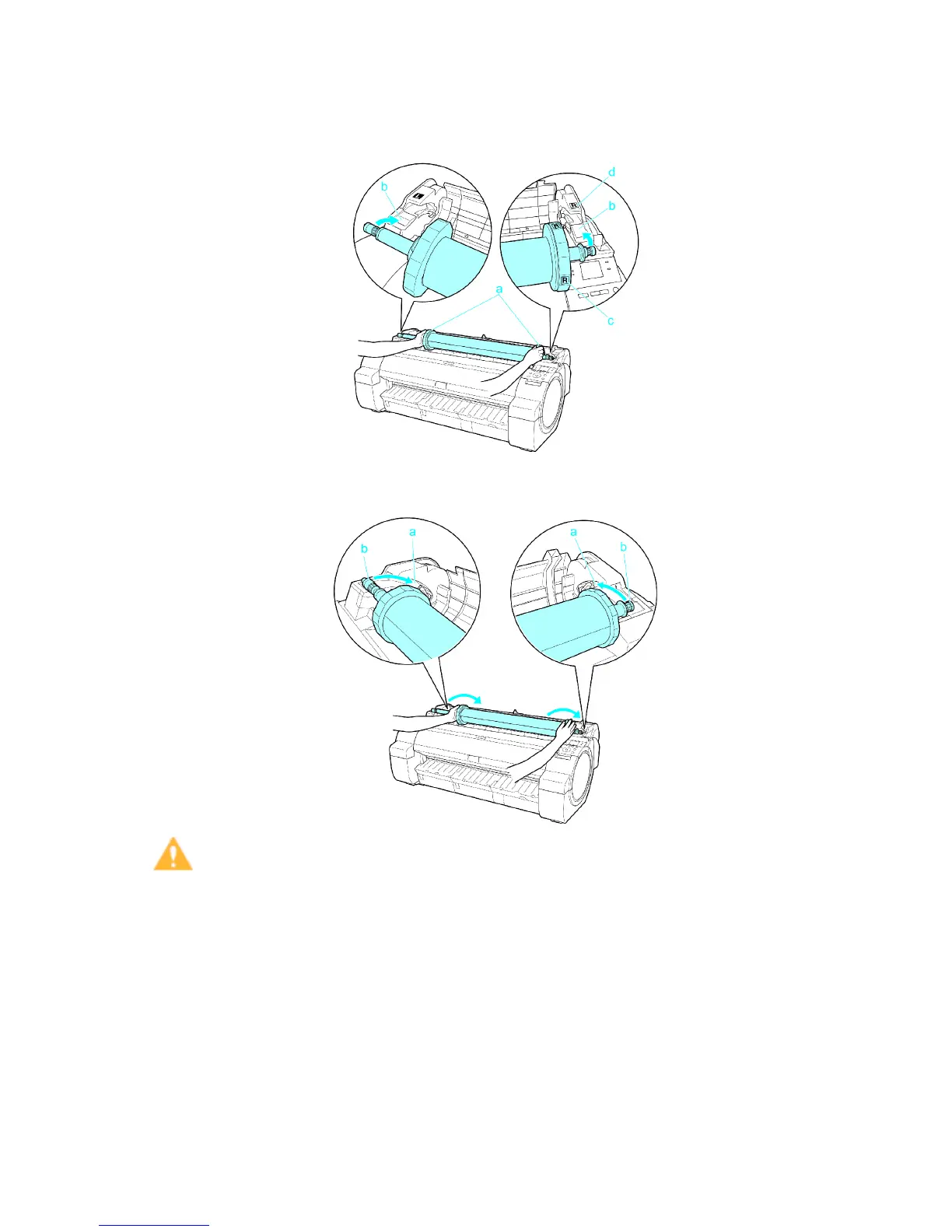

4. Holding the Roll Holder ange (a), rest the Roll Holder shaft on the Roll Ledge (b).
At this time, position the holder so that the “R” label (c) on the Roll Holder ange is aligned
with the “R” label (d) on the printer .
5. Holding the Roll Holder ange (a), guide the holder along the Roll Loading Slots (b) on both
ends, keeping the holder level as you load it in the Roll Holder Slot .
Caution
• Do not force the Roll Holder into the printer with the right and left ends reversed. This may damage
the printer and Roll Holder .
• Do not release the anges until the holder is loaded in the Roll Holder Slot .
• Be careful not to pinch your ngers between the Roll Loading Slots (b) and the Roll Holder shaft
(c) when loading rolls.
Handling Paper 107
